Pads, Sheets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Usage | Type | Shape | Outline | Thickness | Material | Adhesive | Backing, Carrier | Color | Thermal Resistivity | Thermal Conductivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5550H-05-240-5THERM PAD 5M X 240MM GRY/WHT |
2,766 |
|
Datasheet | 5550H | Bulk | Active | Thermally Conductive | Interface Pad, Roll | Rectangular | 5.00m x 240.00mm | 0.0197" (0.500mm) | Acrylic Elastomer | Tacky - Both Sides | Polyethylene-Terephthalate (PET) | Gray, White | - | 3.0W/m-K |
|
|
8805-1-36THERM PAD 32.92M X 25.4MM W/ADH |
2,833 |
|
Datasheet | 8805 | Bulk | Active | - | Transfer Tape, Roll | Rectangular | 32.92m x 25.40mm | 0.0049" (0.125mm) | Acrylic | Adhesive - Both Sides | Polyester | White | - | 0.6W/m-K |
|
|
5550H-10-240-5THERM PAD 5M X 240MM GRY/WHT |
3,280 |
|
Datasheet | 5550H | Bulk | Active | Thermally Conductive | Interface Pad, Roll | Rectangular | 5.00m x 240.00mm | 0.0394" (1.000mm) | Acrylic Elastomer | Tacky - Both Sides | Polyethylene-Terephthalate (PET) | Gray, White | - | 3.0W/m-K |
|
3M 8711-125 12"X5YDTHERM PAD 4.57M X 304.8MM W/ADH |
2,870 |
|
Datasheet | 8711 | Bulk | Active | Thermally Conductive | Transfer Tape, Roll | Rectangular | 4.57m x 304.80mm | 0.0049" (0.125mm) | Acrylic | Adhesive - Both Sides | Polyethylene-Terephthalate (PET) | White | - | 0.6W/m-K |
|
|
9876-15-3-10THERM TAPE 10M X 76.2MM W/ADH |
3,557 |
|
Datasheet | 9876 | Bulk | Active | Thermally Conductive | Heat Spreading Tape, Roll | Rectangular | 10.00m x 76.20mm | 0.0059" (0.151mm) | Copper | Adhesive - One Side | Acrylic Tape | Copper | - | - |
|
|
8805SQ-10(500)THERM PAD 10MMX10MM W/ADH 500/PK |
4,869 |
|
Datasheet | 8805 | Box | Active | - | Transfer Tape | Square | 10.00mm x 10.00mm | 0.0049" (0.125mm) | Acrylic | Adhesive - Both Sides | Polyester | White | - | 0.6W/m-K |
|
|
8805 SHAPE-0.80"THERM PAD 20.32MMX20.32MM W/ADH |
2,579 |
|
Datasheet | 8805 | Bulk | Active | Thermally Conductive | Transfer Tape | Square | 20.32mm x 20.32mm | 0.0050" (0.127mm) | Acrylic | Adhesive - Both Sides | - | White | - | 0.6W/m-K |
|
8810-TO220THERM PAD W/ADH WHT |
4,883 |
|
Datasheet | 8810 | Bag | Obsolete | TO-220 | Transfer Tape | Rectangular | - | 0.0098" (0.250mm) | Acrylic | Adhesive - Both Sides | Polyester | White | - | 0.6W/m-K |
|

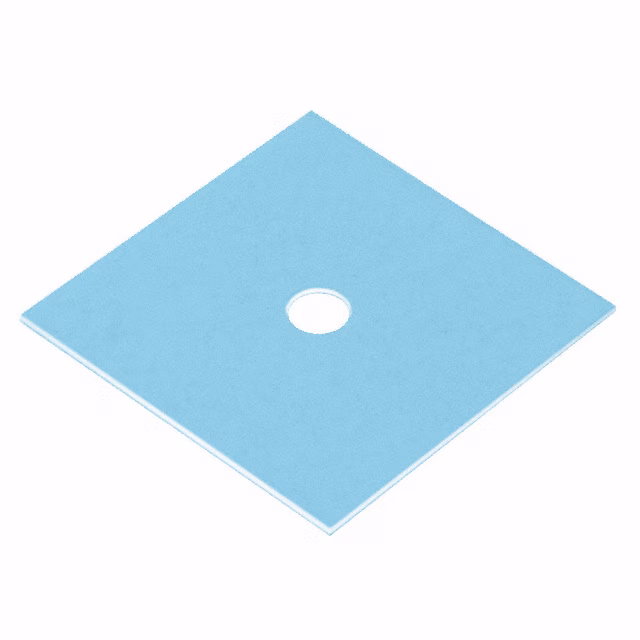

8810-RECTIFIERTHERM PAD W/ADH WHT |
1,945 |
|
Datasheet | 8810 | Bag | Obsolete | Rectifier | Transfer Tape | Rectangular | - | 0.0098" (0.250mm) | Acrylic | Adhesive - Both Sides | Polyester | White | - | 0.6W/m-K |
|

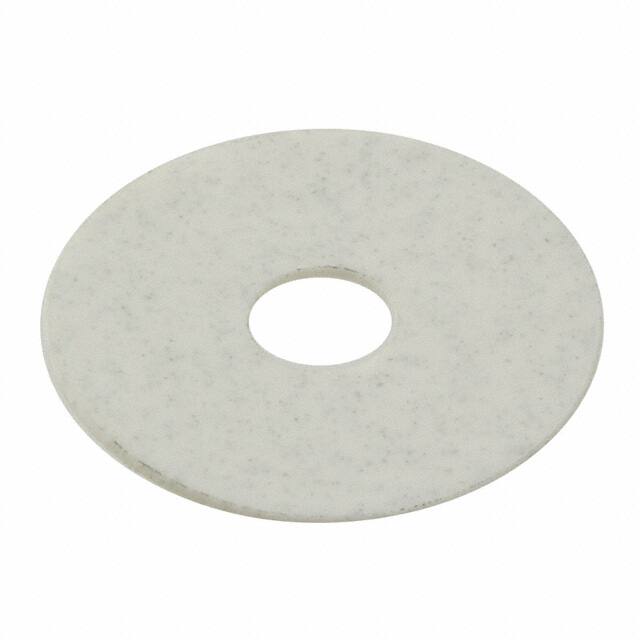

5590H-DO5THERM PAD 25.4MM DIA GRAY |
3,182 |
|
Datasheet | 5590H | Bag | Active | DO-5 | Interface Pad, Sheet | Round | 25.40mm Dia | 0.0197" (0.500mm) | Acrylic Elastomer | Tacky - Both Sides | - | Gray | 0.46°C/W | - |
