Pads, Sheets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Usage | Type | Shape | Outline | Thickness | Material | Adhesive | Backing, Carrier | Color | Thermal Resistivity | Thermal Conductivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

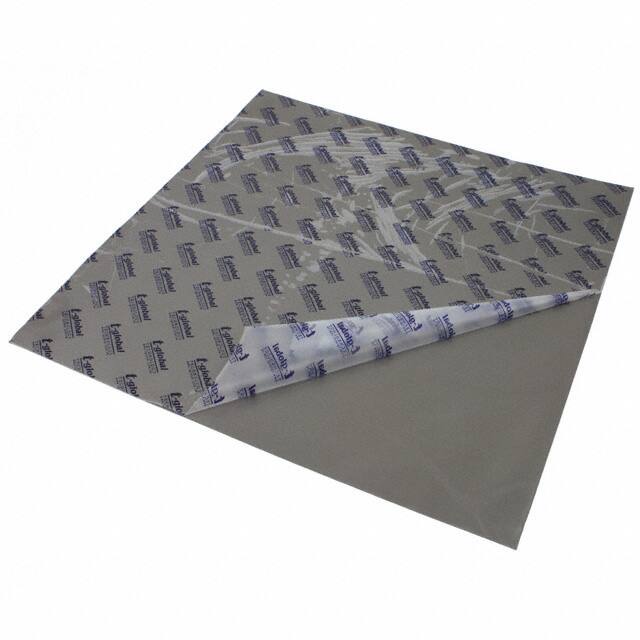

TG-A486C-320-320-0.5-1ATHERM PAD 320X320MM W/ADH GRAY |
1,322 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.0197" (0.500mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|

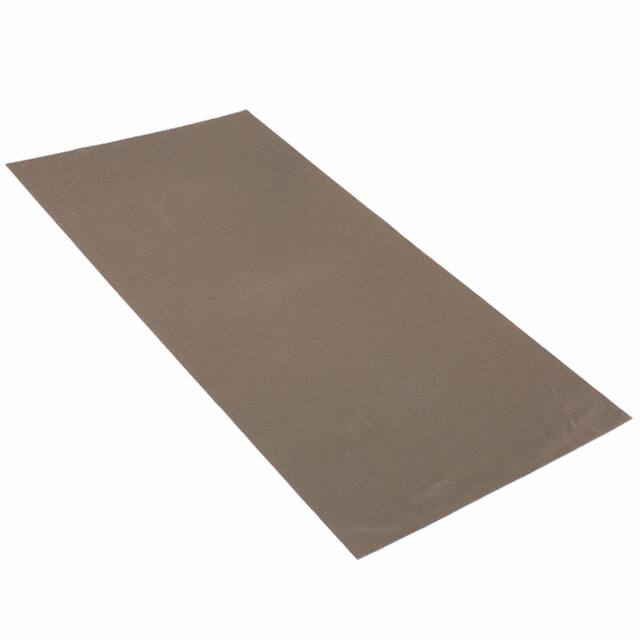

TG-A486C-640-320-0.5-0THERM PAD 640X320MM GRAY |
1,893 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Rectangular | 640.00mm x 320.00mm | 0.0197" (0.500mm) | Silicone Elastomer | - | - | Gray | - | 3.2W/m-K |
|
TG-A486C-640-320-0.5-1ATHERM PAD 640MMX320MM W/ADH GRAY |
4,497 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Rectangular | 640.00mm x 320.00mm | 0.0197" (0.500mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|
TG-A486C-150-150-1.0-1ATHERM PAD 150MMX150MM W/ADH GRAY |
3,808 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.0394" (1.000mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|
TG-A486C-150-150-5.0-1ATHERM PAD 150MMX150MM W/ADH GRAY |
4,551 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.197" (5.00mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|

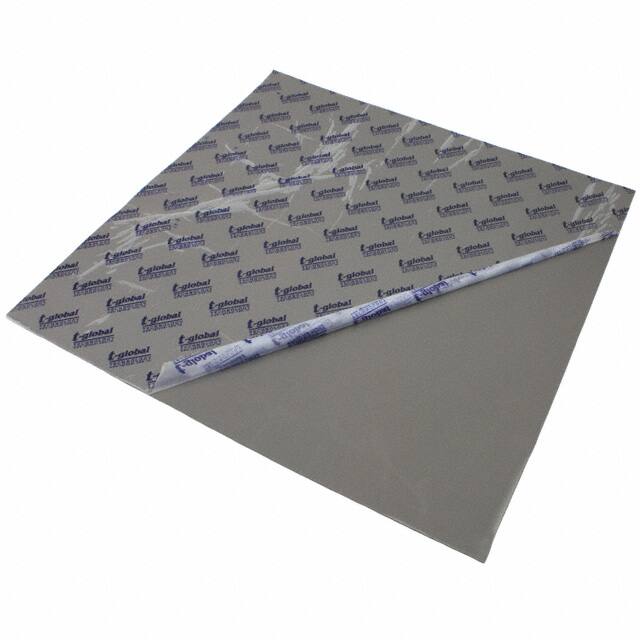

TG-A486C-320-320-1.0-0THERM PAD 320X320MM GRAY |
2,330 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.0394" (1.000mm) | Silicone Elastomer | - | - | Gray | - | 3.2W/m-K |
|

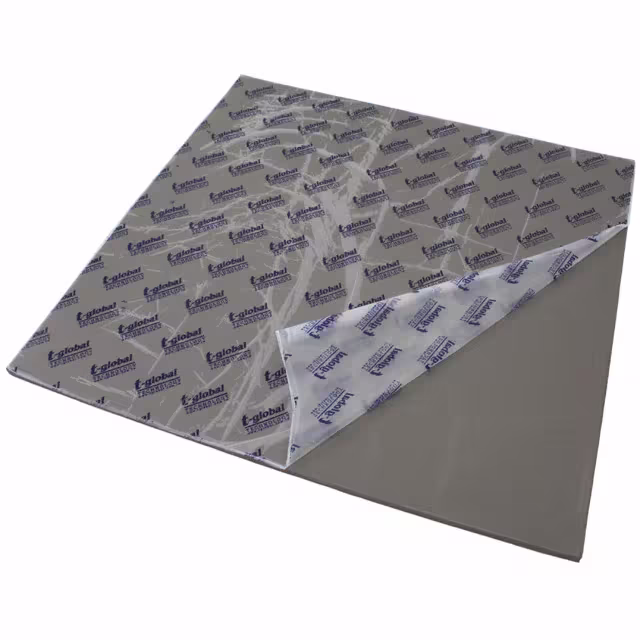

TG-A486C-320-320-5.0-0THERM PAD 320X320MM GRAY |
4,998 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.197" (5.00mm) | Silicone Elastomer | - | - | Gray | - | 3.2W/m-K |
|
TG-A486C-320-320-1.0-1ATHERM PAD 320X320MM W/ADH GRAY |
1,001 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.0394" (1.000mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|

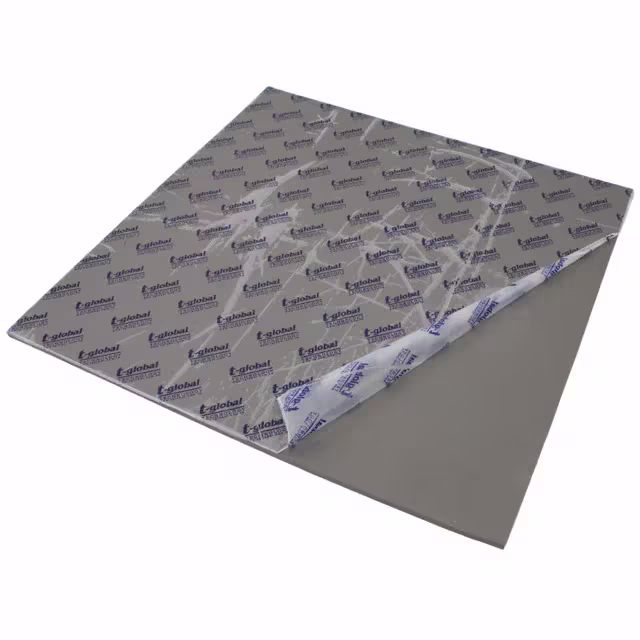

TG-A486C-320-320-5.0-1ATHERM PAD 320X320MM W/ADH GRAY |
1,010 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.197" (5.00mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|
TG-A486C-640-320-1.0-1ATHERM PAD 640MMX320MM W/ADH GRAY |
1,050 |
|
Datasheet | H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Rectangular | 640.00mm x 320.00mm | 0.0394" (1.000mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
