Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FHS-A090025S43DHA-B STANDARD COOLER |
1,097 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

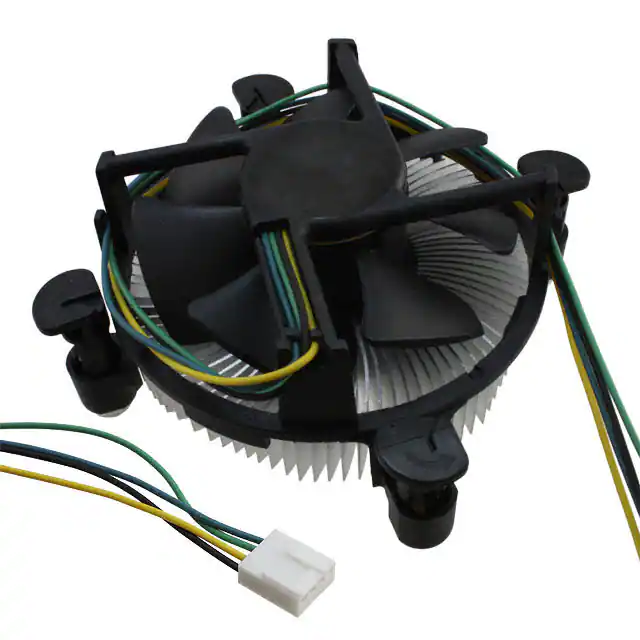

FHS-A9025S19FAN CPU COOLER 90X19.1MM 12VDC |
4,493 |
|
Datasheet | FHS | Bulk | Obsolete | Board Level | Intel LGA1156 CPU Cooler | Bolt On | Round | - | - | 3.657" (92.90mm) OD | 1.811" (46.00mm) | - | - | 0.36°C/W | Aluminum, Copper, Plastic | - |
|

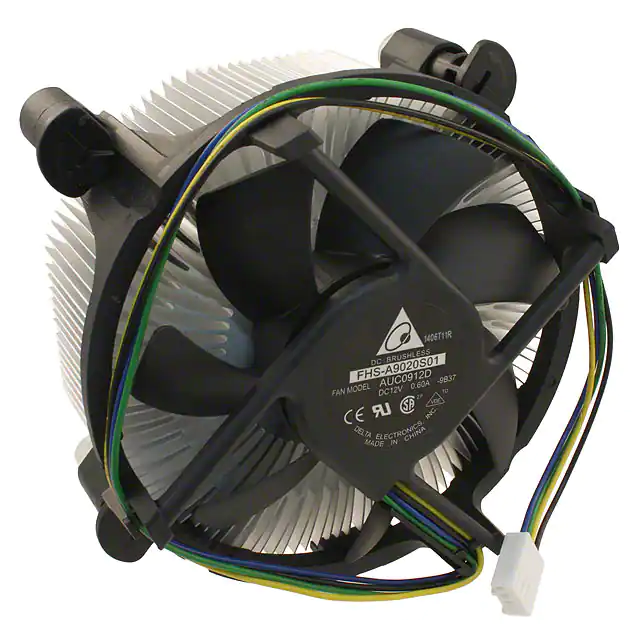

FHS-A9020S01FAN CPU COOLER 100X40MM 12VDC |
2,464 |
|
Datasheet | FHS | Bulk | Obsolete | Board Level | Intel LGA1366 CPU Cooler | Bolt On | Round | - | - | 4.094" (104.00mm) OD | 2.480" (63.00mm) | - | - | 0.25°C/W | Aluminum, Copper, Plastic | - |
|
|
FHS-A090025S42DHA-A STANDARD COOLER |
2,670 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FHS-A6025B00FAN CPU COOLER 90X64MM 12VDC |
3,214 |
|
Datasheet | FHS | Bulk | Obsolete | Board Level | Intel 1366 CPU Cooler | Bolt On | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 2.516" (63.90mm) | - | - | 0.31°C/W | Aluminum, Plastic | - |
|

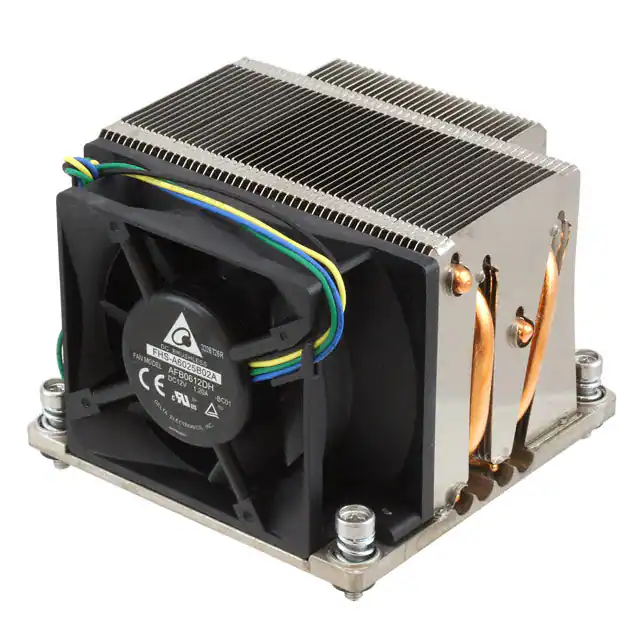

FHS-A6025B02AFAN CPU COOLER 91.5X91.5MM 12VDC |
3,305 |
|
Datasheet | FHS | Box | Obsolete | Board Level | Intel LGA2011 Cooler | Bolt On | Square, Fins | 3.602" (91.50mm) | 3.602" (91.50mm) | - | 2.519" (64.00mm) | - | - | 0.18°C/W | Aluminum, Copper, Plastic | - |
|

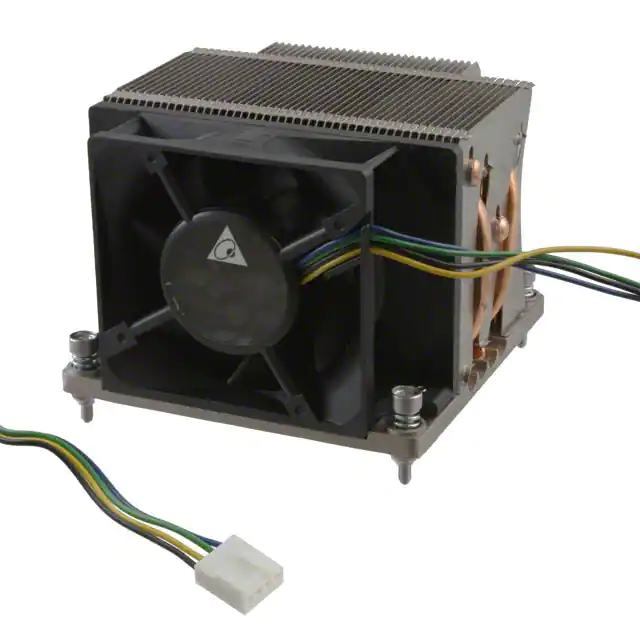

FHS-A6025B01FAN CPU COOLER 90X64MM 12VDC |
4,183 |
|
Datasheet | FHS | Bulk | Obsolete | Board Level | Intel 1366 CPU Cooler | Bolt On | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 2.519" (64.00mm) | - | - | 0.20°C/W | Aluminum, Copper, Plastic | - |
|

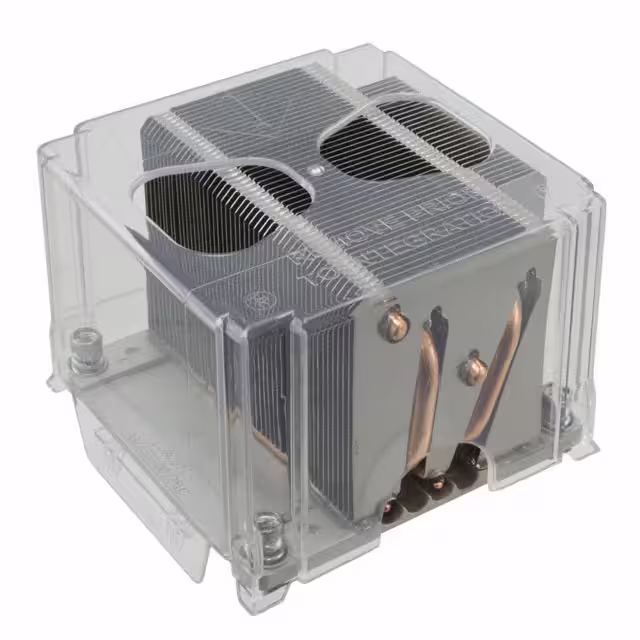

DHS-B9292-05AHEATSINK ASSY INTEL LGA2011 |
1,020 |
|
Datasheet | - | Box | Obsolete | Board Level | LGA | Bolt On | Square, Fins | 3.602" (91.50mm) | 3.602" (91.50mm) | - | 2.519" (64.00mm) | - | - | 0.17°C/W | Aluminum | - |
|

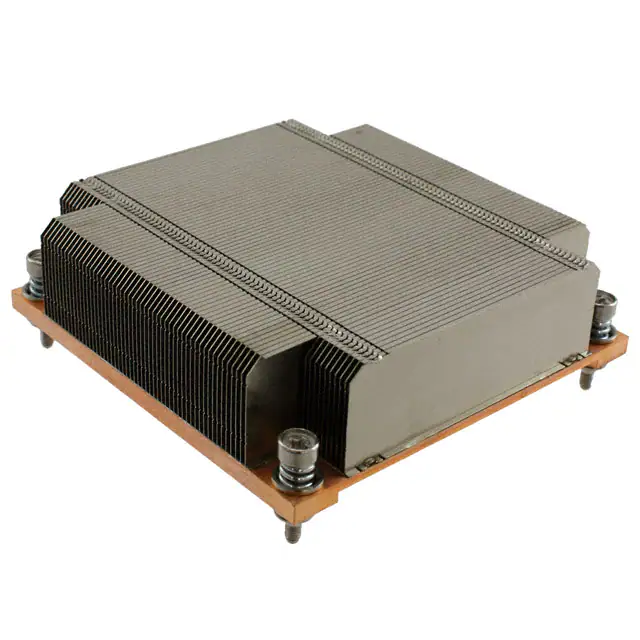

DHS-B9090-44AHEATSINK ASSY INTEL LGA1366 |
4,970 |
|
Datasheet | - | Box | Obsolete | Board Level | LGA | Bolt On | Square | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 1.004" (25.50mm) | - | - | 0.27°C/W | Aluminum | - |
|

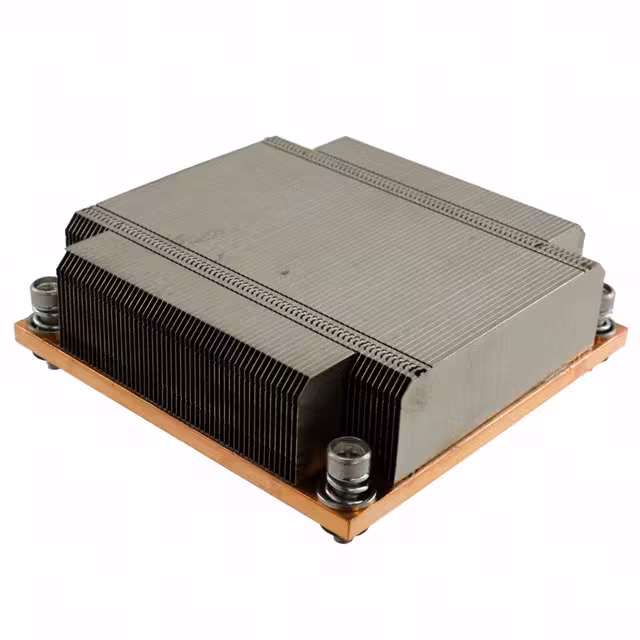

DHS-B9292-04AHEATSINK ASSY INTEL LGA2011 |
4,788 |
|
Datasheet | - | Box | Obsolete | Board Level | LGA | Bolt On | Square, Fins | 3.602" (91.50mm) | 3.602" (91.50mm) | - | 1.004" (25.50mm) | - | - | 0.24°C/W | Aluminum | - |
