Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
512-3MHEATSINK FOR PWR MOD/IGBT/RELAY |
4,824 |
|
Datasheet | 512 | Bulk | Active | Top Mount | Power Modules | Adhesive | Rectangular, Fins | 3.000" (76.20mm) | 7.200" (182.88mm) | - | 2.350" (59.69mm) | - | - | 0.90°C/W | Aluminum | - |
|
|
342945-COPPER SKIVFIN342945,REV03(GP) |
1,726 |
|
- |
- | Bulk | Active | Board Level | BGA, FPGA | Push Pin, Thermal Material | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.551" (14.00mm) | - | - | - | Copper | - |
|
|
342947-COPPER SKIVFIN342947,REV02(GP) |
1,157 |
|
- |
- | Bulk | Active | Board Level | BGA, FPGA | Push Pin, Thermal Material | Rectangular, Fins | 2.323" (59.00mm) | 2.280" (57.91mm) | - | 0.433" (11.00mm) | - | - | - | Copper | - |
|

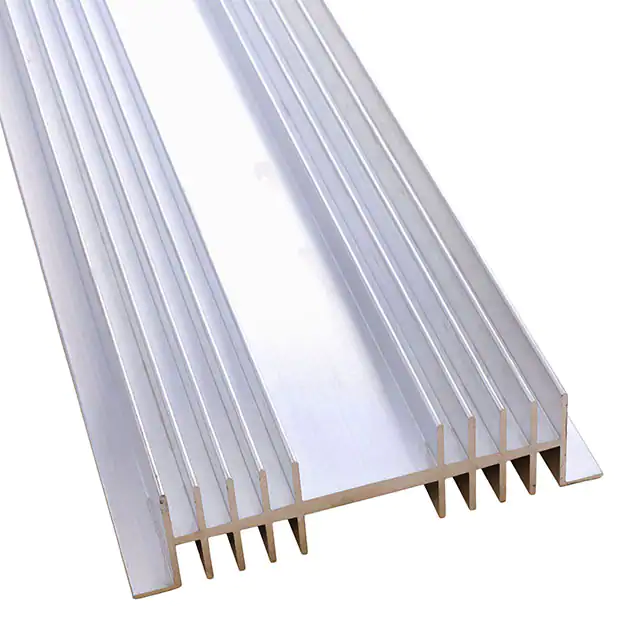

1253805WX36" EXTRUSION 16414 XX7332 |
3,609 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 5.000" (127.00mm) | - | 1.500" (38.10mm) | - | - | 0.63°C/W | Aluminum | - |
|
|
342943-COPPER SKIVFIN342943 |
1,572 |
|
- |
- | Bulk | Active | Board Level | BGA, FPGA | Push Pin, Thermal Material | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.551" (14.00mm) | - | - | - | Copper | - |
|
HSF-48-19-Y-FFANSINK 5VDC 47.5X47.5X18.5MM |
1,303 |
|
Datasheet | HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.870" (47.50mm) | 1.870" (47.50mm) | - | 0.728" (18.50mm) | - | - | 1.41°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-48-19-B-FFANSINK 5VDC 47.5X47.5X18.5MM |
3,855 |
|
Datasheet | HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.870" (47.50mm) | 1.870" (47.50mm) | - | 0.728" (18.50mm) | - | - | 1.41°C/W | Aluminum Alloy | Black Anodized |
|
KK0729-02TEHEATSPREADER FOR TE0729-02 |
1,802 |
|
Datasheet | TE0729 | Bulk | Obsolete | Heat Spreader | TE0729-02 | Bolt On | Rectangular | 2.992" (76.00mm) | 2.047" (52.00mm) | - | 0.354" (9.00mm) | - | - | - | - | - |
|
1254368.35WX12" EXTRUSION 13668 XX4937 |
4,035 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 8.350" (212.09mm) | - | 2.000" (50.80mm) | - | - | 0.23°C/W | Aluminum | - |
|
1254884.75X36" EXTRUSION 4530 XX1024 |
2,215 |
|
Datasheet | - | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 4.750" (120.65mm) | - | 1.245" (31.62mm) | - | - | 0.50°C/W | Aluminum | - |
|
|
SF4P2U-F004-A01Intel Socket 2011 Series 145W 2U |
4,045 |
|
Datasheet | 2011 | Bulk | Active | Top Mount with Fan | Intel LGA2011 2U Active CPU Cooler | Push Pin | Rectangular, Fins | 3.524" (89.50mm) | 3.524" (89.50mm) | - | 2.519" (64.00mm) | 145.0W @ 25.1°C | - | 0.17°C/W | Aluminum, Copper | - |
|
KK0714-02HEATSPREADER FOR TE0714-02 |
2,460 |
|
- |
TE0714 | Bulk | Discontinued at Digi-Key | Heat Spreader | TE0714-02 | Bolt On | Rectangular | 1.575" (40.00mm) | 1.181" (30.00mm) | - | 0.236" (6.00mm) | - | - | - | - | - |
|
|
1101ATHM,10761A REV --G |
3,195 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SAR365ASX150MMEXTRUDED HEATSINK 216X150MM |
1,342 |
|
Datasheet | 365AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 5.906" (150.00mm) | 8.504" (216.00mm) | - | 3.268" (83.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|
HSF-55-35-B-FFANSINK 12VDC 55X55X35.1MM |
4,671 |
|
Datasheet | HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 2.165" (55.00mm) | 2.165" (55.00mm) | - | 1.303" (33.10mm) | - | - | 0.59°C/W | Aluminum Alloy | Black Anodized |
|
|
476KHEATSINK MED HEXTYPE |
3,597 |
|
Datasheet | 476 | Bulk | Active | Board Level | Stud Mounted Diode | Bolt On | Rectangular, Fins | 6.000" (152.40mm) | 5.000" (127.00mm) | - | 5.000" (127.00mm) | 50.0W @ 25°C | 0.20°C/W @ 500 LFM | 0.50°C/W | Aluminum | Black Anodized |
|
|
HSET875-X-BHEATSINK WITH FAN FOR ET875-X7/ |
3,709 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V4511BPROFILE HEATSINK |
3,399 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSIB903-BGAAC, HEATSINK + FAN FOR IB903F/ I |
3,534 |
|
- |
- | Box | Active | Top Mount | IB903F | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSET875-1HEAT SPREADER FOR ET875-420/335 |
1,544 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
