Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APR40-40-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,871 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 1.283" (32.60mm) | - | 1.65°C/W @ 200 LFM | 7.00°C/W | Aluminum Alloy | Black Anodized |
|

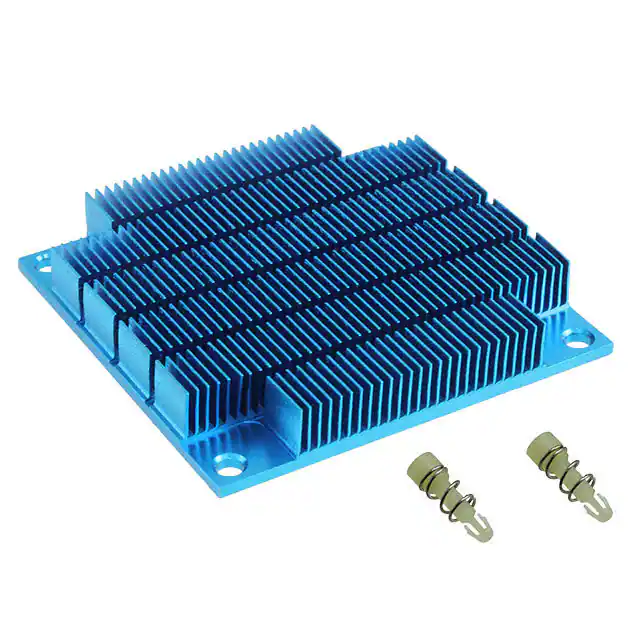

ATS-P1-111-C3-R1HEATSINK 60.00MM X 60.00MM ALUM |
2,111 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.374" (9.50mm) | - | 26.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-59-C1-R0HEATSINK 35X35X30MM L-TAB |
1,942 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-89-C1-R0HEATSINK 35X35X30MM R-TAB |
2,377 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-163-C1-R0HEATSINK 45X45X30MM L-TAB |
1,060 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 2.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-191-C1-R0HEATSINK 45X45X30MM R-TAB |
1,170 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 2.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-123-C3-R0HEATSINK 50X50X20MM XCUT T412 |
1,670 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 4.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-203-C3-R0HEATSINK 54X54X10MM XCUT T412 |
3,840 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 9.04°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-34-C1-R0HEATSINK 57.9X36.83X22.86MM |
1,191 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.900" (22.86mm) | - | 14.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-35-C3-R0HEATSINK 36.83X57.6X5.84MM T412 |
1,434 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.230" (5.84mm) | - | 22.55°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
581002B02500W/4-40TAP&G4581002B02500 W/ 4-40TAP & G4 PAD |
2,599 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ATS-H1-146-C2-R0HEATSINK 30X30X35MM L-TAB T766 |
3,691 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 4.02°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-174-C2-R0HEATSINK 30X30X35MM R-TAB T766 |
1,662 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 4.02°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-177-C2-R0HEATSINK 35X35X20MM R-TAB T766 |
4,237 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 6.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
SKV38538514-ALALUMINUM HEATSINK 38.5X37.6X14MM |
3,198 |
|
Datasheet | SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Rectangular, Fins | 1.480" (37.59mm) | 1.516" (38.50mm) | - | 0.551" (14.00mm) | - | 2.70°C/W @ 200 LFM | 17.20°C/W | Aluminum | - |
|
SKV4545225-ALALUMINUM HEATSINK 45X44X22.5MM |
2,279 |
|
Datasheet | SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Rectangular, Fins | 1.732" (44.00mm) | 1.772" (45.00mm) | - | 0.886" (22.50mm) | - | 1.75°C/W @ 200 LFM | 8.70°C/W | Aluminum | - |
|
APR43-43-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,804 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 1.087" (27.60mm) | - | 1.80°C/W @ 200 LFM | 6.76°C/W | Aluminum Alloy | Black Anodized |
|
|
APR43-43-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,181 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 1.283" (32.60mm) | - | 1.48°C/W @ 200 LFM | 6.41°C/W | Aluminum Alloy | Black Anodized |
|
|
YB32-4GFG-HTSK-AL-000YB-32-B-PINS-ROH |
1,494 |
|
- |
- | Bulk | Active | Board Level, Vertical | Multiwatt, SIP | Bolt On and PC Pin | Rectangular, Fins | 0.630" (16.00mm) | 2.362" (60.00mm) | - | 1.260" (32.00mm) | 4.0W @ 40°C | 4.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
|
ATS-55325W-C0-R0HEATSINK 32.5X32.5X24.5MM NO TIM |
1,928 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.965" (24.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
