Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-16F-210-C1-R0HEATSINK 70X70X12MM XCUT |
4,384 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.472" (12.00mm) | - | 5.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-111-C1-R1HEATSINK 60.00MM X 60.00MM ALUM |
1,949 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.374" (9.50mm) | - | 26.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

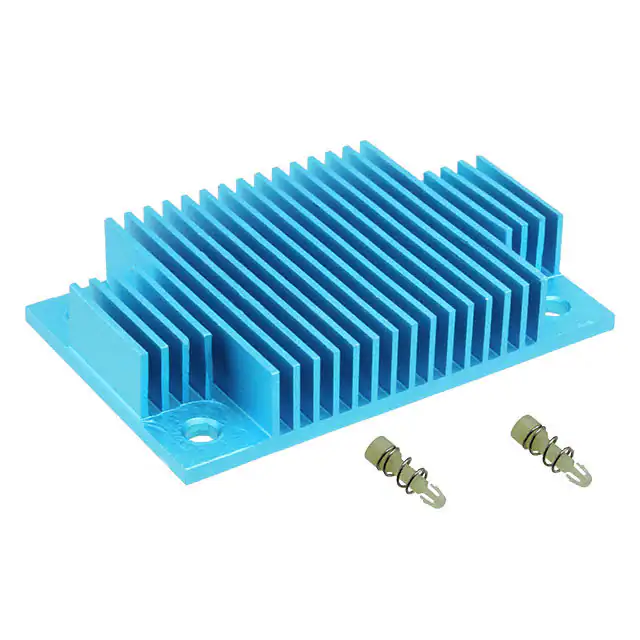

ATS-P1-36-C3-R0HEATSINK 36.83X57.6X11.43MM T412 |
3,593 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.450" (11.43mm) | - | 14.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

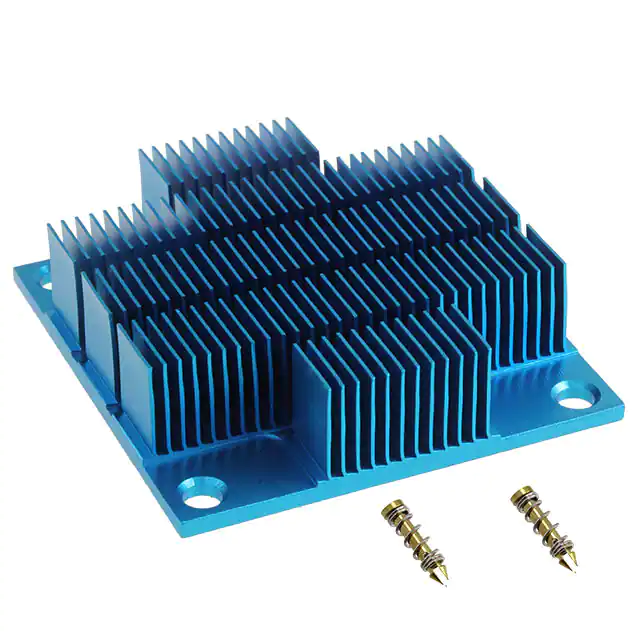

ATS-P2-106-C3-R1HEATSINK 45.00MM X 45.00MM ALUM |
3,119 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | - | 26.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-107-C3-R1HEATSINK 50.00MM X 50.00MM ALUM |
3,815 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.374" (9.50mm) | - | 28.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
AER43-43-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,718 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.457" (11.60mm) | - | 2.82°C/W @ 200 LFM | 9.57°C/W | Aluminum Alloy | Black Anodized |
|
|
AER43-43-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,146 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.575" (14.60mm) | - | 2.52°C/W @ 200 LFM | 9.07°C/W | Aluminum Alloy | Black Anodized |
|
|
AER43-43-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,577 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.693" (17.60mm) | - | 2.32°C/W @ 200 LFM | 8.57°C/W | Aluminum Alloy | Black Anodized |
|
ATS-20E-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
4,446 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
3,501 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
3,169 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
4,341 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
3,197 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
1,966 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
3,237 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
1,287 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
3,723 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-08F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
1,757 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-09F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
4,617 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-10F-132-C3-R0HEATSINK 60X60X25MM XCUT T412 |
4,815 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
