Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-11E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
3,025 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-12E-66-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
1,623 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12E-96-C2-R0HEATSINK 40X40X35MM R-TAB T766 |
2,044 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.63°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-13E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
4,350 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
2,620 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16E-96-C2-R0HEATSINK 40X40X35MM R-TAB T766 |
3,051 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.63°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
2,394 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-96-C2-R0HEATSINK 40X40X35MM R-TAB T766 |
1,820 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.63°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
4,916 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-96-C2-R0HEATSINK 40X40X35MM R-TAB T766 |
2,119 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.63°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
APR25-25-21CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,850 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.969" (24.61mm) | 0.969" (24.61mm) | - | 0.811" (20.60mm) | - | 4.46°C/W @ 200 LFM | 12.61°C/W | Aluminum Alloy | Black Anodized |
|
|
APR25-25-23CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,892 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.969" (24.61mm) | 0.969" (24.61mm) | - | 0.890" (22.61mm) | - | 4.14°C/W @ 200 LFM | 12.21°C/W | Aluminum Alloy | Black Anodized |
|
533702B02552GBOARD LEVEL HEAT SINK |
4,909 |
|
Datasheet | - | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 12.0W @ 70°C | 4.00°C/W @ 200 LFM | 5.70°C/W | Aluminum | Black Anodized |
|

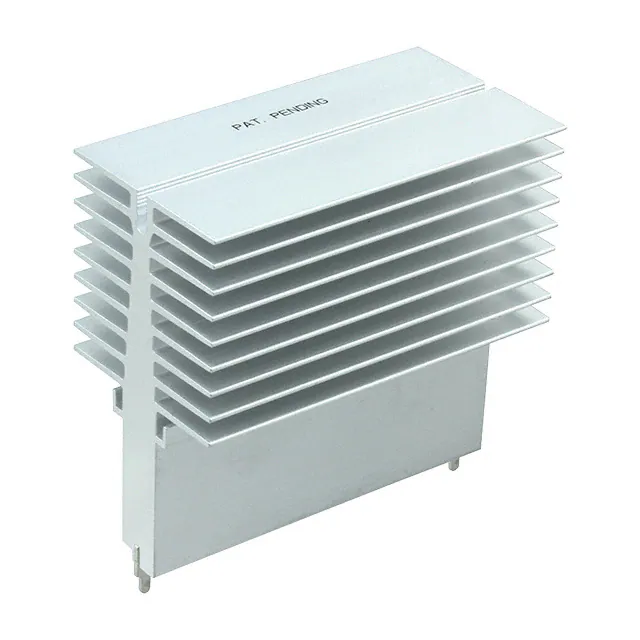

CR401-75VEALUMINUM HEATSINK 75MM DEGREASED |
2,873 |
|
Datasheet | CR | Box | Obsolete | Board Level, Vertical | TO-401 | 2 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 2.953" (75.00mm) | - | - | - | - | 3.00°C/W | Aluminum Alloy | Degreased |
|
ATS-20E-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
2,637 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
3,565 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
4,917 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04F-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
4,888 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05F-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
4,692 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07F-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
3,794 |
|
Datasheet | pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
