Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-14E-152-C3-R0HEATSINK 35X35X35MM L-TAB T412 |
1,745 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14E-180-C3-R0HEATSINK 35X35X35MM R-TAB T412 |
3,261 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-15E-14-C3-R0HEATSINK 50X50X20MM XCUT T412 |
2,072 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 10.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15E-152-C3-R0HEATSINK 35X35X35MM L-TAB T412 |
3,574 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15E-180-C3-R0HEATSINK 35X35X35MM R-TAB T412 |
2,658 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16E-14-C3-R0HEATSINK 50X50X20MM XCUT T412 |
1,567 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 10.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16E-152-C3-R0HEATSINK 35X35X35MM L-TAB T412 |
2,861 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16E-180-C3-R0HEATSINK 35X35X35MM R-TAB T412 |
4,605 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-14-C3-R0HEATSINK 50X50X20MM XCUT T412 |
1,441 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 10.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-152-C3-R0HEATSINK 35X35X35MM L-TAB T412 |
4,391 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-180-C3-R0HEATSINK 35X35X35MM R-TAB T412 |
4,631 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-14-C3-R0HEATSINK 50X50X20MM XCUT T412 |
4,986 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 10.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-152-C3-R0HEATSINK 35X35X35MM L-TAB T412 |
2,035 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-180-C3-R0HEATSINK 35X35X35MM R-TAB T412 |
2,218 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-14-C3-R0HEATSINK 50X50X20MM XCUT T412 |
3,985 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 10.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-152-C3-R0HEATSINK 35X35X35MM L-TAB T412 |
4,270 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-180-C3-R0HEATSINK 35X35X35MM R-TAB T412 |
4,398 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

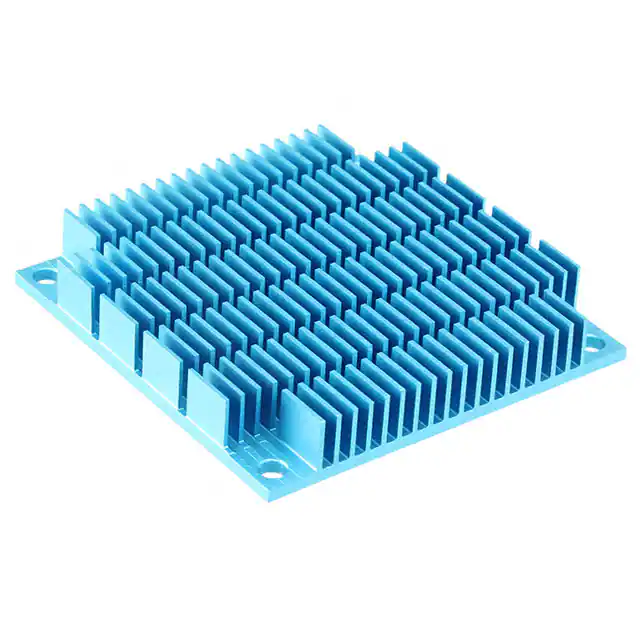

ATS-FPX060060010-21-C2-R0HEATSINK 60X60X10MM XCUT FP |
4,179 |
|
Datasheet | pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.28°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
AER25-25-21CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,700 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.969" (24.61mm) | 0.969" (24.61mm) | - | 0.811" (20.60mm) | - | 3.42°C/W @ 200 LFM | 11.68°C/W | Aluminum Alloy | Black Anodized |
|
|
AER25-25-23CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,964 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.969" (24.61mm) | 0.969" (24.61mm) | - | 0.890" (22.61mm) | - | 3.22°C/W @ 200 LFM | 11.28°C/W | Aluminum Alloy | Black Anodized |
