Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7477W2HEATSINK ALUM ANOD |
1,725 |
|
Datasheet | - | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | PC Pin | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.500" (12.70mm) | - | - | 14.00°C/W | Aluminum | Black Anodized |
|
V8510SN-THEATSINK ALUM ANOD |
977 |
|
Datasheet | - | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Clip and Board Mounts | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.335" (8.50mm) | - | - | 18.00°C/W | Aluminum | Tin |
|
V2028BHEATSINK CPU XCUT |
876 |
|
Datasheet | - | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.177" (29.90mm) | 1.177" (29.90mm) | - | 0.370" (9.40mm) | - | - | 17.00°C/W | Aluminum Alloy | Black Anodized |
|
V7477ZCHEATSINK ALUM ANOD |
192 |
|
Datasheet | - | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Pin Fins | 1.098" (27.90mm) | 1.098" (27.90mm) | - | 0.500" (12.70mm) | - | - | 7.00°C/W | Aluminum | Black Anodized |
|
V2031NHEATSINK CPU FORGED |
132 |
|
Datasheet | - | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.492" (12.50mm) | - | - | 5.30°C/W | Aluminum Alloy | Black Anodized |
|
V2030NHEATSINK CPU FORGED |
104 |
|
Datasheet | - | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.256" (6.50mm) | - | - | 6.00°C/W | Aluminum Alloy | Natural Anodized |
|
V2032AHEATSINK CPU FORGED |
127 |
|
Datasheet | - | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.728" (18.50mm) | - | - | 5.50°C/W | Aluminum Alloy | Clean Finished |
|
V5583EHEATSINK ALUM ANOD |
162 |
|
Datasheet | - | Bulk | Active | Top Mount | TO-220 | Bolt On | Rectangular, Fins | 1.969" (50.00mm) | 1.811" (46.00mm) | - | 1.299" (33.00mm) | - | - | 4.60°C/W | Aluminum | Black Anodized |
|
V7477YHEATSINK ALUM ANOD |
200 |
|
Datasheet | - | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.500" (12.70mm) | - | - | 9.00°C/W | Aluminum | Black Anodized |
|

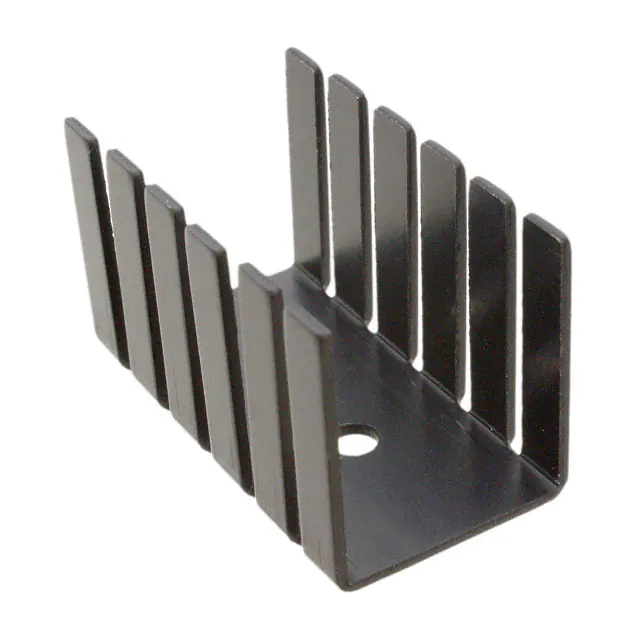

V2006BHEATSINK TO-220 36.83X17.80MM |
892 |
|
Datasheet | - | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.450" (36.83mm) | 0.700" (17.78mm) | - | 0.850" (21.60mm) | - | - | 7.00°C/W | Aluminum | Black Anodized |
