Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

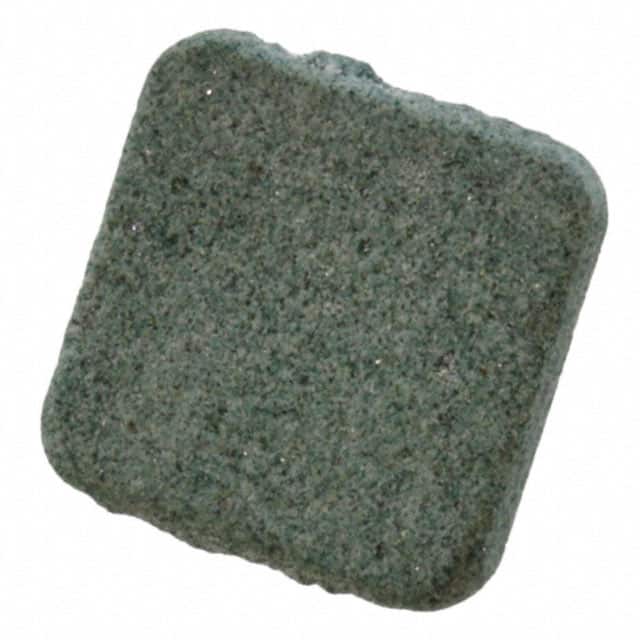

XLI98-10-10-2.25XL25 CERAMIC 10X10MM W/LI98C ADH |
3,091 |
|
Datasheet | XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.089" (2.25mm) | - | - | - | Ceramic | - |
|

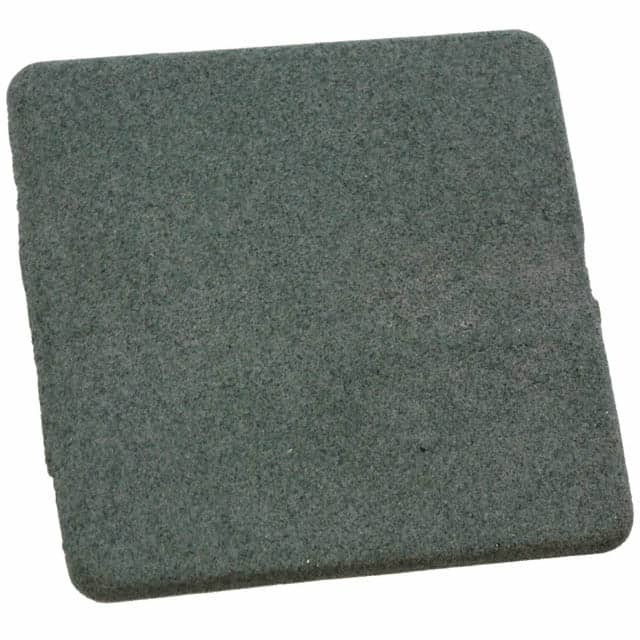

XLI98-20-20-2.25XL25 CERAMIC 20X20MM W/LI98C ADH |
1,764 |
|
Datasheet | XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.089" (2.25mm) | - | - | - | Ceramic | - |
|
PH3-50.8-12.7-0.21-1APH3 50.8X12.07X0.21MM |
3,243 |
|
Datasheet | PH3 | Bulk | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Rectangular | 2.000" (50.80mm) | 0.500" (12.70mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|
PH3-76.2-12.7-0.21-1APH3 76.2X12.07X0.21MM |
3,111 |
|
Datasheet | PH3 | Bulk | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Rectangular | 3.000" (76.20mm) | 0.500" (12.70mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|
PH3-76.2-25.4-0.21-1APH3 76.2X25.4X0.21MM |
4,826 |
|
Datasheet | PH3 | Bulk | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Rectangular | 3.000" (76.20mm) | 1.000" (25.40mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|
PH3-101.6-25.4-0.21-1APH3 101.6X25.4X0.21MM |
1,799 |
|
Datasheet | PH3 | Bulk | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Rectangular | 4.000" (101.60mm) | 1.000" (25.40mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|
PH3-101.6-38.1-0.21-1APH3 101.6X38.1X0.21MM |
1,515 |
|
Datasheet | PH3 | Bulk | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Rectangular | 4.000" (101.60mm) | 1.500" (38.10mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|
PH3N-50.8-12.7-0.062-1APH3N NANO 50.8X12.07X0.062MM |
1,178 |
|
Datasheet | PH3n | Bulk | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Rectangular | 2.000" (50.80mm) | 0.500" (12.70mm) | - | 0.002" (0.06mm) | - | - | - | Copper | Polyester |
|
PH3N-76.2-19.1-0.062-1APH3N NANO 76.2X19.1X0.062MM |
4,346 |
|
Datasheet | PH3n | Bulk | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Rectangular | 3.000" (76.20mm) | 0.750" (19.05mm) | - | 0.002" (0.06mm) | - | - | - | Copper | Polyester |
|
PH3N-101.6-25.4-0.062-1APH3N NANO 101.6X25.4X0.062MM |
1,196 |
|
Datasheet | PH3n | Bulk | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Rectangular | 4.000" (101.60mm) | 1.000" (25.40mm) | - | 0.002" (0.06mm) | - | - | - | Copper | Polyester |
