Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSS03-B20-P318HEAT SINK, STAMPING, TO-220, 41. |
1,556 |
|
Datasheet | HSS | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular | 1.640" (41.66mm) | 1.300" (33.02mm) | - | 0.470" (11.94mm) | 5.5W @ 75°C | 5.60°C/W @ 200 LFM | 13.67°C/W | Aluminum Alloy | Black Anodized |
|
HSE02-173213HEAT SINK, EXTRUSION, 17 X 31.9 |
3,116 |
|
Datasheet | HSE | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.492" (12.50mm) | 3.5W @ 75°C | 6.70°C/W @ 200 LFM | 21.44°C/W | Aluminum Alloy | Blue Anodized |
|
HSS04-B20-P318HEAT SINK, STAMPING, TO-220, 41. |
1,929 |
|
Datasheet | HSS | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular | 1.650" (41.91mm) | 1.750" (44.45mm) | - | 0.380" (9.65mm) | 5.9W @ 75°C | 5.50°C/W @ 200 LFM | 12.79°C/W | Aluminum Alloy | Black Anodized |
|
HSE01-193175HEAT SINK, EXTRUSION, 19 X 31.5 |
1,538 |
|
Datasheet | HSE | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.295" (7.50mm) | 2.95W @ 75°C | 9.20°C/W @ 200 LFM | 25.44°C/W | Aluminum Alloy | Blue Anodized |
|
HSS06-C20-P32HEAT SINK, STAMPING, TO-220, 27. |
338 |
|
Datasheet | HSS | Box | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular | 1.101" (27.96mm) | 0.866" (22.00mm) | - | 0.375" (9.52mm) | 3.0W @ 75°C | 10.60°C/W @ 200 LFM | 25.35°C/W | Copper Alloy | Tin |
|

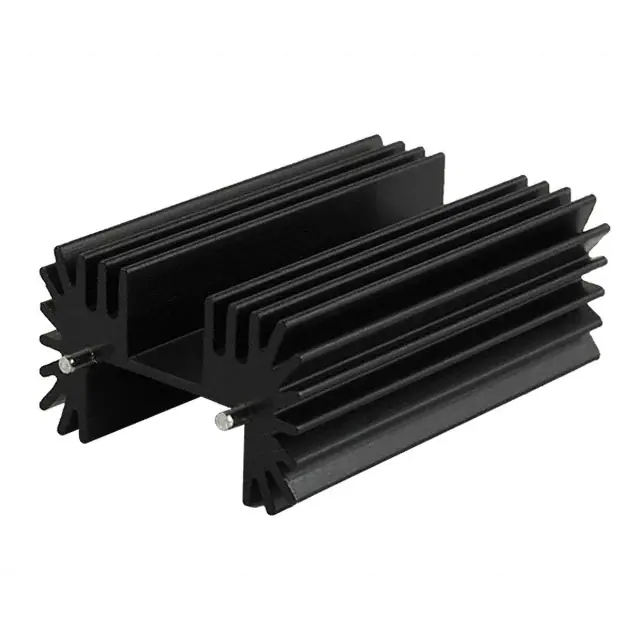

HSE-B18254-0396HHEAT SINK, EXTRUSION,TO-218, 25. |
1,775 |
|
Datasheet | HSE | Box | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.654" (42.00mm) | - | 0.984" (25.00mm) | 8.2W @ 75°C | 2.29°C/W @ 200 LFM | 9.15°C/W | Aluminum Alloy | Black Anodized |
|

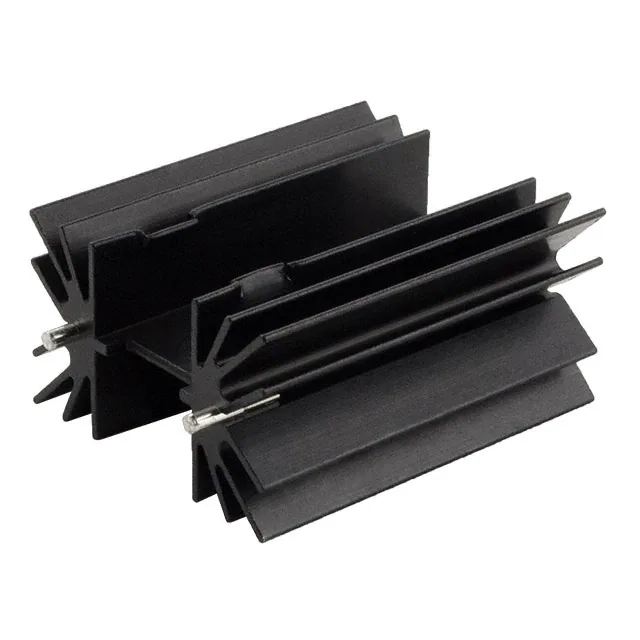

HSE-B18508-035HHEAT SINK, EXTRUSION, TO-218, 50 |
1,302 |
|
Datasheet | HSE | Box | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Angled Fins | 2.000" (50.80mm) | 1.638" (41.60mm) | - | 0.984" (25.00mm) | 12.8W @ 75°C | 2.98°C/W @ 200 LFM | 5.86°C/W | Aluminum Alloy | Black Anodized |
|
HSS08-B18-CPHEAT SINK, STAMPING, TO-218, 44. |
974 |
|
Datasheet | HSS | Box | Active | Board Level, Vertical | TO-218 | PC Pin | Square | 1.750" (44.45mm) | 1.750" (44.45mm) | - | 0.492" (12.50mm) | 10.3W @ 75°C | 3.50°C/W @ 200 LFM | 7.29°C/W | Aluminum Alloy | Black Anodized |
|
|
HSB31-212105HEAT SINK, BGA, 21 X 21 X 5 MM |
1,836 |
|
Datasheet | HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) | 3.0W @ 75°C | 9.90°C/W @ 200 LFM | 25.33°C/W | Aluminum Alloy | Black Anodized |
|
|
HSB34-282811HEAT SINK, BGA, 28 X 28 X 11.2 M |
1,105 |
|
Datasheet | HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.441" (11.20mm) | 5.0W @ 75°C | 5.10°C/W @ 200 LFM | 15.05°C/W | Aluminum Alloy | Black Anodized |
