Test Points
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Mounting Type | Color | Hole Diameter | Size / Dimension | Height | Plating | Material - Insulation | Material - Body |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1751-46PC TEST POINT NATURAL |
10,423 |
|
Datasheet | S1751, EZ BoardWare | Bulk | Active | PC Test Point | Surface Mount | Natural | - | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.079" (2.00mm) | Tin | No Insulation | Brass |
|

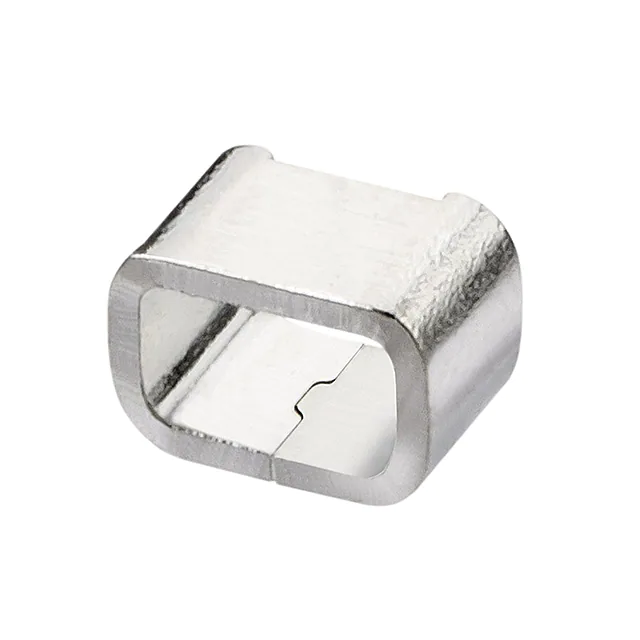

S2751-46RPC TEST POINT NATURAL |
90,890 |
|
Datasheet | S2751, EZ BoardWare | Tape & Reel (TR) | Active | PC Test Point | Surface Mount | Natural | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.055" (1.40mm) | Tin | No Insulation | Brass |
|
S2761-46RPC TEST POINT NATURAL |
2,726 |
|
Datasheet | S2761, EZ BoardWare | Tape & Reel (TR) | Active | PC Test Point | Surface Mount | Natural | - | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.045" (1.15mm) | Tin | No Insulation | Brass |
|
S1751-46RPC TEST POINT NATURAL |
74,107 |
|
Datasheet | S1751, EZ BoardWare | Tape & Reel (TR) | Active | PC Test Point | Surface Mount | Natural | - | 0.128" L x 0.064" W (3.25mm x 1.63mm) | 0.079" (2.00mm) | Tin | No Insulation | Brass |
|

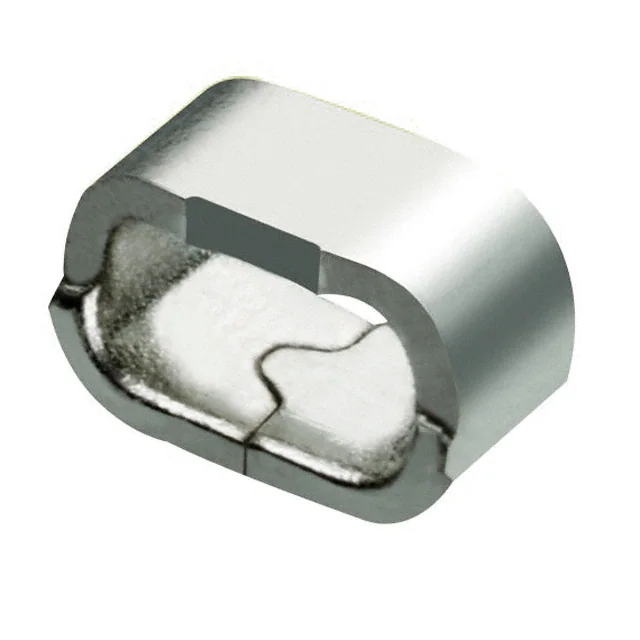

S1751-06RPC TEST POINT NATURAL |
4,224 |
|
Datasheet | S1751, EZ BoardWare | Tape & Reel (TR) | Obsolete | PC Test Point | Surface Mount | Natural | - | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.079" (2.00mm) | Tin-Lead | No Insulation | Brass |
|
M1352-98PC TEST POINT JACK BLACK |
2,601 |
|
Datasheet | - | Bulk | Obsolete | PC Test Point Jack | Through Hole, Right Angle | Black | - | 0.453" L x 0.156" W (11.51mm x 3.96mm) | 0.203" (5.16mm) | Gold | Polyamide (PA66), Nylon 6/6 | Phosphor Bronze |
|
M1352-99PC TEST POINT JACK RED |
4,305 |
|
Datasheet | - | Bulk | Obsolete | PC Test Point Jack | Through Hole, Right Angle | Red | - | 0.453" L x 0.156" W (11.51mm x 3.96mm) | 0.203" (5.16mm) | Gold | Polyamide (PA66), Nylon 6/6 | Phosphor Bronze |
|
|
S1751-06PC TEST POINT NATURAL |
4,724 |
|
Datasheet | S1751, EZ BoardWare | Bulk | Obsolete | PC Test Point | Surface Mount | Natural | - | 0.128" L x 0.065" W (3.25mm x 1.65mm) | 0.079" (2.00mm) | Tin-Lead | No Insulation | Brass |
