Test Points
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Mounting Type | Color | Hole Diameter | Size / Dimension | Height | Plating | Material - Insulation | Material - Body |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
02-0PC TEST POINT BANANA |
347 |
|
Datasheet | 2 | Bulk | Active | PC Test Point | Threaded Stud | - | - | 1.250" L x 0.312" W (31.75mm x 7.92mm) | - | Nickel | No Insulation | Brass |
|

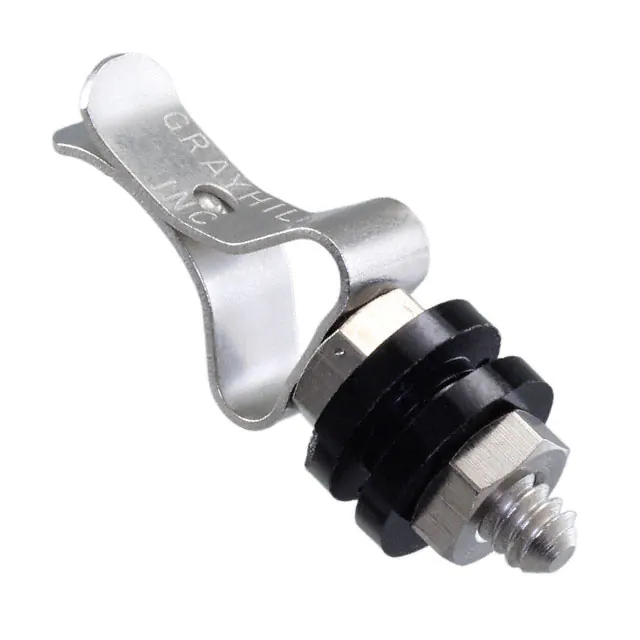

02-24PC TEST POINT MINIATURE |
2,918 |
|
Datasheet | 2 | Bulk | Active | PC Test Point, Miniature | Threaded Stud | - | - | 0.719" L x 0.218" W (18.26mm x 5.54mm) | - | Nickel | No Insulation | Brass |
|
02-4PC TEST POINT STANDARD |
4,473 |
|
Datasheet | 2 | Bulk | Active | PC Test Point | Threaded Stud | - | - | 1.250" L x 0.312" W (31.75mm x 7.92mm) | - | Nickel | No Insulation | Brass |
|
02-60PC TEST POINT BANANA |
4,716 |
|
Datasheet | 2 | Bulk | Active | PC Test Point | Chassis Mount | - | - | 1.144" L x 0.312" W (29.06mm x 7.92mm) | - | Nickel | No Insulation | Brass |
|
02-20PC TEST POINT MINIATURE |
3,424 |
|
Datasheet | 2 | Bulk | Active | PC Test Point, Miniature | Threaded Stud | - | - | 0.719" L x 0.218" W (18.26mm x 5.54mm) | - | Nickel | No Insulation | Brass |
|
|
02-41PC TEST POINT MINIATURE |
3,819 |
|
Datasheet | 2 | Bulk | Active | PC Test Point, Miniature | Threaded Stud | - | - | 0.406" L x 0.125" W (10.31mm x 3.18mm) | - | Nickel | No Insulation | Beryllium Copper |
|
|
02-42PC TEST POINT MINIATURE |
3,256 |
|
Datasheet | 2 | Bulk | Active | PC Test Point, Miniature | Threaded Stud | - | - | 0.406" L x 0.125" W (10.31mm x 3.18mm) | - | Nickel | No Insulation | Beryllium Copper |
