Oscilloscopes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Bandwidth | Channels | Display Type | Interface | Memory Size | Function | Probe Type | Sampling Rate (Per Second) | Input Impedance | Rise Time (Typ) | Voltage - Input (Max) | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TAO3102TABLET O-SCOPE, 2CH/100MHZ/8-BIT |
1,572 |
|
Datasheet | TAO3000 | Box | Active | Handheld | 100 MHz | 2 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 3.5 ns | CAT II 400V | 100 ~ 240VAC |
|
XDS3064EMWO-SCOPE 60MHZ 4 CH 1GS/S |
3,366 |
|
Datasheet | XDS3000 | Box | Active | Bench | 60 MHz | 4 | LCD - Color | Ethernet, RS232, USB, WiFi | - | Record | - | 1G | 1M - 15pF | 5.8 ns | CAT II 400V | 100 ~ 240VAC |
|
HDS2062M-NO-SCOPE 60MHZ 2 CH 1GS/S |
4,047 |
|
Datasheet | HDS | Box | Active | Handheld | 60 MHz | 2 | LCD - Color | USB | 6kpts | Record, Playback | Passive 10:1 (2) | 1G | 1M - 15pF | 5.8 ns | CAT II 400V | 100 ~ 240VAC |
|

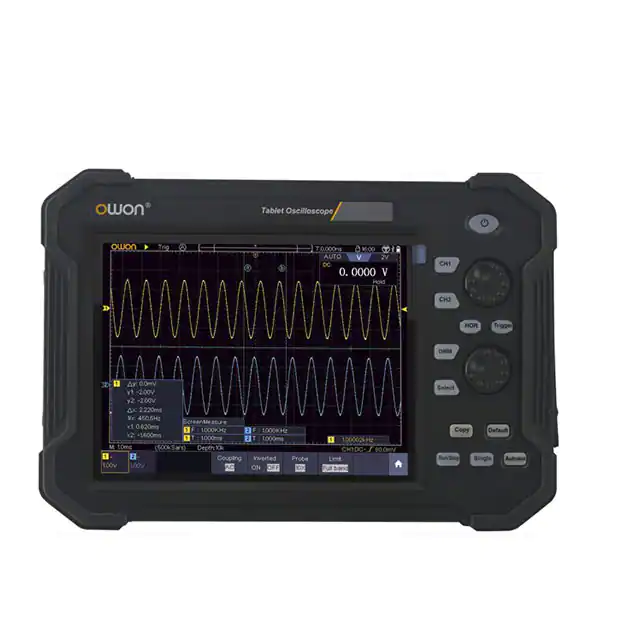

TAO3122TABLET O-SCOPE, 2CH/120MHZ/8-BIT |
3,431 |
|
Datasheet | TAO3000 | Box | Active | Handheld | 120 MHz | 2 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 2.9 ns | CAT II 400V | 100 ~ 240VAC |
|
XDS3104EO-SCOPE 100MHZ 4 CH 1GS/S |
2,142 |
|
Datasheet | XDS3000-E | Box | Active | Bench | 100 MHz | 4 | LCD - Color | Ethernet, USB | 40Mpts | Record, DMM | Passive 10:1 (4) | 125M | 1M - 15pF | 3.5 ns | - | 100 ~ 240VAC |
|
XDS3104EVMO-SCOPE 100MHZ 4 CH 1GS/S |
3,195 |
|
Datasheet | XDS3000 | Box | Active | Bench | 100 MHz | 4 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 3.5 ns | CAT II 400V | 100 ~ 240VAC |
|
DHO914125MHz, 1.25GSa/s, 4 channels, 1 |
3,535 |
|
Datasheet | DHO900 | Box | Active | Bench | 125 MHz | 4 Analog | LCD - Color | RS232, USB | 50Mpts | Record, Playback | Passive (4) | 1.25G | 1M - 15pF | 2.8 ns | CAT I 300V | 12VDC |
|
TAO3074TABLET O-SCOPE, 4CH/70MHZ/8-BIT |
3,437 |
|
Datasheet | TAO3000 | Box | Active | Handheld | 70 MHz | 4 | LCD - Color (Touch) | LAN, USB | - | Record, Save, Recall | Passive 10:1 (2) | 1G | 1M | 5 ns | CAT II 400V | 100 ~ 240VAC |
|
DS1074Z-S PLUSOSCILLOSCOPE 70 MHZ DIG 4CH PLUS |
4,460 |
|
Datasheet | DS1000Z | Box | Active | Bench, Digital | 70 MHz | 4 Analog | LCD - Color | Ethernet, RS232, USB | 6Mpts | Record, Playback | Passive 1:1 (4) | 250M | 1M - 15pF | 5 ns | CAT I 300V, CAT II 100V | 100 ~ 240VAC |
|
XDS3062AMBAG21O-SCOPE 60MHZ 2 CH 1GS/S |
2,309 |
|
Datasheet | XDS3000 | Box | Active | Bench | 60 MHz | 2 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 5.8 ns | CAT II 300V | 100 ~ 240VAC |
|
|
XDS3102TVMWO-SCOPE 100MHZ 2 CH 1GS/S |
2,263 |
|
Datasheet | XDS3000 | Box | Active | Bench | 100 MHz | 2 | LCD - Color | Ethernet, RS232, USB, WiFi | - | Record | - | 1G | 1M - 15pF | 3.5 ns | CAT II 300V | 100 ~ 240VAC |
|
DS1104Z-S PLUSOSCILLOSCOPE 100 MHZ DIG 4CH PLU |
1,989 |
|
Datasheet | DS1000Z | Box | Active | Bench, Digital | 100 MHz | 4 Analog | LCD - Color | Ethernet, RS232, USB | 6Mpts | Record, Playback | Passive 1:1 (4) | 250M | 1M - 15pF | 3.5 ns | CAT I 300V, CAT II 100V | 100 ~ 240VAC |
|

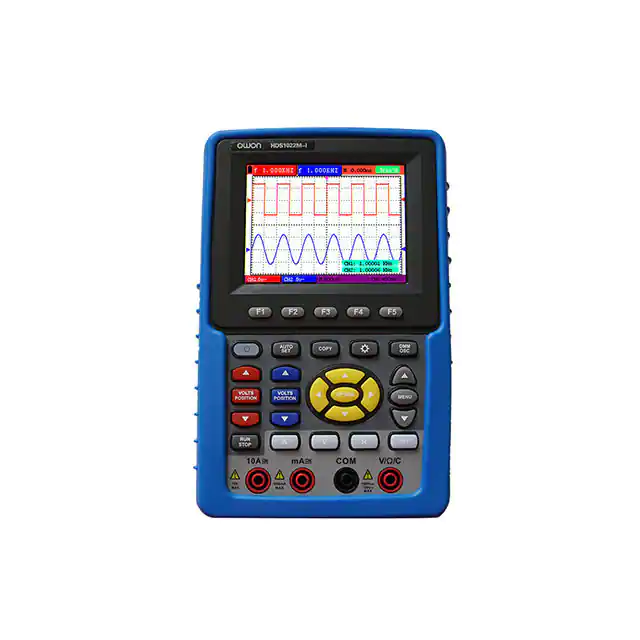

HDS1022M-IO-SCOPE 20MHZ 2 CH 100MS/S |
3,385 |
|
Datasheet | HDS | Box | Active | Handheld | 20 MHz | 2 | LCD - Color | USB | 6kpts | Record | Passive 10:1 (2) | 100M | 1M - 15pF | 17.5 ns | CAT II 400V | 100 ~ 240VAC |
|
TDS7074O-SCOPE 70MHZ 4 CH 1GS/S |
1,833 |
|
Datasheet | TDS | Box | Active | Bench | 70 MHz | 4 | LCD - Color | USB, VGA | 7.6Mpts | Record | Passive 10:1 (4) | 1G | 1M - 15pF | 5 ns | 400V | 100 ~ 240VAC |
|
MSO7062TDO-SCOPE 60MHZ 2 CH 1GS/S |
4,181 |
|
Datasheet | MSO | Box | Active | Bench | 60 MHz | 2 | LCD - Color | USB | 2Mpts | Record | Passive 10:1 (2) | 1G | 1M - 15pF | 5.8 ns | 400V | 100 ~ 240VAC |
|
XDS3102AO-SCOPE 100MHZ 2 CH 1GS/S |
3,763 |
|
Datasheet | XDS | Box | Active | Bench | 100 MHz | 2 | LCD - Color | Ethernet, USB | 40Mpts | Record, DMM | Passive 10:1 (2) | 1G | 1M - 15pF | 3.5 ns | - | 100 ~ 240VAC |
|
SDS8102VO-SCOPE 100MHZ 2 CH 2GS/S |
1,892 |
|
Datasheet | SDS | Box | Active | Bench | 100 MHz | 2 | LCD - Color | Ethernet, USB | 10Mpts | Record | Passive 10:1 (2) | 2G | 1M - 15pF | 1.7 ns | 400V | 100 ~ 240VAC |
|
XDS3104EMWVO-SCOPE 100MHZ 4 CH 1GS/S |
1,173 |
|
Datasheet | XDS3000 | Box | Active | Bench | 100 MHz | 4 | LCD - Color | Ethernet, RS232, USB | - | Record | - | 1G | 1M - 15pF | 3.5 ns | CAT II 400V | 100 ~ 240VAC |
|
|
DHO924250MHz, 1.25GSa/s, 4 channels, 1 |
2,180 |
|
Datasheet | DHO900 | Box | Active | Bench | 250 MHz | 4 Analog | LCD - Color | RS232, USB | 50Mpts | Record, Playback | Passive (4) | 1.25G | 1M - 15pF | 1.4 ns | CAT I 300V | 12VDC |
|
|
HDS3102M-NO-SCOPE 100MHZ 2 CH 1GS/S |
1,139 |
|
Datasheet | HDS | Box | Active | Handheld | 100 MHz | 2 | LCD - Color | USB | 6kpts | Record, Playback | Passive 10:1 (2) | 1G | 1M - 15pF | 3.5 ns | CAT II 400V | 100 ~ 240VAC |
