Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

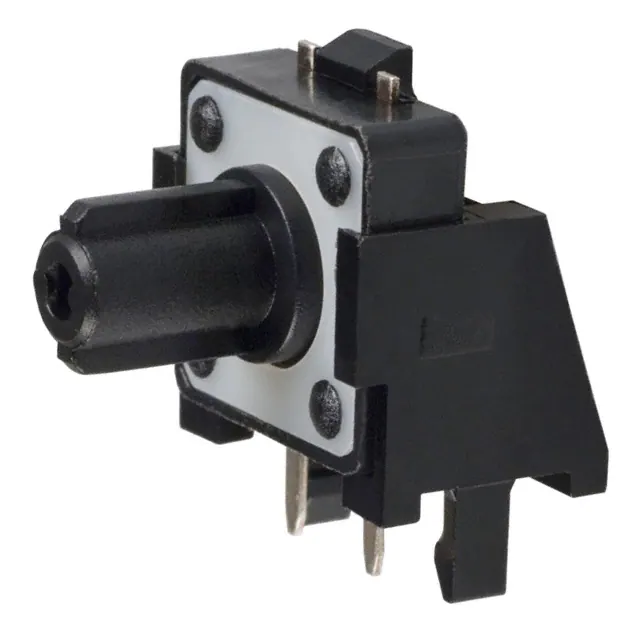

TL1100GF160QSWITCH TACTILE SPST-NO 0.05A 12V |
4,628 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 11.20mm | Side Actuated | PC Pin | 12.00mm x 9.90mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3342F320QGSWITCH TACTILE SPST-NO 0.05A 12V |
3,626 |
|
Datasheet | TL3342 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.54mm | - | Top Actuated | Gull Wing | 4.90mm x 4.90mm | Non-Illuminated | - | - | 320gf | - | - | -20°C ~ 70°C |
|
TL4105AF250QGSWITCH TACTILE SPST-NO 0.05A 12V |
4,354 |
|
Datasheet | TL4105 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.00mm | Side Actuated | Gull Wing | 4.80mm x 2.20mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
|
TL6150AF200QJSwitches |
4,802 |
|
Datasheet | TL6150 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
LL3303F065QGSWITCH TACTILE SPST-NO 0.05A 12V |
4,300 |
|
Datasheet | LL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.50mm x 6.20mm | Non-Illuminated | - | - | 65gf | - | - | -20°C ~ 70°C |
|
|
TLE3303F160QGSWITCH TACTILE SPST-NO 0.05A 12V |
3,478 |
|
Datasheet | TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
TLE3303F260QGSWITCH TACTILE SPST-NO 0.05A 12V |
2,885 |
|
Datasheet | TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
TSAMW-0.0-260-U-TRSWITCH TACTILE 0.05A 12V |
3,723 |
|
Datasheet | TSAMW | Tape & Reel (TR) | Active | - | - | 0.05A @ 12VDC | Standard | Panel Mount | - | - | Top Actuated | SMD (SMT) Tab | 6.30mm x 6.20mm | Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
|
TSAMW-0.8-260-U-TRSWITCH TACTILE 0.05A 12V |
3,278 |
|
Datasheet | TSAMW | Tape & Reel (TR) | Active | - | - | 0.05A @ 12VDC | Standard | Panel Mount | 0.80mm | - | Top Actuated | SMD (SMT) Tab | 6.30mm x 6.20mm | Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
|
TSAMW-1.0-260-USWITCH TACTILE 0.05A 12V |
4,220 |
|
Datasheet | TSAMW | Bulk | Active | - | - | 0.05A @ 12VDC | Standard | Panel Mount | 1.00mm | - | Top Actuated | SMD (SMT) Tab | 6.30mm x 6.20mm | Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
