Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1220R3BBWRGNSwitches |
2,777 |
|
Datasheet | TL1220 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green/Red | 2 VDC | 180gf | - | - | -40°C ~ 85°C |
|
|
TL3275AF160YWRSwitches |
2,567 |
|
Datasheet | TL3275 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.90mm | - | Top Actuated | SMD (SMT) Tab | 6.40mm x 3.55mm | Illuminated | LED, White/Yellow | - | 160gf | - | - | -40°C ~ 85°C |
|

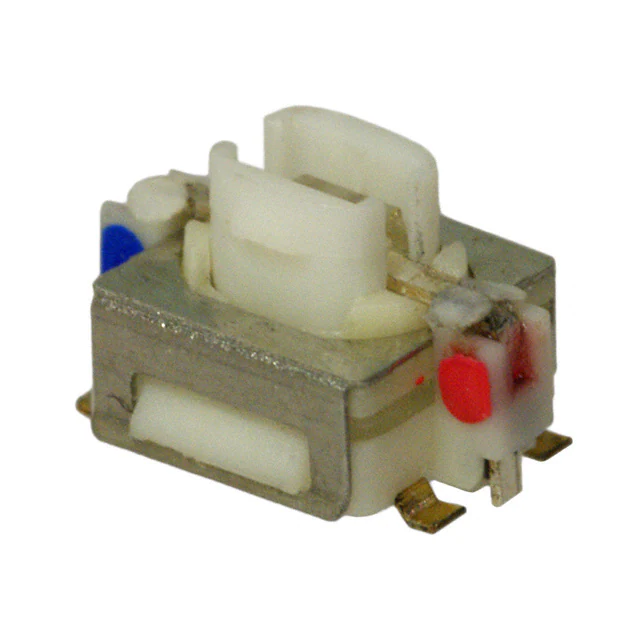

TL6210AF200GQSWITCH TACTILE SPST-NO 0.05A 12V |
3,220 |
|
Datasheet | TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, Green | 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL6210AF200RQSWITCH TACTILE SPST-NO 0.05A 12V |
2,170 |
|
Datasheet | TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, Red | 1.95 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL6210AF200YQSWITCH TACTILE SPST-NO 0.05A 12V |
4,193 |
|
Datasheet | TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, Yellow | 2 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|

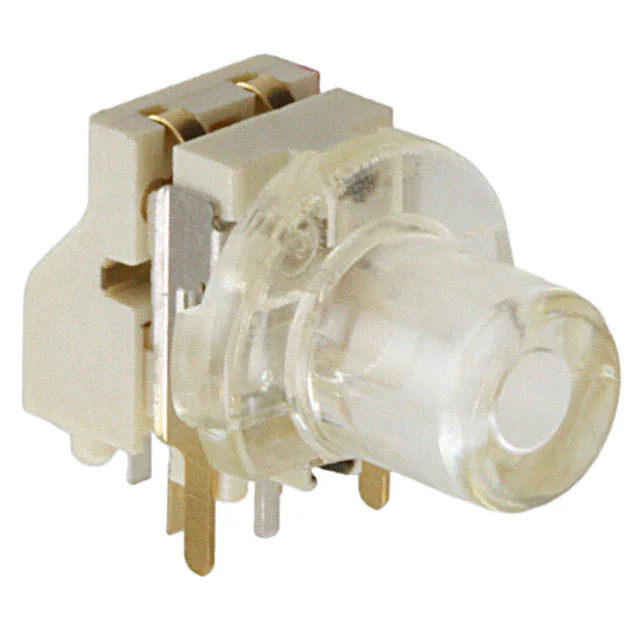

TL1270F160BLQBTSWITCH TACTILE SPST-NO 0.05A 12V |
1,453 |
|
Datasheet | TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 6.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | LED, Blue | 3.6 VDC | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3253BBABGRNORGAF160QSWITCH TACT SPSTX2 0.05A 12V |
3,617 |
|
Datasheet | TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue/Green/Orange | 2.1, 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL6210AF200XQSWITCH TACTILE SPST-NO 0.05A 12V |
2,593 |
|
Datasheet | TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, Green/Red | 1.95, 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL6210AF200ZQSWITCH TACTILE SPST-NO 0.05A 12V |
2,938 |
|
Datasheet | TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, Green/Yellow | 2.0, 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL6210AF200WQSWITCH TACTILE SPST-NO 0.05A 12V |
3,245 |
|
Datasheet | TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, White | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
