Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KSC241J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
18,792 |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

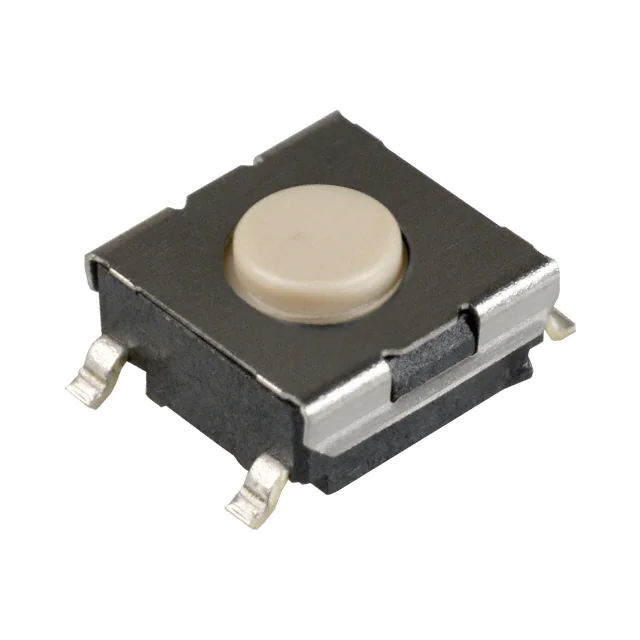

B3FS-1002PSWITCH TACTILE SPST-NO 0.05A 24V |
3,110 |
|
Datasheet | B3FS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|

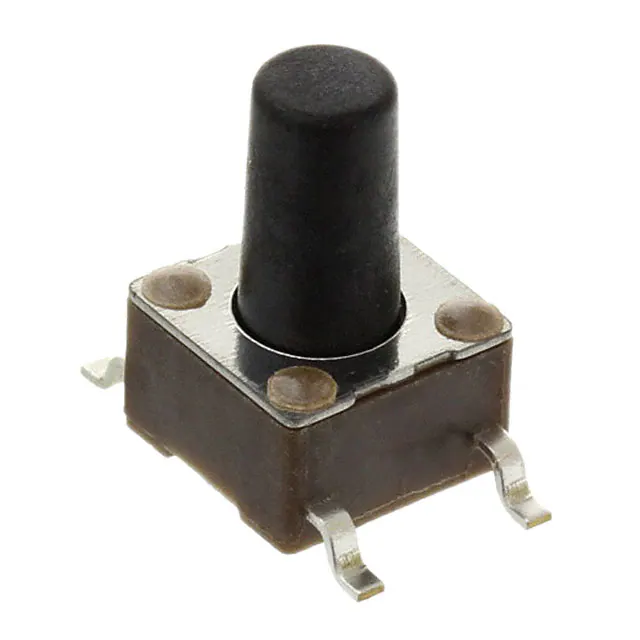

1571563-9SWITCH TACTILE SPST-NO 0.05A 24V |
28,464 |
|
Datasheet | FSMJSMA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 9.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
KSC441 V2 70SH SP DELTA LFSSWITCH TACTILE SPST-NO 0.05A 32V |
94,099 |
|
Datasheet | KSC4V2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole, Right Angle | - | 3.90mm | Side Actuated | SMD (SMT) Tab | 7.25mm x 3.43mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

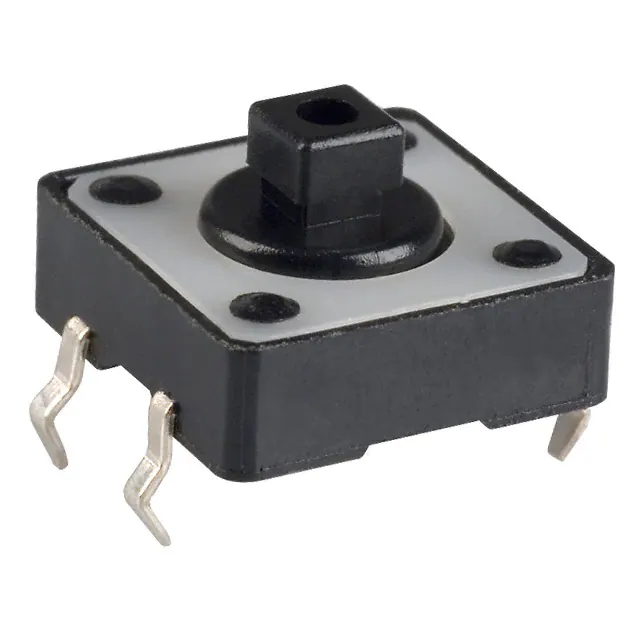

TL1100F160QSWITCH TACTILE SPST-NO 0.05A 12V |
37,897 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|

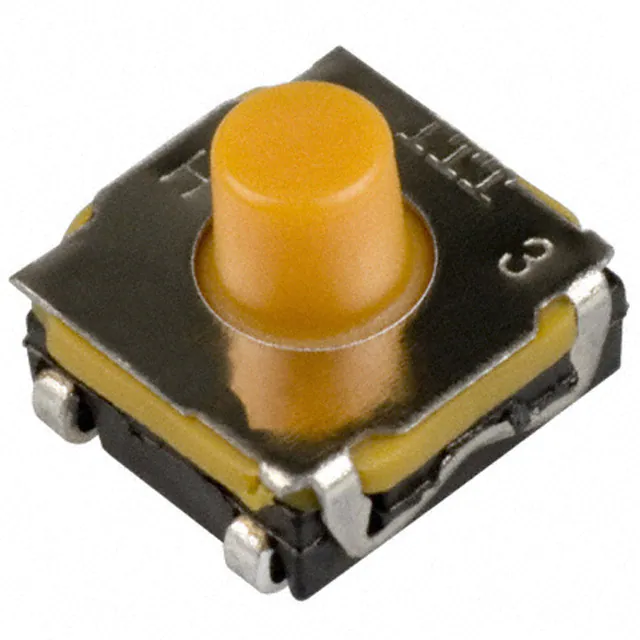

KSC441J 70SH LFSSWITCH TACTILE SPST-NO 0.05A 32V |
19,867 |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 400gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

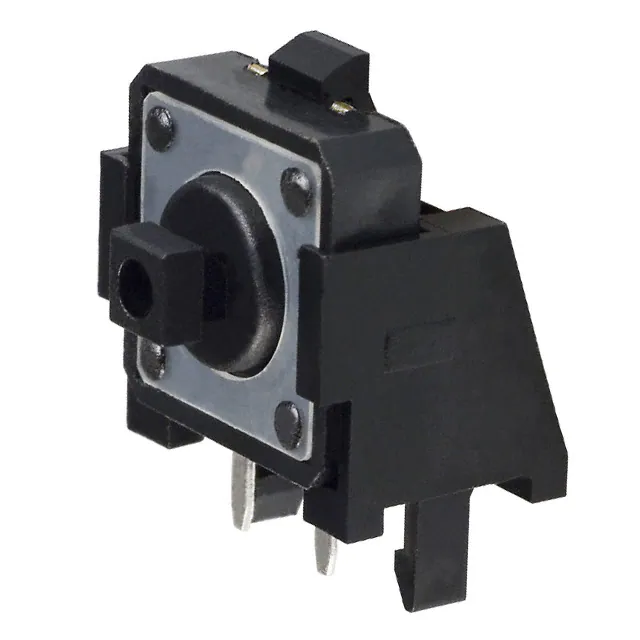

TL1100CF160QSWITCH TACTILE SPST-NO 0.05A 12V |
19,612 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.45mm | Side Actuated | PC Pin | 12.00mm x 9.90mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
B3SL-1002PSWITCH TACTILE SPST-NO 0.05A 12V |
74,068 |
|
Datasheet | B3SL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -25°C ~ 90°C |
|
EVQ-PUA02KSWITCH TACTILE SPST-NO 0.05A 12V |
26,045 |
|
Datasheet | EVQPU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
|

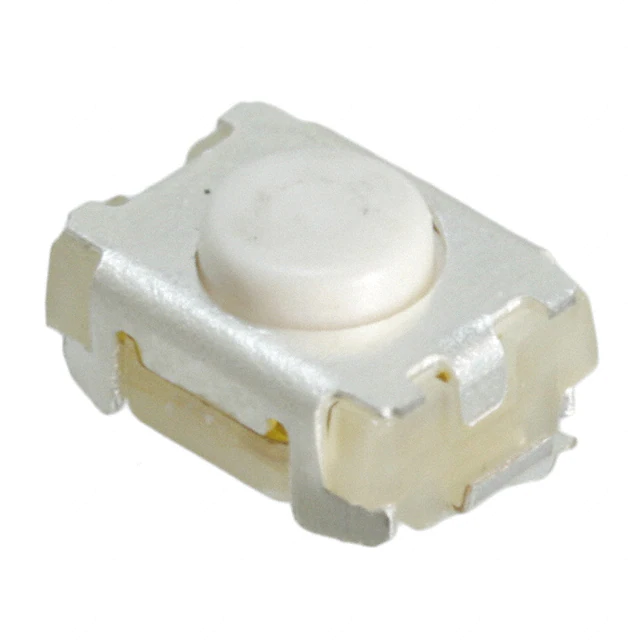

TL1015AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
22,800 |
|
Datasheet | TL1015 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | Gull Wing | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
KSC221G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
12,309 |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
KSC321J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
11,811 |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

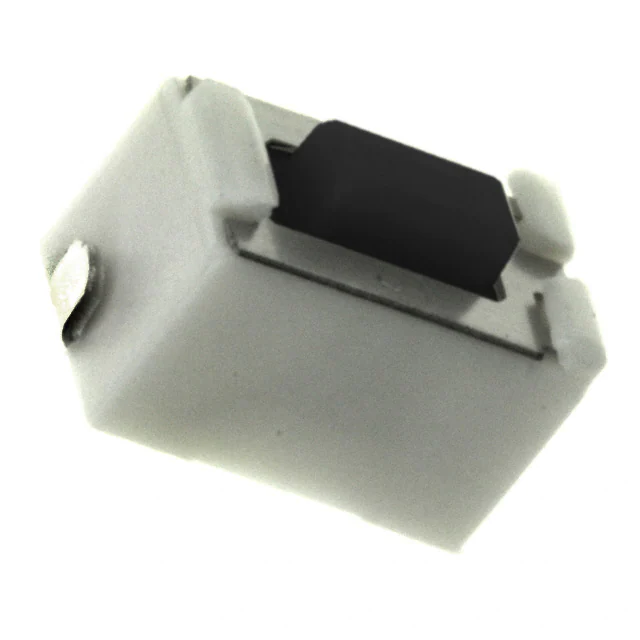

EVQ-PE105KSWITCH TACTILE SPST-NO 0.05A 12V |
3,710 |
|
Datasheet | EVQPE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 85°C |
|
|
PTS810SJG250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 16V |
53,429 |
|
Datasheet | PTS810 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 400gf | - | - | -40°C ~ 85°C |
|
EVP-AWED2ASWITCH TACTILE SPST-NO 0.02A 15V |
35,305 |
|
Datasheet | EVPAW | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 330gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
EVQ-PLDA15SWITCH TACTILE SPST-NO 0.02A 15V |
9,972 |
|
Datasheet | EVQPL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 4.90mm x 4.90mm | Non-Illuminated | - | - | 102gf | - | Push Plate | -20°C ~ 70°C |
|
|
KMR211G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
66,098 |
|
Datasheet | KMR2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 1.90mm | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 120gf | - | Grounding Pin | -40°C ~ 85°C |
|
KMR211NG LFSSWITCH TACTILE SPST-NO 0.05A 32V |
58,633 |
|
Datasheet | KMR2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 1.90mm | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 120gf | - | - | -40°C ~ 85°C |
|

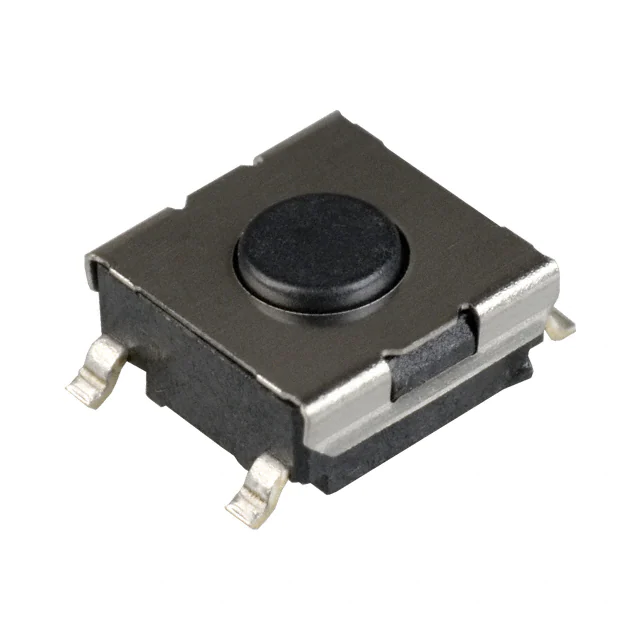

B3FS-1000PSWITCH TACTILE SPST-NO 0.05A 24V |
48,509 |
|
Datasheet | B3FS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
EVP-BB2A9B000SWITCH TACTILE SPST-NO 0.02A 15V |
28,013 |
|
Datasheet | EVPBB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.53mm | - | Top Actuated | Gull Wing | 2.60mm x 1.60mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
