Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CF-CA-1CB4-P112TSWITCH TACTILE SPST-NO 0.05A 32V |
2,997 |
|
Datasheet | CF-CA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 5.70mm | Side Actuated | SMD (SMT) Tab | 7.60mm x 6.40mm | Non-Illuminated | - | - | 305gf | - | Support Terminal | -40°C ~ 90°C |
|
CF-CA-1CB4-P202TSWITCH TACTILE SPST-NO 0.05A 32V |
2,914 |
|
Datasheet | CF-CA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 7.40mm | Side Actuated | SMD (SMT) Tab | 7.60mm x 4.40mm | Non-Illuminated | - | - | 305gf | - | Washable | -40°C ~ 90°C |
|
|
CF-CA-1CB4-P212TSWITCH TACTILE SPST-NO 0.05A 32V |
4,578 |
|
Datasheet | CF-CA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 7.40mm | Side Actuated | SMD (SMT) Tab | 7.60mm x 6.40mm | Non-Illuminated | - | - | 305gf | - | Support Terminal | -40°C ~ 90°C |
|
CF-CA-1CB4-P402TSWITCH TACTILE SPST-NO 0.05A 32V |
1,148 |
|
Datasheet | CF-CA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 8.60mm | Side Actuated | SMD (SMT) Tab | 7.60mm x 4.40mm | Non-Illuminated | - | - | 305gf | - | Washable | -40°C ~ 90°C |
|
|
CF-CA-1CB4-P412TSWITCH TACTILE SPST-NO 0.05A 32V |
3,008 |
|
Datasheet | CF-CA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount, Right Angle | - | 8.60mm | Side Actuated | SMD (SMT) Tab | 7.60mm x 6.40mm | Non-Illuminated | - | - | 305gf | - | Support Terminal | -40°C ~ 90°C |
|
228CMVARGBFFNRSWITCH TACTILE SPST-NO 0.05A 12V |
2,597 |
|
Datasheet | 228C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | 160gf | - | - | -25°C ~ 70°C |
|
|
228CMVARGBFENRSWITCH TACTILE SPST-NO 0.05A 12V |
2,961 |
|
Datasheet | 228C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | 160gf | - | - | -25°C ~ 70°C |
|
|
228CMVARGBFBNRSWITCH TACTILE SPST-NO 0.05A 12V |
2,016 |
|
Datasheet | 228C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | 160gf | - | - | -25°C ~ 70°C |
|
|
228CMVARGBFCNRSWITCH TACTILE SPST-NO 0.05A 12V |
4,197 |
|
Datasheet | 228C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | 160gf | - | - | -25°C ~ 70°C |
|
|
228CMVARGBFDNRSWITCH TACTILE SPST-NO 0.05A 12V |
1,939 |
|
Datasheet | 228C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | 160gf | - | - | -25°C ~ 70°C |
|
|
228CMVARGBFANRSWITCH TACTILE SPST-NO 0.05A 12V |
4,102 |
|
Datasheet | 228C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 10.80mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue/Green/Red | 1.7, 1.9, 3 VDC | 160gf | - | - | -25°C ~ 70°C |
|

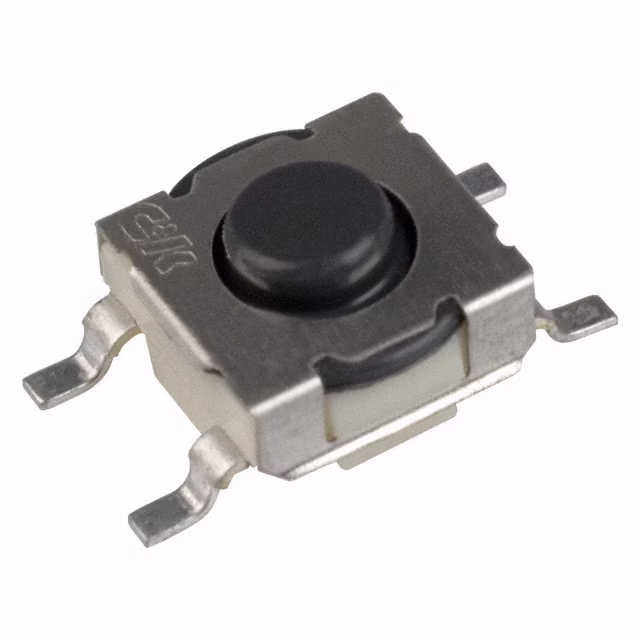

KT11B1SMSWITCH TACTILE SPST-NO 1VA 50V |
1,693 |
|
Datasheet | KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 1VA @ 50VAC/DC | Standard | Surface Mount | 3.64mm | - | Top Actuated | Gull Wing | 6.38mm x 6.22mm | Non-Illuminated | - | - | - | IP57 - Dust Protected, Waterproof | Sealed | -40°C ~ 90°C |
|
|
320E11BLKWHTONSWITCH TACT SPST-NO 0.025A 50V |
3,159 |
|
- |
320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | - | -20°C ~ 70°C |
|
|
MJTP2205RSTACT SWITCH PCB MOUNT |
1,717 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MJTP1137TRTACT SWITCH PCB MOUNT |
2,108 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MJTP1137ETRTACT SWITCH PCB MOUNT |
4,388 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MJTP1125ATRTACT SWITCH PCB MOUNT |
2,619 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL1240YQ2JREDSWITCH TACTILE SPST-NO 0.05A 12V |
2,930 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Yellow | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|
KT11B2SMSWITCH TACTILE SPST-NO 1VA 50V |
1,795 |
|
Datasheet | KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 1VA @ 50VAC/DC | Standard | Surface Mount | 5.24mm | - | Top Actuated | Gull Wing | 6.38mm x 6.22mm | Non-Illuminated | - | - | - | IP57 - Dust Protected, Waterproof | Sealed | -40°C ~ 90°C |
|
|
228HMVAAFRSWITCH TACTILE SPST-NO 0.05A 12V |
3,184 |
|
Datasheet | 228H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.05mm | - | Top Actuated | Gull Wing | 8.00mm x 5.20mm | Illuminated | LED, Amber | - | 160gf | - | - | -20°C ~ 70°C |
