Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVP-AA002KSWITCH TACTILE SPST-NO 0.02A 15V |
8,905 |
|
Datasheet | EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
KSA0M311 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
8,237 |
|
Datasheet | KSA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 130gf | IP60 - Dust Tight | - | -40°C ~ 90°C |
|
B3F-5050SWITCH TACTILE SPST-NO 0.05A 24V |
2,152 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | - | -25°C ~ 70°C |
|
B3FS-1010SWITCH TACTILE SPST-NO 0.05A 24V |
6,846 |
|
Datasheet | B3FS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
EVQ-P2402MSWITCH TACTILE SPST-NO 0.02A 15V |
5,890 |
|
Datasheet | EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.10mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 240gf | - | - | -40°C ~ 85°C |
|
SKSCLDE010SWITCH TACTILE SPST-NO 0.05A 12V |
5,041 |
|
Datasheet | SKSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 1.25mm | Side Actuated | SMD (SMT) Tab | 3.50mm x 2.90mm | Non-Illuminated | - | - | 163gf | - | - | -30°C ~ 85°C |
|
PTS847MM350LSMTR2 LFSSWITCH TACTILE SPST-NO 0.02A 12V |
4,639 |
|
Datasheet | PTS847 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Rectangular Button | Edge Mount, Right Angle | - | 1.70mm | Side Actuated | Gull Wing | 4.80mm x 2.20mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
MJTP1106STRSWITCH TACTILE SPST-NO 0.05A 12V |
4,216 |
|
Datasheet | MJTP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|
FSM2JELGEXLTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,071 |
|
Datasheet | Extended Life | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 50gf | - | Grounding Pin | -35°C ~ 85°C |
|
|
EVQ-P2602WSWITCH TACTILE SPST-NO 0.02A 15V |
64,168 |
|
Datasheet | EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
|
KSA0M212 LFTSWITCH TACTILE SPST-NO 0.05A 32V |
8,681 |
|
Datasheet | KSA MKII | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 130gf | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 85°C |
|
|
SKHUAKE010SWITCH TACTILE SPST-NO 0.05A 12V |
10,667 |
|
Datasheet | SKHU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
SKHUAME010SWITCH TACTILE SPST-NO 0.05A 12V |
7,916 |
|
Datasheet | SKHU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.20mm x 6.30mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

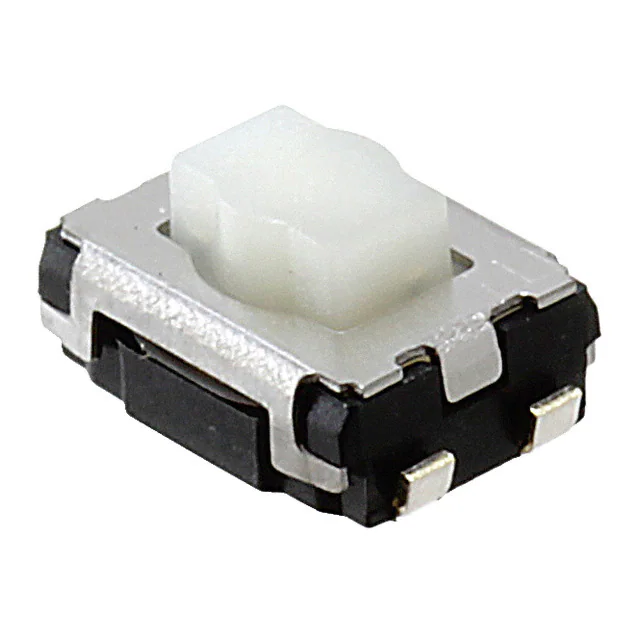

EVQ-P9H02WSWITCH TACTILE SPST-NO 0.02A 15V |
7,735 |
|
Datasheet | EVQP9 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 500gf | - | Grounding Pin | -40°C ~ 85°C |
|
|
SKHUALE010SWITCH TACTILE SPST-NO 0.05A 12V |
7,314 |
|
Datasheet | SKHU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
KSA0M512 LFTSWITCH TACTILE SPST-NO 0.05A 32V |
2,643 |
|
Datasheet | KSA MKII | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 500gf | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 85°C |
|
B3F-1026SWITCH TACTILE SPST-NO 0.05A 24V |
2,530 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 500gf | - | - | -25°C ~ 70°C |
|
EVP-BD6C1A000SWITCH TACTILE SPST-NO 0.05A 12V |
2,000 |
|
Datasheet | EVPBD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
|
SKSUBBE010SWITCH TACTILE SPST-NO 0.05A 16V |
1,491 |
|
Datasheet | SKSU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Spherical | Surface Mount | 4.34mm | - | Top Actuated | J Lead | 5.40mm x 5.30mm | Non-Illuminated | - | - | 510gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
B3U-3100PSWITCH TACTILE SPST-NO 0.05A 12V |
1,424 |
|
Datasheet | B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 4.00mm x 2.50mm | Non-Illuminated | - | - | 162gf | Dust Proof | Grounding Pin | -25°C ~ 70°C |
