Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5133TRSWITCH TACT SPST-NO 0.012A 24V |
3,937 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.45mm | - | Top Actuated | SMD (SMT) Tab | 7.00mm x 7.00mm | Non-Illuminated | - | - | 220gf | - | Flex Membrane | -40°C ~ 105°C |
|

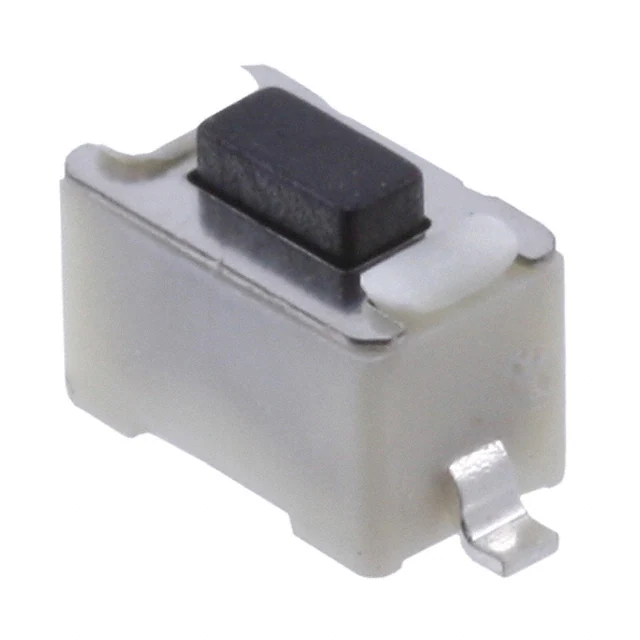

RS-032G05A3-SM RTSWITCH TACTILE SPST-NO 0.05A 12V |
133,722 |
|
Datasheet | RS, COMAX | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 250gf | - | - | - |
|
B3F-3125SWITCH TACTILE SPST-NO 0.05A 24V |
23,698 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.30mm x 6.25mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -25°C ~ 70°C |
|
EVP-AA502WSWITCH TACTILE SPST-NO 0.02A 15V |
11,551 |
|
Datasheet | EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 240gf | - | Grounding Pin | -40°C ~ 85°C |
|
SKHMQKE010SWITCH TACTILE SPST-NO 0.05A 12V |
6,666 |
|
Datasheet | SKHM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.50mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
SKSGACE010SWITCH TACTILE SPST-NO 0.05A 12V |
30,407 |
|
Datasheet | SKSG | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.40mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.70mm | Non-Illuminated | - | - | 163gf | - | - | -40°C ~ 85°C |
|
|
SKSGAAE010SWITCH TACTILE SPST-NO 0.05A 12V |
17,945 |
|
Datasheet | SKSG | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.40mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.70mm | Non-Illuminated | - | - | 408gf | - | - | -40°C ~ 85°C |
|
|
KSC223G LFGSWITCH TACTILE SPST-NO 0.01A 32V |
15,800 |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
KSC1101J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
13,699 |
|
Datasheet | KSC11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.90mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 163gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
KSC201J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
7,596 |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
TL1100DF160QSWITCH TACTILE SPST-NO 0.05A 12V |
4,228 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
431256031716SWITCH TACTILE SPST-NO 0.05A 12V |
4,207 |
|
Datasheet | WS-TATU | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -40°C ~ 85°C |
|
|
PTS840GKSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
47,652 |
|
Datasheet | PTS840 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -40°C ~ 85°C |
|
EVP-AYF1BASWITCH TACTILE SPST-NO 0.02A 15V |
15,691 |
|
Datasheet | EVPAY | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.70mm | - | Top Actuated | J Lead | 3.40mm x 2.90mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
PTS840GMSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
10,365 |
|
Datasheet | PTS840 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
MJTP1212SWITCH TACTILE SPST-NO 0.05A 12V |
3,064 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
SKRRACE010SWITCH TACTILE SPST-NO 0.05A 12V |
1,884 |
|
Datasheet | SKRR | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 7.50mm x 7.00mm | Non-Illuminated | - | - | 204gf | - | - | -40°C ~ 85°C |
|
|
KMS231GP LFSSWITCH TACTILE SPST-NO 0.05A 50V |
262,651 |
|
Datasheet | KMS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 300gf | IP40 | Board Guide | -40°C ~ 85°C |
|

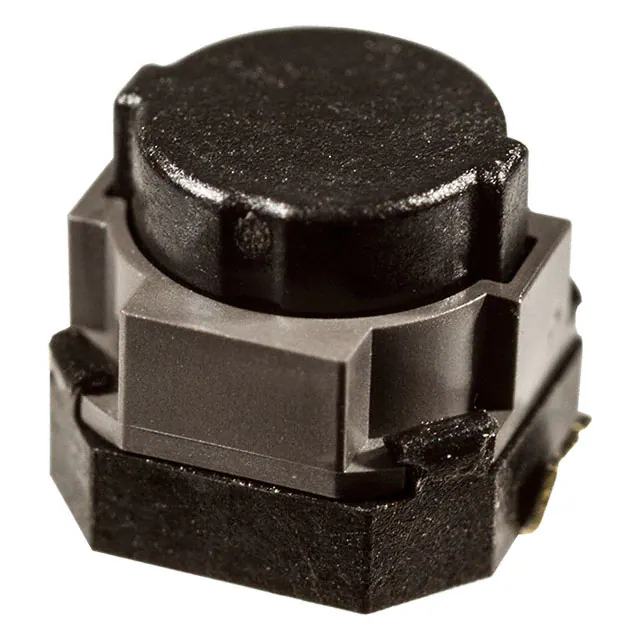

EVP-ASAC1ASWITCH TACTILE SPST-NO 0.05A 12V |
20,316 |
|
Datasheet | EVPAS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.10mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
|
B3FS-1010PSWITCH TACTILE SPST-NO 0.05A 24V |
19,202 |
|
Datasheet | B3FS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
