Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS530GG065SMTRLFSTACT |
21,000 |
|
Datasheet | PTS530 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.65mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 400gf | - | - | -40°C ~ 85°C |
|

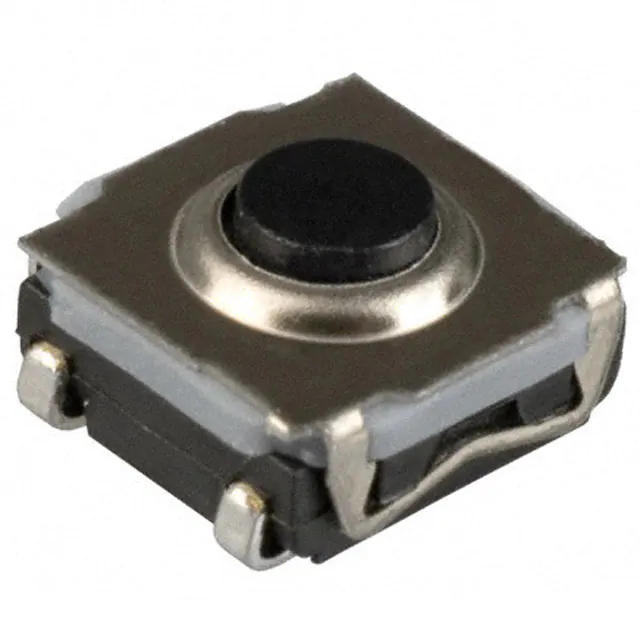

KSC321JLFSTACT |
16,000 |
|
Datasheet | KSC | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
KSC222JLFSSWITCH TACTILE N.O. SPST ROUND B |
2,000 |
|
Datasheet | KSC | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
PTS810SJS250SMTRLFSTACT |
31,900 |
|
Datasheet | PTS810 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 600gf | - | - | -40°C ~ 85°C |
|
|
PTS840GKSMTRLFSTACT |
17,500 |
|
Datasheet | PTS840 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -40°C ~ 85°C |
|
|
KSC741JLFSTACT |
10,000 |
|
Datasheet | KSC | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 390gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

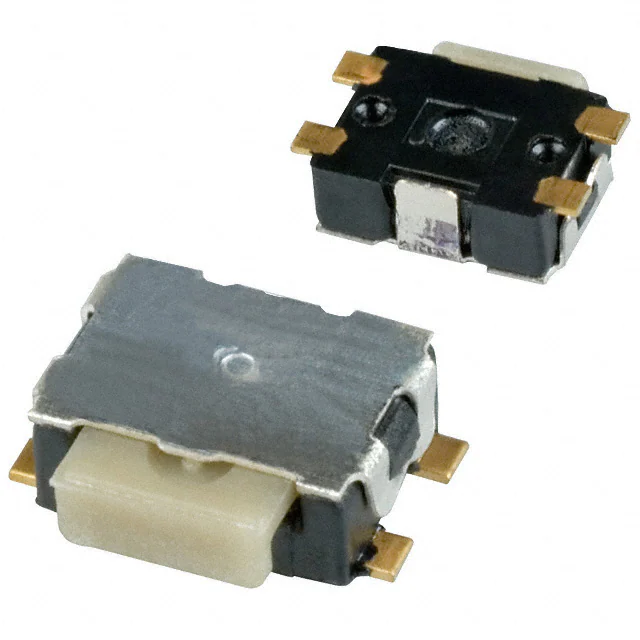

KMS233GPLFGTACT |
15,000 |
|
Datasheet | KMS | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 50VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 300gf | IP40 | - | -40°C ~ 125°C |
|
|
KMT211GHFLFSTACT |
160,000 |
|
Datasheet | KMT | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | Gull Wing | 3.00mm x 2.60mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
KSC323JLFGTACT |
4,000 |
|
Datasheet | KSC | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
KSC243GLFGSWITCH TACTILE NO SPST ROUND BUT |
4,200 |
|
Datasheet | KSC | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
