Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9002-HG2NSWITCH TACTILE SPST-NO 0.05A 24V |
2,003 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|

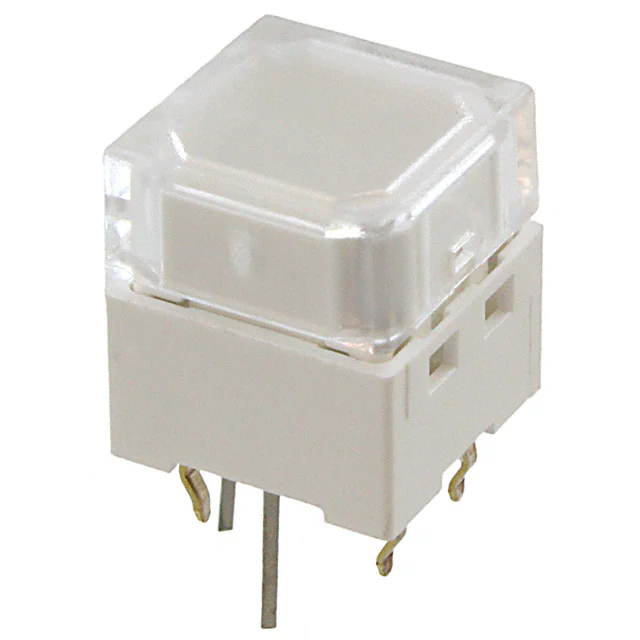

B3W-9002-HG2CSWITCH TACTILE SPST-NO 0.05A 24V |
1,641 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9010-B2BSWITCH TACTILE SPST-NO 0.05A 24V |
2,654 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Blue | 3.7 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-HG2GSWITCH TACTILE SPST-NO 0.05A 24V |
3,376 |
|
Datasheet | B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Green | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3M-6009SWITCH TACTILE SPST-NO 0.05A 12V |
1,242 |
|
Datasheet | B3M | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 70gf | - | - | -25°C ~ 70°C |
|
B3W-1150SSWITCH TACTILE SPST-NO 0.05A 24V |
4,199 |
|
Datasheet | B3W | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.60mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|

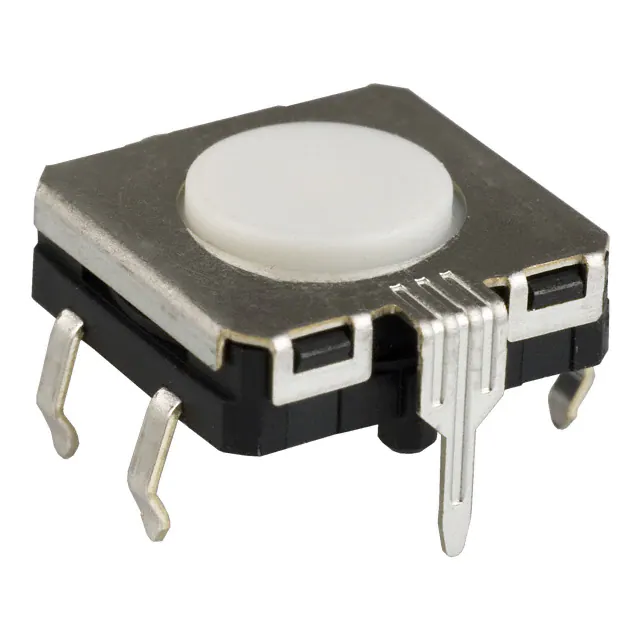

B3W-4100SWITCH TACTILE SPST-NO 0.05A 24V |
3,302 |
|
Datasheet | B3W | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
B3F-0802SWITCH TACTILE SPST-NO 0.05A 24V |
1,421 |
|
Datasheet | B3F | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
B3D-4112SWITCH TACTILE SPST-NO 0.01A 12V |
2,310 |
|
Datasheet | B3D | Bulk | Obsolete | SPST-NO | Off-Mom | 0.01A @ 12VDC | Snap Dome | Surface Mount, Adhesive | - | - | Top Actuated | Circular Contact | - | Non-Illuminated | - | - | 167gf | Dust Proof | - | -40°C ~ 80°C |
|
B3D-5112SWITCH TACTILE SPST-NO 0.01A 12V |
4,150 |
|
Datasheet | B3D | Bulk | Obsolete | SPST-NO | Off-Mom | 0.01A @ 12VDC | Snap Dome | Surface Mount, Adhesive | - | - | Top Actuated | Circular Contact | - | Non-Illuminated | - | - | 167gf | Dust Proof | - | -40°C ~ 80°C |
