Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

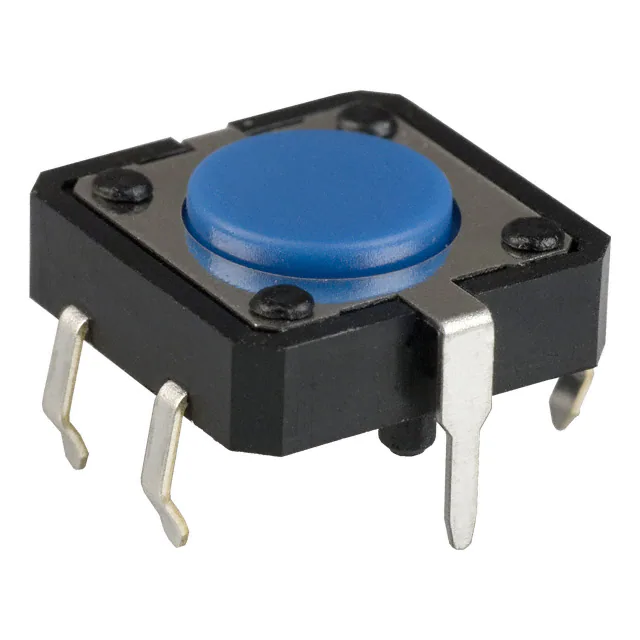

B3F-5100SWITCH TACTILE SPST-NO 0.05A 24V |
306 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -25°C ~ 70°C |
|
B3W-4005SSWITCH TACTILE SPST-NO 0.05A 24V |
3,100 |
|
Datasheet | B3W | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
B3F-1000-SSWITCH TACTILE SPST-NO 0.05A 24V |
232 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
B3F-1002SSWITCH TACTILE SPST-NO 0.05A 24V |
128 |
|
Datasheet | B3F | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
|
B3F 1000GSWITCH TACTILE SPST-NO 0.05A 24V |
953 |
|
Datasheet | B3F | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 180gf | - | - | -25°C ~ 70°C |
|
|
B3F 3152GSWITCH TACTILE SPST-NO 0.05A 24V |
725 |
|
Datasheet | B3F | - | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.30mm x 6.25mm | Non-Illuminated | - | - | 180gf | - | - | -25°C ~ 70°C |
|
|
B3FS1114BSWITCH TACTILE SPST-NO 0.05A 24V |
953 |
|
Datasheet | B3FS | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | - | Surface Mount | - | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | - | - | - | -25°C ~ 70°C |
|
|
B3W 1100CSWITCH TACTILE SPST-NO |
415 |
|
Datasheet | B3W | Box | Active | SPST-NO | Off-Mom | - | - | Through Hole | - | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | - | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
|
B3U 0020RSWITCH TACTILE SPST-NO |
362 |
|
Datasheet | B3U | Box | Active | SPST-NO | Off-Mom | - | - | - | - | - | - | SMD (SMT) Tab | - | Non-Illuminated | - | - | - | Dust Proof | - | -25°C ~ 70°C |
|
|
B3WZ4023CSWITCH TACTILE SPST-NO |
500 |
|
Datasheet | B3W | Box | Active | SPST-NO | Off-Mom | - | - | Through Hole | - | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | - | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
