Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-1120SWITCH TACTILE SPST-NO 0.05A 24V |
3,730 |
|
- |
BSW | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | - | Through Hole | - | - | - | PC Pin | 6.60mm x 6.00mm | Non-Illuminated | - | - | 230gf | - | - | -25°C ~ 70°C |
|
|
TL1105JAF160Q1RREDSWITCH TACTILE SPST-NO 0.05A 12V |
2,954 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 12.45mm | Side Actuated | PC Pin | 7.20mm x 6.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
PTS820J20KSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,578 |
|
Datasheet | PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
|
TL2203OASWITCH TACTILE SPST-NO 0.1A 30V |
3,031 |
|
Datasheet | TL2203 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 30VDC | Plunger for Cap | Through Hole | 7.70mm | - | Top Actuated | PC Pin | 5.60mm x 5.00mm | Non-Illuminated | - | - | - | - | - | - |
|
|
TSAMW-3.3-260-U-TRSWITCH TACTILE 0.05A 12V |
2,419 |
|
Datasheet | TSAMW | Tape & Reel (TR) | Active | - | - | 0.05A @ 12VDC | Standard | Panel Mount | 3.30mm | - | Top Actuated | SMD (SMT) Tab | 6.30mm x 6.20mm | Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

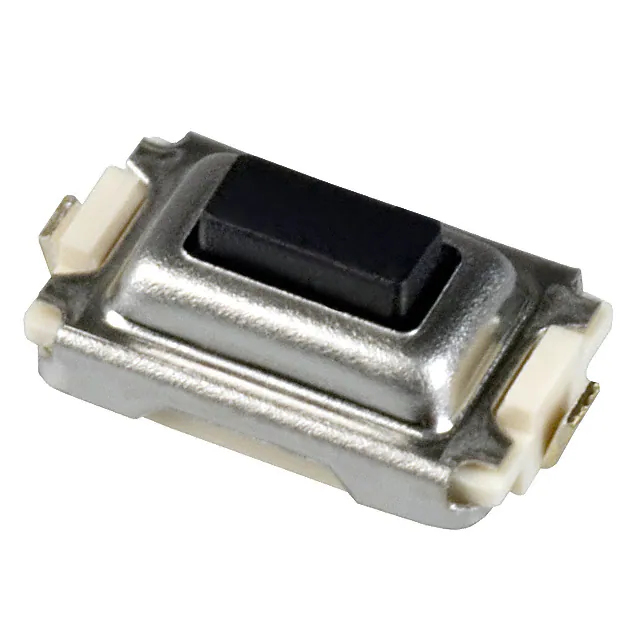

EVQ-PPBA25SWITCH TACTILE SPST-NO 0.05A 12V |
2,001 |
|
Datasheet | EVQPP | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.00mm x 3.70mm | Non-Illuminated | - | - | 160gf | Dust Proof | - | -40°C ~ 85°C |
|

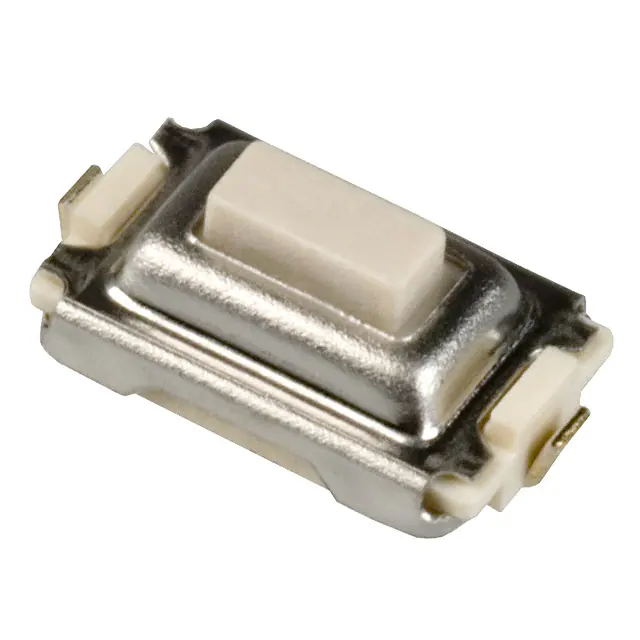

EVQ-PPDA25SWITCH TACTILE SPST-NO 0.05A 12V |
1,752 |
|
Datasheet | EVQPP | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.00mm x 3.70mm | Non-Illuminated | - | - | 240gf | Dust Proof | - | -40°C ~ 85°C |
|
KSC151GSWITCH TACTILE SPST-NO 0.05A 32V |
1,758 |
|
Datasheet | KSC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Without | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 550gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
KSC151JSWITCH TACTILE SPST-NO 0.05A 32V |
2,532 |
|
Datasheet | KSC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Without | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 550gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
KSC441G70SHSWITCH TACTILE SPST-NO 0.05A 32V |
2,386 |
|
Datasheet | KSC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 400gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
KSC441J70SHSWITCH TACTILE SPST-NO 0.05A 32V |
3,335 |
|
Datasheet | KSC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 400gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
TL3320BF130QSWITCH TACTILE SPST-NO 0.05A 12V |
4,516 |
|
Datasheet | TL3320 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | 3.85mm | Side Actuated | Gull Wing | 7.10mm x 6.35mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
|
LS95C4D-TSWITCH TACTILE SPST-NO 0.02A 12V |
3,576 |
|
Datasheet | LS95 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 12VDC | Standard | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.75mm | Non-Illuminated | - | - | 240gf | - | - | - |
|
|
ADTSM62SVTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,335 |
|
- |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 320gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTST63RVSWITCH TACTILE SPST-NO 0.05A 12V |
4,945 |
|
- |
ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTST61KVSWITCH TACTILE SPST-NO 0.05A 12V |
1,721 |
|
- |
ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTST63KVSWITCH TACTILE SPST-NO 0.05A 12V |
4,771 |
|
- |
ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTST62RVSWITCH TACTILE SPST-NO 0.05A 12V |
1,691 |
|
- |
ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTST62KVSWITCH TACTILE SPST-NO 0.05A 12V |
1,145 |
|
- |
ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ADTST61RVSWITCH TACTILE SPST-NO 0.05A 12V |
3,653 |
|
- |
ADTS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -25°C ~ 70°C |
