Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS645SL70TR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
1,152 |
|
Datasheet | PTS645 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
PTS645SM50TR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,027 |
|
Datasheet | PTS645 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
PTS645SM43TR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
1,678 |
|
Datasheet | PTS645 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
FSM2JASWITCH TACTILE SPST-NO 0.05A 24V |
1,309 |
|
Datasheet | FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

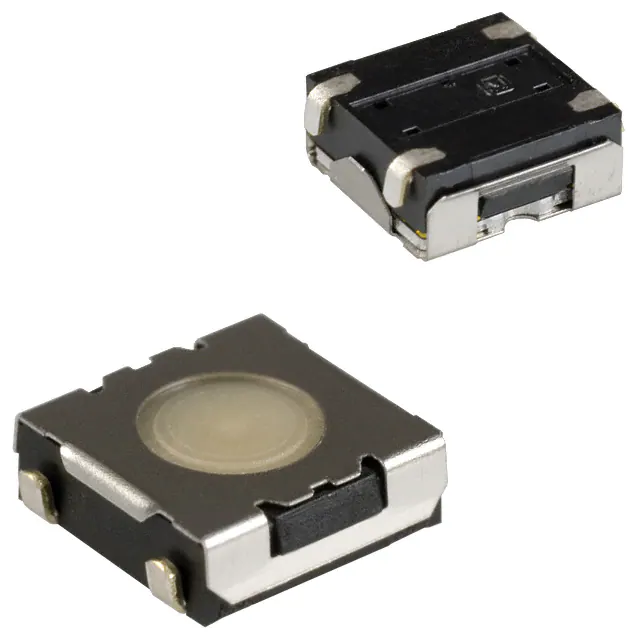

EVQ-QWP01WSWITCH TACTILE SPST-NO 0.02A 15V |
4,510 |
|
Datasheet | EVQQW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
223DM1SAARBSWITCH TACTILE SPST-NO 0.05A 12V |
1,625 |
|
Datasheet | 223D | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | 7.05mm | Side Actuated | Gull Wing | 6.00mm x 5.40mm | Non-Illuminated | - | - | 180gf | - | Board Guide, Tactile Feedback | -40°C ~ 85°C |
|
223DM1SACRBSWITCH TACTILE SPST-NO 0.05A 12V |
1,595 |
|
Datasheet | 223D | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | 7.05mm | Side Actuated | Gull Wing | 6.00mm x 5.40mm | Non-Illuminated | - | - | 350gf | - | Board Guide, Tactile Feedback | -40°C ~ 85°C |
|
223GMSAARSWITCH TACTILE SPST-NO 0.05A 12V |
2,101 |
|
Datasheet | 222G | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Edge Mount, Right Angle | - | 1.70mm | Side Actuated | SMD (SMT) Tab | 4.80mm x 2.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -40°C ~ 85°C |
|
223GMSAARKSWITCH TACTILE SPST-NO 0.05A 12V |
4,722 |
|
Datasheet | 222G | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Edge Mount, Right Angle | - | 1.70mm | Side Actuated | SMD (SMT) Tab | 4.80mm x 2.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -40°C ~ 85°C |
|
|
LS75C4D4SWITCH TACTILE SPST-NO 0.02A 12V |
4,306 |
|
- |
LS75 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Standard | Surface Mount | 0.50mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.90mm | Non-Illuminated | - | - | 245gf | IP67 - Dust Tight, Waterproof | - | - |
|
PTS525SM08SWITCH TACTILE SPST-NO 0.05A 12V |
2,363 |
|
Datasheet | PTS525 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.80mm | - | Top Actuated | Gull Wing | 5.25mm x 5.25mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 60°C |
|
|
TL1105JF100QSWITCH TACTILE SPST-NO 0.05A 12V |
1,897 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.35mm | Side Actuated | PC Pin | 7.20mm x 6.50mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
|
LL3301NF065QJSWITCH TACTILE SPST-NO 0.05A 12V |
1,400 |
|
Datasheet | LL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 65gf | - | - | -20°C ~ 70°C |
|
|
FSMRA2JSWITCH TACTILE SPST-NO 0.05A 24V |
4,307 |
|
Datasheet | FSMRAJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.86mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 105°C |
|
|
TL3301CF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
4,335 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3301DF100QJSWITCH TACTILE SPST-NO 0.05A 12V |
3,754 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
TL3301FF100QJSWITCH TACTILE SPST-NO 0.05A 12V |
4,766 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
TL3301FF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
3,568 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3301FF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,543 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
TL3342AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
1,010 |
|
- |
TL3342 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | - | - | Top Actuated | Gull Wing | 4.90mm x 4.90mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
