Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

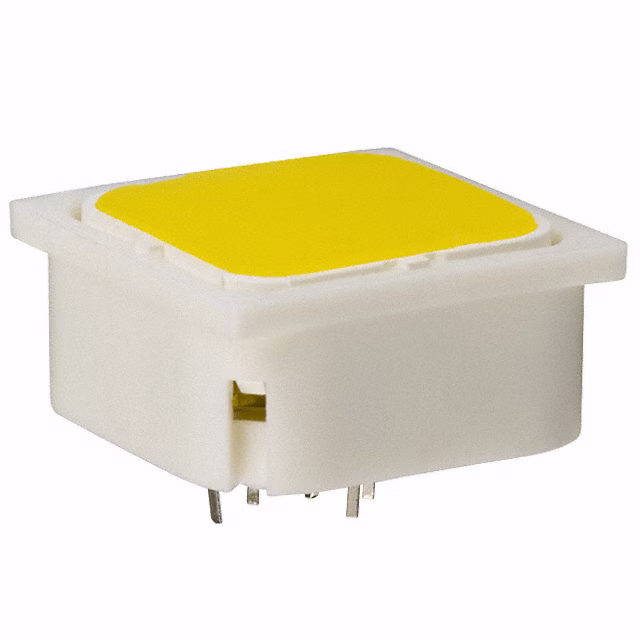

3.14001.0130000SWITCH TACTILE SPST-NO 0.1A 42V |
1,416 |
|
Datasheet | RF19 | Tube | Obsolete | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Yellow | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
1.14001.501/0000SWITCH TACTILE SPST-NO 0.1A 42V |
2,118 |
|
Datasheet | RACON 12 | Tube | Obsolete | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 80°C |
|
1.14001.5020000SWITCH TACTILE SPST-NO 0.1A 42V |
4,501 |
|
Datasheet | RACON 12 | Tube | Obsolete | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 80°C |
|

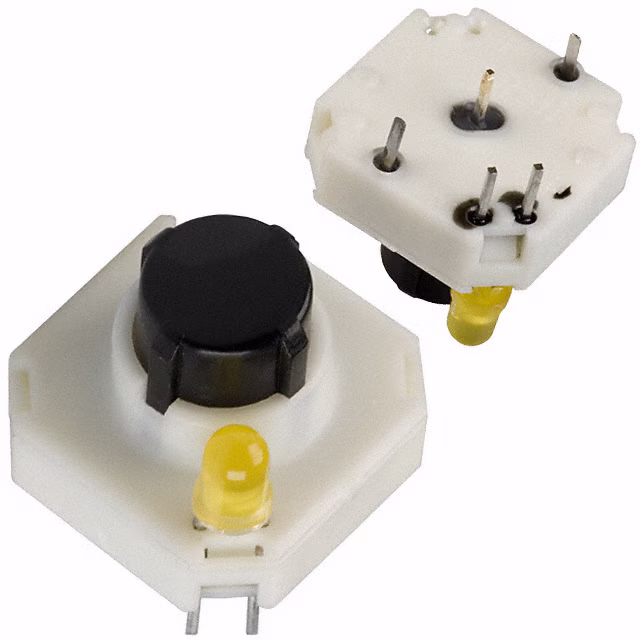

3.14100.8430000SWITCH TACTILE SPST-NO 0.25A 35V |
3,150 |
|
Datasheet | RF15R | Tube | Obsolete | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Round Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|
1.14001.5060000SWITCH TACTILE SPST-NO 0.1A 35V |
4,972 |
|
Datasheet | RACON 12 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 357gf | - | - | -40°C ~ 90°C |
|
|
1.14001.6010000SWITCH TACTILE |
3,579 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1.14001.6020000SWITCH TACTILE |
1,981 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1.14001.6030000SWITCH TACTILE SPST-NO 0.1A 35V |
2,169 |
|
Datasheet | RACON 12 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Surface Mount | 5.05mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 255gf | - | - | -40°C ~ 90°C |
|
|
1.14001.8010000SWITCH TACTILE SPST-NO 0.1A 35V |
3,903 |
|
Datasheet | RACON 12 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 479gf | - | - | -40°C ~ 90°C |
|
|
1.14001.8020000SWITCH TACTILE SPST-NO 0.1A 35V |
4,007 |
|
Datasheet | RACON 12 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 4.95mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 479gf | - | - | -40°C ~ 90°C |
