Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS06-667-55-R-160-G-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
1,987 |
|
Datasheet | TS06 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.50mm | - | Top Actuated | Gull Wing | 6.70mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
TS06-667-50-BK-260-G-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
1,983 |
|
Datasheet | TS06 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.70mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS06-667-50-R-260-G-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
1,972 |
|
Datasheet | TS06 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.70mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS06-667-43-BK-160-G-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
1,949 |
|
Datasheet | TS06 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.70mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
|
TS06-667-50-R-160-G-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
1,946 |
|
Datasheet | TS06 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.70mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
EVQ-PBG07KSWITCH TACTILE SPST-NO 0.02A 15V |
634 |
|
Datasheet | EVQPB | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -20°C ~ 70°C |
|
EVQ-PC705KSWITCH TACTILE SPST-NO 0.02A 15V |
640 |
|
Datasheet | EVQPC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 4.75mm | Side Actuated | PC Pin | 7.50mm x 6.95mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVQ-11V09KSWITCH TACTILE SPST-NO 0.02A 15V |
166 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PC205KSWITCH TACTILE SPST-NO 0.02A 15V |
707 |
|
Datasheet | EVQPC | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 4.75mm | Side Actuated | PC Pin | 7.50mm x 6.95mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PC605KSWITCH TACTILE SPST-NO 0.02A 15V |
426 |
|
Datasheet | EVQPC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 4.75mm | Side Actuated | PC Pin | 7.50mm x 6.95mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
CR1104SX5.0F200IP67 AMMO-PACK THROUGH-HOLE TACT |
400 |
|
Datasheet | * | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
95C06D3RATSWITCH TACTILE SPST-NO 0.05A 12V |
4,606 |
|
Datasheet | 95C | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.36mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
EVQ-P7K01KSWITCH TACTILE SPST-NO 0.05A 12V |
477 |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | J Lead | 4.30mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
1977263-1SWITCH TACTILE SPST-NO 0.05A 24V |
4,390 |
|
Datasheet | FSM1LP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 105°C |
|
EVQ-QXN03WSWITCH TACTILE SPST-NO 0.02A 15V |
130 |
|
Datasheet | EVQQX | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
MJTPSHWSWITCH TACTILE SPST-NO 0.05A 12V |
3,132 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 3.10mm | - | Top Actuated | PC Pin | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|

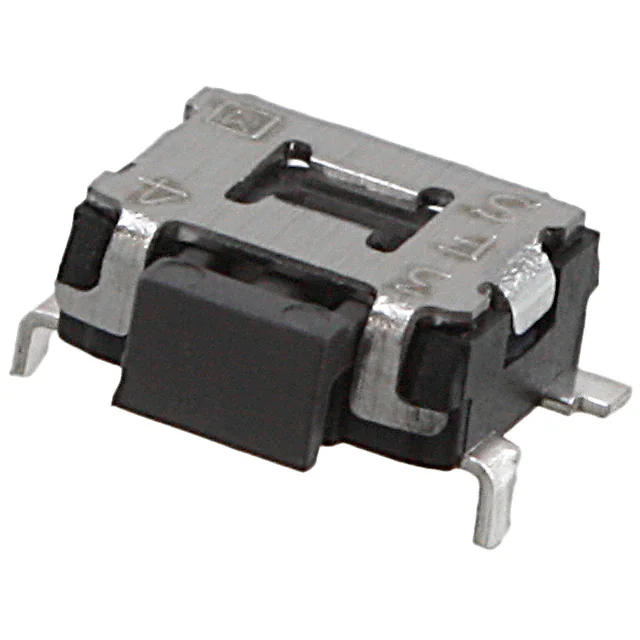

EVQ-P3401KSWITCH TACTILE SPST-NO 0.05A 12V |
472 |
|
Datasheet | EVQP3 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
|
1571634-2SWITCH TACTILE SPST-NO 0.05A 24V |
961 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
95C04B3TSWITCH TACTILE SPST-NO 0.05A 12V |
1,492 |
|
Datasheet | 95C | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
PTS831GM140SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
792 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.40mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.75mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
