Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSMIJ61BR04SWITCH TACTILE SPST-NO 0.05A 12V |
2,620 |
|
Datasheet | FSMIJ | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Red | - | 100gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
FSMIJ62AA04SWITCH TACTILE SPST-NO 0.05A 12V |
1,148 |
|
Datasheet | FSMIJ | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Orange | - | 160gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
TL6215VF450GNNSWITCH TACTILE SPST-NO 0.05A 12V |
2,646 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 5.35mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Green | 2.1 VDC | 450gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
FSMIJ65AA04SWITCH TACTILE SPST-NO 0.05A 12V |
4,831 |
|
Datasheet | FSMIJ | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Orange | - | 520gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
FSMIJ65BR04SWITCH TACTILE SPST-NO 0.05A 12V |
2,785 |
|
Datasheet | FSMIJ | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Red | - | 520gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
320.21E11BLKSWITCH TACT SPST-NO 0.025A 50V |
1,153 |
|
Datasheet | 320 | Tray | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Black Cap | -20°C ~ 70°C |
|
ME016.0F3502SWITCH TACTILE SPST-NO 0.05A 24V |
1,659 |
|
Datasheet | ME | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 6.00mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
228GMVABFRSWITCH TACTILE SPST-NO 0.05A 12V |
4,718 |
|
Datasheet | 228G | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.80mm | - | Top Actuated | Gull Wing | 6.00mm x 5.00mm | Illuminated | LED, Blue | - | 160gf | - | - | -20°C ~ 70°C |
|
1241.1051SWITCH TACTILE |
4,880 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1241.1624.2SWITCH TACTILE SPST-NO 0.05A 42V |
4,021 |
|
Datasheet | PMS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 42VDC | Standard | Through Hole | 9.10mm | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | - | - | 180gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|
TL6215VF450RNNSWITCH TACTILE SPST-NO 0.05A 12V |
4,087 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 5.35mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Red | 1.95 VDC | 450gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL3265GQTCLRSWITCH TACTILE SPST-NO 0.05A 12V |
3,320 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 12.70mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, Green | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3265BQNNSWITCH TACTILE SPST-NO 0.05A 12V |
4,520 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, Blue | - | 160gf | - | - | -40°C ~ 85°C |
|
1241.1032.7SWITCH TACTILE SPST-NO 0.05A 24V |
3,414 |
|
Datasheet | MTG Green | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | - | - | 250gf | IP40 | Tactile Feedback | -25°C ~ 85°C |
|
1241.1055.7058SWITCH TACT SPST-NO 0.125A 48V |
100 |
|
Datasheet | MTP | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 48VDC | Round Button | Through Hole | 5.85mm | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | - | - | 235gf | IP40 | - | -25°C ~ 85°C |
|
TL6215VF450BNNSWITCH TACTILE SPST-NO 0.05A 12V |
2,319 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 5.35mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Blue | 3.3 VDC | 450gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
JB15KP-4HHSWITCH TACTILE SPST-NO 0.05A 24V |
3,709 |
|
Datasheet | JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4BBSWITCH TACT SPST-NO 0.125A 24V |
3,055 |
|
Datasheet | JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

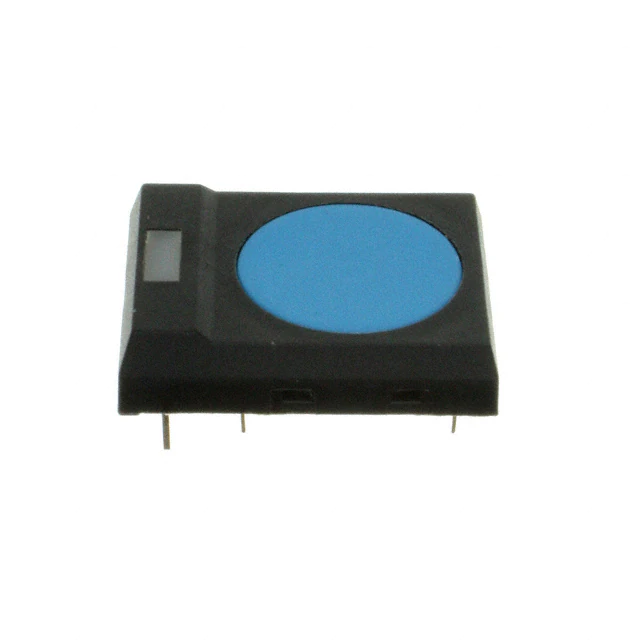

JF15RP2GCSWITCH TACTILE SPST-NO 0.05A 24V |
3,391 |
|
Datasheet | JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
440BS67082622SWITCH TACTILE SPST-NO 0.05A 12V |
2,832 |
|
Datasheet | WS-TATL | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Blue | 3.2 VDC | 220gf | - | - | -40°C ~ 85°C |
