Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS03-66-50-BK-160-LCR-D-67SWITCH TACTILE SPST-NO 0.05A 12V |
111 |
|
Datasheet | TS03 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.10mm x 6.10mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -30°C ~ 80°C |
|
TL59BF160QSWITCH TACTILE SPST-NO 0.05A 12V |
1,556 |
|
Datasheet | TL59 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
430156070736SWITCH TACTILE SPST-NO 0.05A 12V |
580 |
|
Datasheet | WS-TATV | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 85°C |
|
430186050716SWITCH TACTILE SPST-NO 0.05A 12V |
425 |
|
Datasheet | WS-TATV | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
KSC421J 70SH LFS OFSWITCH TACTILE SPST-NO 0.05A 32V |
1,937 |
|
Datasheet | KSC-OF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.10mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 168gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
430152080836SWITCH TACTILE SPST-NO 0.05A 12V |
1,159 |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 85°C |
|
430152130836SWITCH TACTILE SPST-NO 0.05A 12V |
1,066 |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 85°C |
|
431256058726SWITCH TACTILE SPST-NO 0.05A 12V |
588 |
|
Datasheet | WS-TATU | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -40°C ~ 85°C |
|
SKHHANA010SWITCH TACTILE SPST-NO 0.05A 12V |
426 |
|
Datasheet | SKHH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 90°C |
|

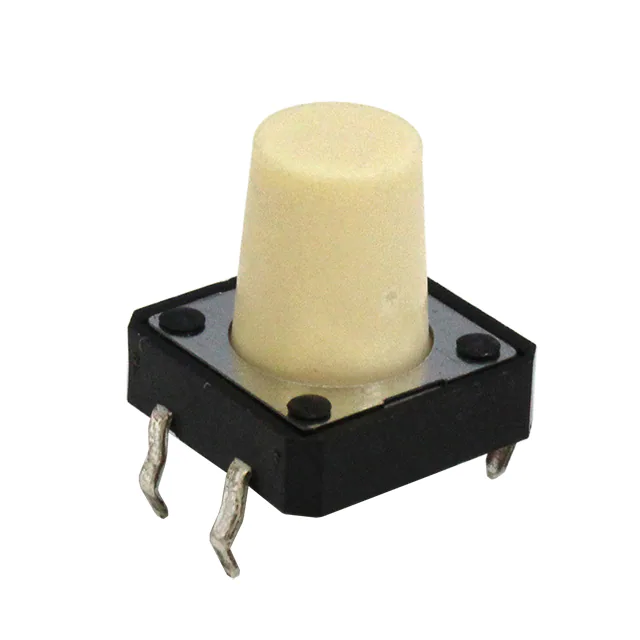

CT1103EF180SWITCH TACTILE SPST-NO 0.05A 50V |
387 |
|
Datasheet | CT1103 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 180gf | - | - | -40°C ~ 85°C |
|
430172043816SWITCH TACTILE SPST-NO 0.05A 12V |
256 |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
2425753-2SWITCH TACTILE SPST-NO 0.02A 15V |
251 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Round Button | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 240gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
430172085816SWITCH TACTILE SPST-NO 0.05A 12V |
1,133 |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.50mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
434121050816SWITCH TACTILE SPST-NO 0.05A 12V |
570 |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | SMD (SMT) Tab | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
KSC1131J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
906 |
|
Datasheet | KSC11 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.90mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 326gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
SKHHARA010SWITCH TACTILE SPST-NO 0.05A 12V |
530 |
|
Datasheet | SKHH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 90°C |
|
430152043836SWITCH TACTILE SPST-NO 0.05A 12V |
1,213 |
|
Datasheet | WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 360gf | - | - | -40°C ~ 85°C |
|
TL6170AF250QGSWITCH TACTILE SPST-NO 0.05A 12V |
966 |
|
Datasheet | TL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 6.30mm x 6.30mm | Non-Illuminated | - | - | 250gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
SKHHLWA010SWITCH TACTILE SPST-NO 0.05A 12V |
962 |
|
Datasheet | SKHH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.50mm x 6.55mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 90°C |
|
|
SKHHBWA010SWITCH TACTILE SPST-NO 0.05A 12V |
655 |
|
Datasheet | SKHH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
