Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
228CMVARGBFRSWITCH TACTILE SPST-NO 0.05A 12V |
807 |
|
Datasheet | 228C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, Blue/Green/Red | - | 160gf | - | - | -25°C ~ 70°C |
|
6CJ1NOPRSWITCH TACTILE SPST-NO 0.05A 24V |
6,107 |
|
Datasheet | Ultramec™6C | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 8.00mm x 8.00mm | Non-Illuminated | - | - | 370gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
JB15FHSWITCH TACTILE SPST-NO 0.05A 24V |
1,381 |
|
Datasheet | JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole, Right Angle | - | 1.46mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
1241.1619.23SWITCH TACTILE SPST-NO 0.05A 42V |
8,144 |
|
Datasheet | SMS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 42VDC | Standard | Surface Mount | 7.75mm | - | Top Actuated | J Lead | 11.40mm x 11.40mm | Non-Illuminated | - | - | 220gf | IP67 - Dust Tight, Waterproof | Tactile Feedback | -40°C ~ 85°C |
|
3.14.100.006/0000SWITCH TACTILE SPST-NO 0.25A 35V |
412 |
|
Datasheet | RF15 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|
3ETH9-08.0SWITCH TACTILE SPST-NO 0.05A 24V |
37,980 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3CTH9SWITCH TACTILE SPST-NO 0.05A 24V |
44,020 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5ESH920SWITCH TACTILE SPST-NO 0.05A 24V |
27,112 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5ESH935SWITCH TACTILE SPST-NO 0.05A 24V |
15,037 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5ESH965SWITCH TACTILE SPST-NO 0.05A 24V |
6,965 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 650gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3ESH9SWITCH TACTILE SPST-NO 0.05A 24V |
6,537 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3FTH9SWITCH TACTILE SPST-NO 0.05A 24V |
40,662 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
TL1265RQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
10,326 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Red | 2.3 VDC | 160gf | - | Clear Cap | -20°C ~ 70°C |
|

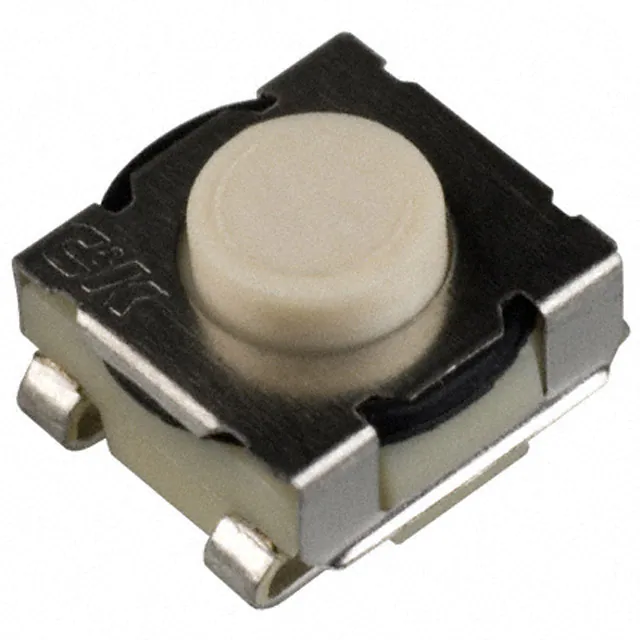

KT11P3JM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
7,525 |
|
Datasheet | KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1VA @ 32VAC/DC | Standard | Surface Mount | 4.12mm | - | Top Actuated | J Lead | 6.38mm x 6.22mm | Non-Illuminated | - | - | 300gf | IP57 - Dust Protected, Waterproof | Sealed | -40°C ~ 90°C |
|
TL1260GQRBLKSWITCH TACTILE SPST-NO 0.05A 12V |
5,918 |
|
Datasheet | TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 6.85mm | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green | 2.3 VDC | 160gf | - | Black Cap | -20°C ~ 70°C |
|
5GTH935SWITCH TACTILE SPST-NO 0.05A 24V |
20,124 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GSH935SWITCH TACTILE SPST-NO 0.05A 24V |
11,290 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GTH920SWITCH TACTILE SPST-NO 0.05A 24V |
5,012 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GSH920SWITCH TACTILE SPST-NO 0.05A 24V |
1,563 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|

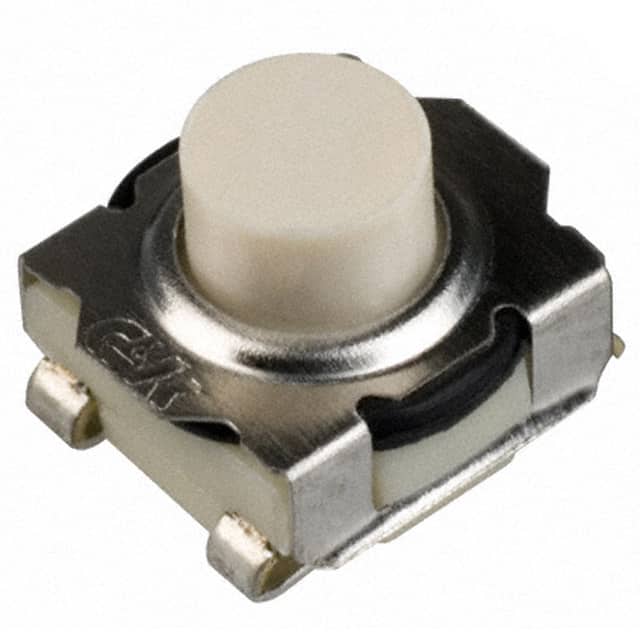

KT11P2JM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
4,762 |
|
Datasheet | KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1VA @ 32VAC/DC | Standard | Surface Mount | 5.36mm | - | Top Actuated | J Lead | 6.38mm x 6.22mm | Non-Illuminated | - | - | 300gf | IP57 - Dust Protected, Waterproof | Sealed | -40°C ~ 90°C |
