Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

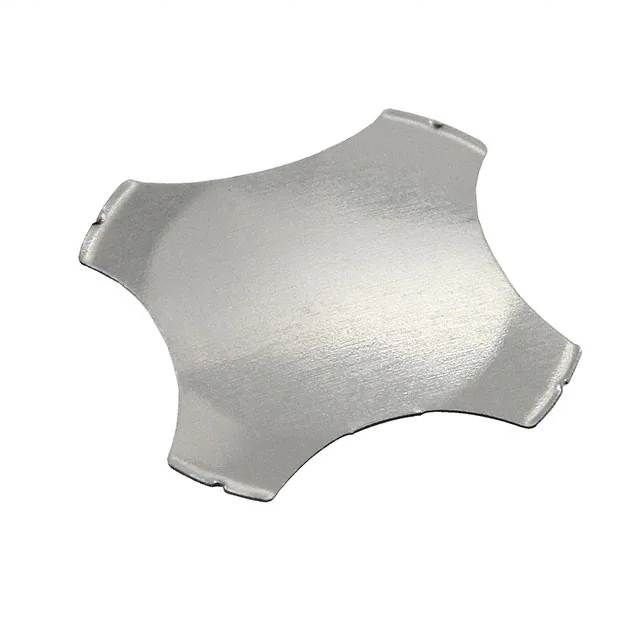

5134TRSWITCH TACT SPST-NO 0.012A 24V |
104,470 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.50mm | - | Top Actuated | SMD (SMT) Tab | 7.00mm x 7.00mm | Non-Illuminated | - | - | 280gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5133TRSWITCH TACT SPST-NO 0.012A 24V |
3,937 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.45mm | - | Top Actuated | SMD (SMT) Tab | 7.00mm x 7.00mm | Non-Illuminated | - | - | 220gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5135TRSWITCH TACT SPST-NO 0.012A 24V |
10,418 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 7.00mm x 7.00mm | Non-Illuminated | - | - | 340gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5136TRSWITCH TACT SPST-NO 0.012A 24V |
8,919 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 7.00mm x 7.00mm | Non-Illuminated | - | - | 400gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5175TRSWITCH TACT SPST-NO 0.012A 24V |
40,971 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.75mm | - | Top Actuated | SMD (SMT) Tab | 9.90mm x 9.90mm | Non-Illuminated | - | - | 340gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5154TRSWITCH TACT SPST-NO 0.012A 24V |
29,412 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 8.40mm x 8.40mm | Non-Illuminated | - | - | 280gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5155TRSWITCH TACT SPST-NO 0.012A 24V |
12,172 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 8.40mm x 8.40mm | Non-Illuminated | - | - | 340gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5176TRSWITCH TACT SPST-NO 0.012A 24V |
11,294 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.80mm | - | Top Actuated | SMD (SMT) Tab | 9.90mm x 9.90mm | Non-Illuminated | - | - | 420gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5156TRSWITCH TACT SPST-NO 0.012A 24V |
8,510 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.80mm | - | Top Actuated | SMD (SMT) Tab | 8.40mm x 8.40mm | Non-Illuminated | - | - | 400gf | - | Flex Membrane | -40°C ~ 105°C |
|
|
5173TRSWITCH TACT SPST-NO 0.012A 24V |
8,365 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.012A @ 24VDC | Snap Dome | Surface Mount | 0.65mm | - | Top Actuated | SMD (SMT) Tab | 9.90mm x 9.90mm | Non-Illuminated | - | - | 220gf | - | Flex Membrane | -40°C ~ 105°C |
