Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCSLPT4848C5DTRSWITCH TACTILE SPST-NO 0.05A 12V |
2,500 |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | J Lead | 4.80mm x 4.80mm | Non-Illuminated | - | - | 360gf | - | - | -30°C ~ 85°C |
|
|
MCSLPT4848A2DTRSWITCH TACTILE SPST-NO 0.05A 12V |
4,904 |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | J Lead | 4.80mm x 4.80mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
|
MCSLPT4848A1DTRSWITCH TACTILE SPST-NO 0.05A 12V |
4,836 |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | J Lead | 4.80mm x 4.80mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
CS11028.5F260SWITCH TACTILE SPST-NO 0.05A 50V |
4,429 |
|
Datasheet | CS1102 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Surface Mount | 8.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
CS1109A2.9SWITCH TACTILE SPST-NO 0.05A 50V |
3,185 |
|
Datasheet | CS1109 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 2.90mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CS11103.1SWITCH TACTILE SPST-NO 0.05A 50V |
2,996 |
|
Datasheet | CS1110 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CS11092.9SWITCH TACTILE SPST-NO 0.05A 50V |
2,833 |
|
Datasheet | CS1109 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 2.90mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
CS11102.3SWITCH TACTILE SPST-NO 0.05A 50V |
2,804 |
|
Datasheet | CS1110 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 2.30mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CS11027.5F260SWITCH TACTILE SPST-NO 0.05A 50V |
2,786 |
|
Datasheet | CS1102 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

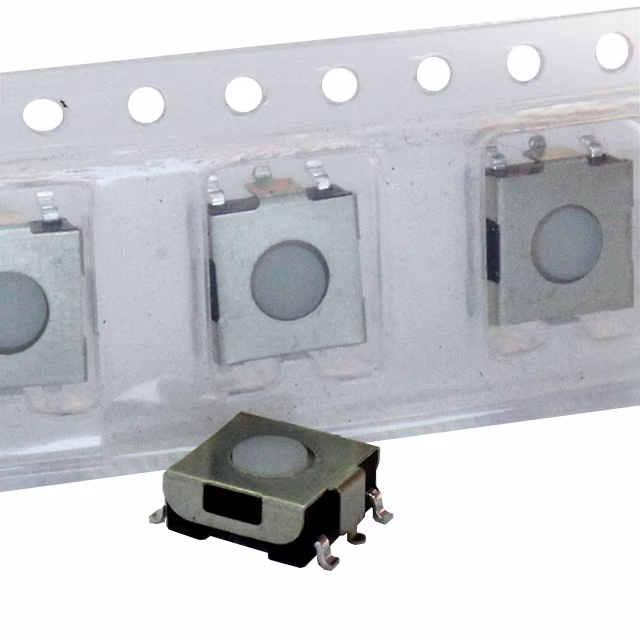

CS11093.1SWITCH TACTILE SPST-NO 0.05A 50V |
1,090 |
|
Datasheet | CS1109 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CS1213AJF160SWITCH TACTILE SPST-NO 0.05A 50V |
4,762 |
|
Datasheet | CS1213 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CS1213BJF160SWITCH TACTILE SPST-NO 0.05A 50V |
2,480 |
|
Datasheet | CS1213 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CS1214GF260SWITCH TACTILE SPST-NO 0.05A 50V |
8,000 |
|
Datasheet | CS1214 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Flush | Surface Mount | 0.80mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
CS1214AJF160SWITCH TACTILE SPST-NO 0.05A 50V |
7,998 |
|
Datasheet | CS1214 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CS11014.3F260JSWITCH TACTILE SPST-NO 0.05A 50V |
2,990 |
|
Datasheet | CS1101 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.05mm x 3.50mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
CS33043.4JSWITCH TACTILE SPST-NO 0.05A 50V |
2,943 |
|
Datasheet | CS3304 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | J Lead | 6.40mm x 6.25mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
CS11014.3F160JSWITCH TACTILE SPST-NO 0.05A 50V |
2,835 |
|
Datasheet | CS1101 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.05mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CS11014.3F160SWITCH TACTILE SPST-NO 0.05A 50V |
2,588 |
|
Datasheet | CS1101 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.05mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

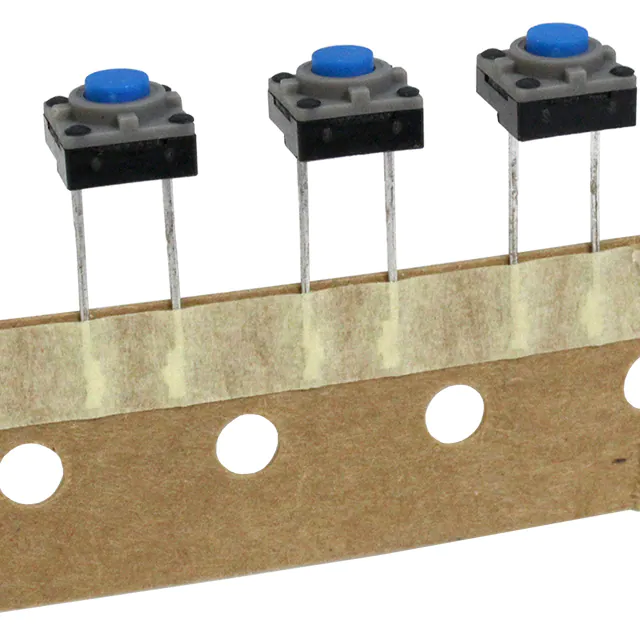

CR1104S5.0LF200SWITCH TACTILE SPST-NO 0.05A 48V |
1,434 |
|
Datasheet | CR1104S | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 48VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|
CS1215AJF160SWITCH TACTILE SPST-NO 0.05A 50V |
5,774 |
|
Datasheet | CS1215 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Oval Button | Surface Mount | - | 2.50mm | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
