Switch Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Kit Type | Quantity | Current - Switching | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Circuit | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H-8367914 TACT SWITCH DESIGN KIT |
4,196 |
|
Datasheet | 7914 | Case | Active | Tactile | 70 Pieces (8 Values - Mixed Quantities) | 100mA (AC/DC) | 16V | 16V | Flush, Standard | SPST-NO | Surface Mount; Surface Mount, Right Angle; Through Hole | Gull Wing; J Lead; PC Pin; SMD (SMT) |
|
PANSW2-KITKIT TACT SWITCHES SMD & PCB |
3,920 |
|
- |
- | Book | Discontinued at Digi-Key | Tactile | 100 Pieces (10 Values - 10 Each) | 50mA, 20mA (DC) | - | 15V, 12V | Standard | SPST-NO | Assorted Surface Mount and Through Hole | Gull Wing; J Lead; PC Pin; SMD (SMT) |
|
|
KIT28-MEDICALKIT 28, MEDICAL SWITCH SAMPLES |
2,015 |
|
- |
- | Bulk | Active | Keylock, Pushbutton, Illuminated, Pushbutton, Rocker, Toggle, Illuminated, Toggle, Tactile, Illuminated, Tactile | 14 Pieces (14 Values - 1 Each) | 3A, 6A, 10A, 16A (AC); 0.4VA (AC/DC); 50mA (DC) | 28V, 125V, 250V | 24V, 28V | Assorted | Assorted | Assorted Panel Mount and Through Hole | PC Pin; Screw Terminal; Solder Lug; Quick Connect - 0.250" (6.3mm); Solder, Quick Connect - 0.110" (2.8mm) |
|
SW-KITSWITCH ASSORTMENT |
1,316 |
|
- |
- | Case | Active | Slide | 120 Pieces (14 Values - Mixed Quantities) | 11A, 6A, 50mA (AC); 50mA (DC) | 125V | 125V | Standard | Assorted | Panel Mount; Through Hole, Right Angle; Through Hole | PC Pin; Press-Fit; Solder Lug; Wire Wrap |
|
|
KIT23-INDUSTRIALKIT 23, INDUSTRIAL SAMPLE KIT |
3,535 |
|
- |
- | Bulk | Active | Keylock, Pushbutton, Illuminated, Pushbutton, Rocker, Toggle | 16 Pieces (16 Values - 1 Each) | 3A, 5A, 6A, 10A, 15A, 16A, 20A, 30A (AC) | 125V | - | Assorted | Assorted | Assorted Panel Mount and Through Hole | PC Pin; Screw Terminal; Solder Lug; Quick Connect - 0.250" (6.3mm); Solder, Quick Connect - 0.187" (4.7mm); Solder, Quick Connect - 0.110" (2.8mm) |
|
DESIGN KITKIT TACTILE, SLIDE, |
4,728 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - |
|
SAMPLE BOOKKIT SWITCH SHEET |
4,034 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - |
|
|
POP2020POP, COMPLETE KIT, MULTI-VOLTAGE |
4,988 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - |
|
SAMPLE KIT SMT TACTKIT SMT SUBMINIATURE TACT SWITCH |
3,837 |
|
- |
- | Case | Obsolete | Tactile | 160 Pieces (16 Values - 10 Each) | 50mA (DC) | - | 50V, 15V, 12V | Rectangular Button, Snap Dome, Standard | SPST-NO | Surface Mount; Surface Mount, Right Angle | Gull Wing |
|

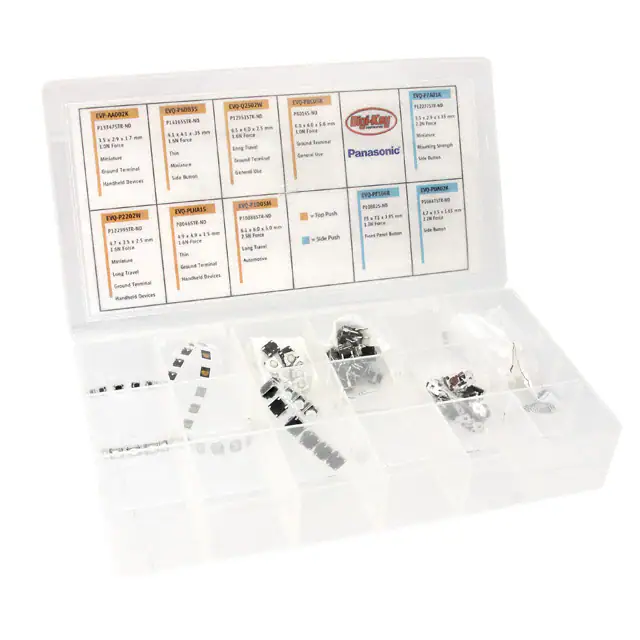

PANSW1-KITKIT TACT SWITCH 10 PARTS 10 EACH |
3,222 |
|
- |
- | Case | Obsolete | Tactile | 100 Pieces (10 Values - 10 Each) | 50mA, 20mA (DC) | - | 15V, 12V | Standard | SPST-NO | Assorted Surface Mount and Through Hole | Gull Wing; J Lead; PC Pin |
|
LS-00001TACTILE BUTTON ASSORTMENT 12PK |
3,601 |
|
Datasheet | - | Retail Package | Active | Tactile | 12 Pieces (4 Values - 3 Each) | - | - | - | Round Button | SPST-NO | Through Hole | PC Pin |
