Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
29SM-K250-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
1,484 |
|
Datasheet | 29SM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.6 A | 200.0 | 1.8° | ±5% | 82.15 / 580 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 2 Ohms | Round Shaft |
|

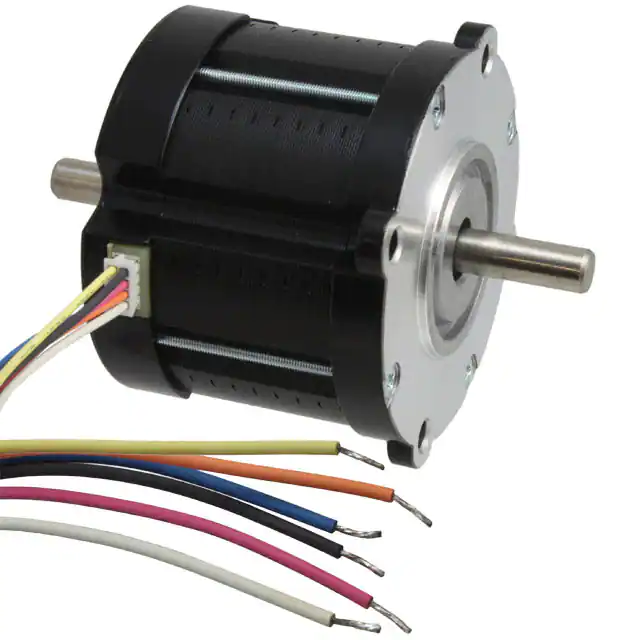

29SM-K035-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,621 |
|
Datasheet | 29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2.2 A | 200.0 | 1.8° | ±5% | 127.47 / 900 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.55 Ohms | Round Shaft |
|

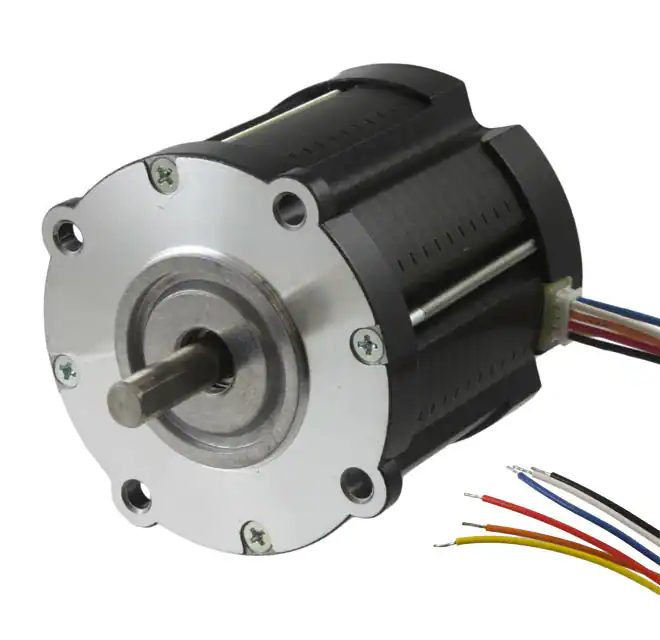

29SM-K138-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
2,396 |
|
Datasheet | 29SM | Bulk | Active | Hybrid | Unipolar | 24VDC | 2.6 A | 200.0 | 1.8° | ±5% | 169.96 / 1200 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.25 Ohms | Round Shaft |
|

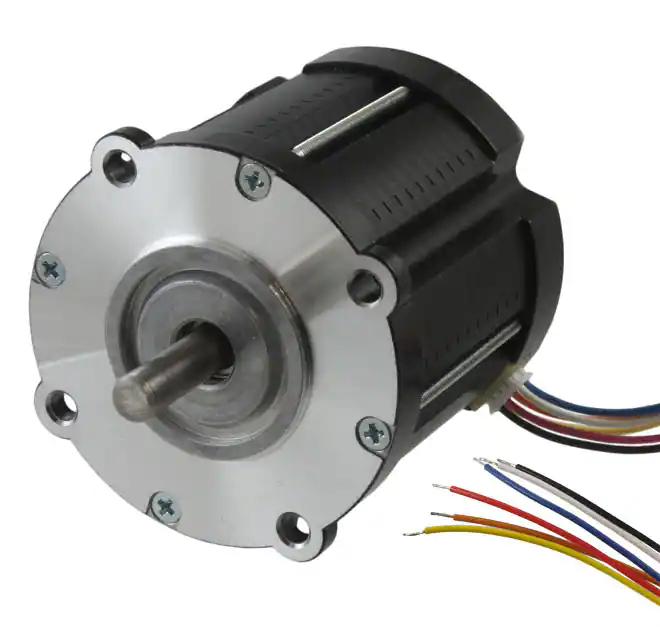

29SM-K138-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
3,118 |
|
Datasheet | 29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2.6 A | 200.0 | 1.8° | ±5% | 169.96 / 1200 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.25 Ohms | Round Shaft |
|

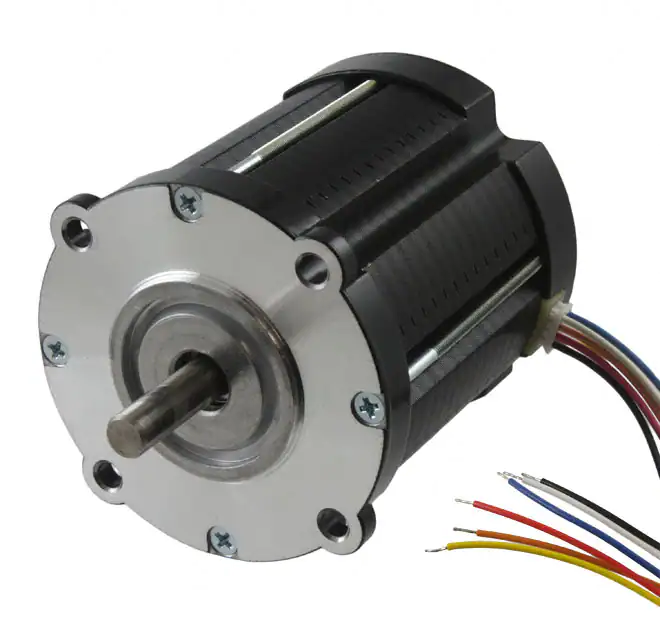

29SM-K711-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,083 |
|
Datasheet | 29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 205.36 / 1450 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 1 Ohms | Round Shaft |
|
34KM-K012-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
3,895 |
|
Datasheet | 34KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 354.07 / 2500 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | 1.457" (37.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 1.1 Ohms | Double Flatted Shaft |
|
|
34KM-K006-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
4,912 |
|
Datasheet | 34KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 4.8 A | 200.0 | 1.8° | ±5% | 354.07 / 2500 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | 1.457" (37.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.45 Ohms | Double Flatted Shaft |
|
|
34KM-K023-99WSTEP MOTOR HYBRID DUAL SHAFT 24V |
3,877 |
|
Datasheet | 34KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.9 A | 200.0 | 1.8° | ±5% | 354.07 / 2500 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | 1.457" (37.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 2.8 Ohms | Double Flatted Shaft |
|
|
34KM-K012-99WSTEP MOTOR HYBRID DUAL SHAFT 24V |
3,646 |
|
Datasheet | 34KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 354.07 / 2500 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | 1.457" (37.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 1.1 Ohms | Double Flatted Shaft |
|
|
34KM-K006-99WSTEP MOTOR HYBRID DUAL SHAFT 24V |
1,601 |
|
Datasheet | 34KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 4.8 A | 200.0 | 1.8° | ±5% | 354.07 / 2500 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | 1.457" (37.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.45 Ohms | Double Flatted Shaft |
