Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM160807-1SPEAKER 7OHM 700MW TOP PORT 93DB |
303 |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 10 kHz | 850Hz | 7 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | - | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SP280304-2SPEAKER 4OHM 2W TOP PORT 94DB |
216 |
|
Datasheet | Dynamis | Tray | Active | Magnetic | General Purpose | 380 Hz ~ 20 kHz | 380Hz | 4 Ohms | 94.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
|
SP400804-4SPEAKER 4OHM 2W TOP PORT 100DB |
276 |
|
Datasheet | Agile | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 10 kHz | 800Hz | 4 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Paper/Cloth | - | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
SM600804-1SPEAKER 4OHM 2W TOP PORT 104DB |
1,360 |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 800Hz | 4 Ohms | 104.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | Waterproof | - | Wire Leads | - |
|
SW330204-1SPEAKER 4OHM 2.5W TOP PORT 99DB |
1,050 |
|
Datasheet | Dynamis, SW | Tray | Active | Magnetic | General Purpose | 280 Hz ~ 20 kHz | 280Hz | 4 Ohms | 99.00 | 100mm | Sound Pressure Level (SPL) | 2.5 W | 3 W | Top | Round | Aluminum (AI) | - | IP67 - Dust Tight, Waterproof | - | Solder Eyelet(s) | - |
|
SM450208-2SPEAKER 8OHM 3W TOP PORT 88DB |
1,721 |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 10 kHz | 200Hz | 8 Ohms | 88.00 | 100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | - |
|
SM450204-1SPEAKER 4OHM 3W TOP PORT 88DB |
1,139 |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 10 kHz | 200Hz | 4 Ohms | 88.00 | 100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | - |
|

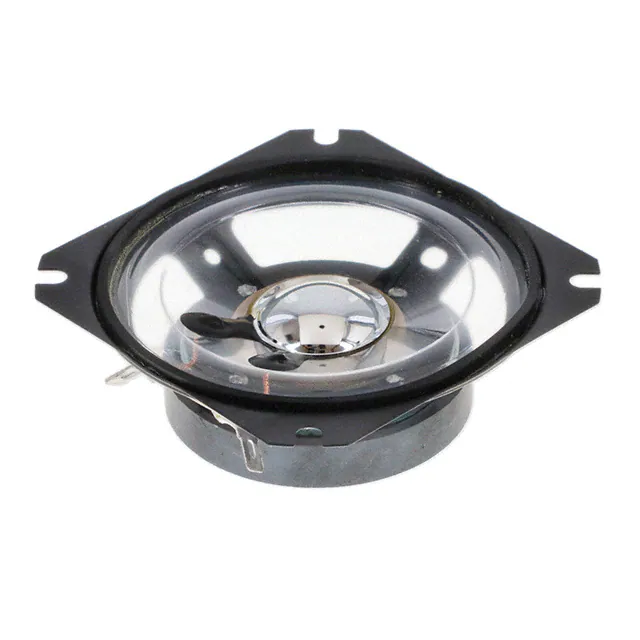

SW870508-1SPEAKER 8OHM 10W TOP PORT 96DB |
405 |
|
Datasheet | SW | Tray | Active | Magnetic | General Purpose | 390 Hz ~ 7 kHz | 390Hz | 8 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Polyethylenimine (PEI) | - | Waterproof | - | Quick Connect | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
|
SM131108-1SPEAKER 8OHM 200MW TOP PORT 85DB |
1,178 |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 5 kHz | 1.1kHz | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|
SM150908-2SPEAKER 8OHM 500MW TOP PORT 85DB |
1,126 |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 920 Hz ~ 5 kHz | - | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.591" Dia (15.00mm) |
