Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS0381M-L152SPEAKER 8OHM 200MW TOP PORT 80DB |
4,247 |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 800 Hz ~ 3.4 kHz | 800Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.496" Dia (38.00mm) |
|

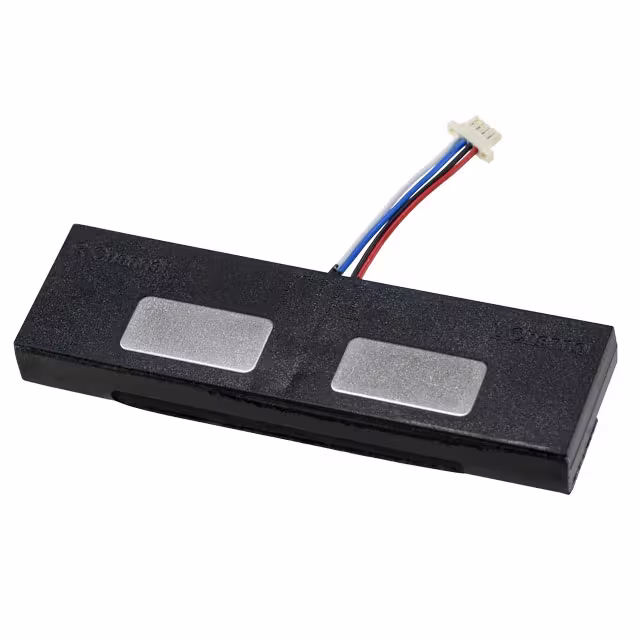

CES-57175-16L020SPEAKER 6OHM 1W TOP PORT 89DB |
4,913 |
|
Datasheet | CES | Tray | Obsolete | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 6 Ohms | 89.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 2.264" L x 0.669" W (57.50mm x 17.00mm) |
|
GA0666SPEAKER 8OHM 500MW TOP PORT 86DB |
2,418 |
|
Datasheet | GA | Bag | Active | Magnetic | General Purpose | 320 Hz ~ 7 kHz | 320Hz | 8 Ohms | 86.00 | 300mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|

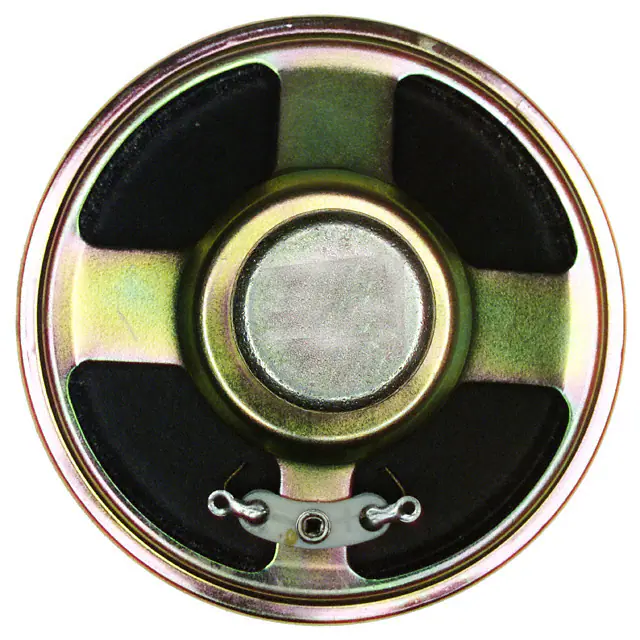

GA0701SPEAKER 8OHM 500MW TOP PORT 92DB |
4,638 |
|
Datasheet | GA | Bag | Active | Magnetic | General Purpose | 300 Hz ~ 3.2 kHz | 300Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) |
|
GA0666MSPEAKER 8OHM 500MW TOP PORT 87DB |
3,621 |
|
Datasheet | GA | Bag | Active | Magnetic | General Purpose | 400 Hz ~ 11 kHz | 400Hz | 8 Ohms | 87.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|
GF0771MSPEAKER 8OHM 1W TOP PORT 90DB |
3,192 |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 280 Hz ~ 11 kHz | 280Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 3.032" Dia (77.00mm) |
|
CDS-18138ASPEAKER 8OHM 700MW TOP PORT 89DB |
2,693 |
|
Datasheet | CDS | Box | Obsolete | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 375Hz | 8 Ohms | 89.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CLS0361SPEAKER 8OHM 2W TOP PORT 88DB |
4,915 |
|
Datasheet | CLS | Tray | Active | Magnetic | General Purpose | 288 Hz ~ 20 kHz | 450Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
|
GA0876SPEAKER 8OHM 1W TOP PORT 90DB |
4,828 |
|
Datasheet | GA | Box | Active | Magnetic | General Purpose | 200 Hz ~ 14 kHz | 200Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
|
|
GA0776MSPEAKER 8OHM 1W TOP PORT 90DB |
4,084 |
|
Datasheet | GA | Bag | Active | Magnetic | General Purpose | 320 Hz ~ 25 kHz | 320Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) |
