Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-181325-078SPSPEAKER 8OHM 700MW TOP PORT 93DB |
3,739 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CLS0281MPSPEAKER 8OHM 200MW TOP PORT 82DB |
2,945 |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 850 Hz ~ 6 kHz | 850Hz | 8 Ohms | 82.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.102" Dia (28.00mm) |
|

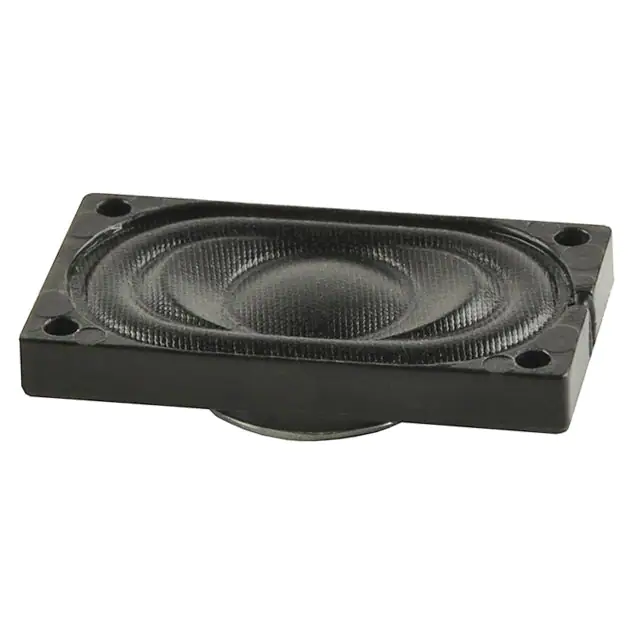

CMS-25148NSPEAKER 8OHM 1W TOP PORT 92DB |
2,836 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 840 Hz ~ 20 kHz | 1050Hz | 8 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CMS-16098A-SPSPEAKER 8OHM 800MW TOP PORT 88DB |
2,179 |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 467.5 Hz ~ 10 kHz | 550Hz | 8 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

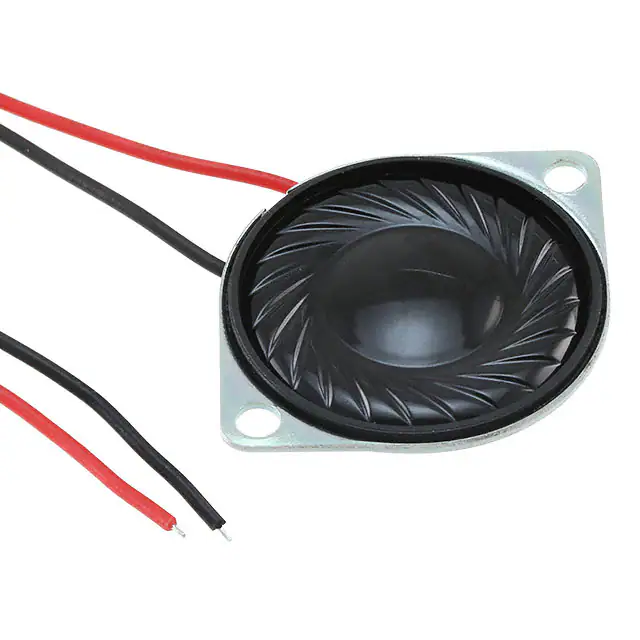

CMS-28528N-L152SPEAKER 8OHM 2W TOP PORT 99DB |
2,014 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CMS-23558N-L152SPEAKER 8OHM 1W TOP PORT 80DB |
1,668 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
CLS0201MA-L152SPEAKER 8OHM 500MW TOP PORT 86DB |
4,514 |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 86.00 | 1W/50mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" Dia (20.00mm) |
|

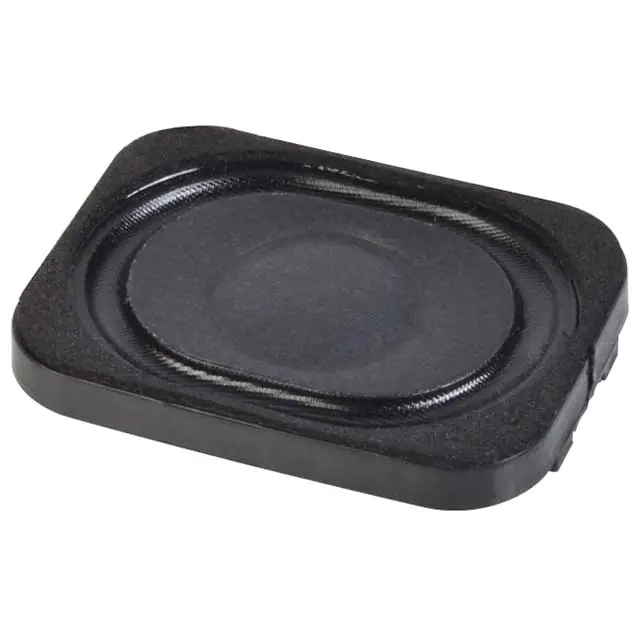

CDS-40304SPEAKER 4OHM 2W TOP PORT 79DB |
4,293 |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Solder Pads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-231210-18PMSPEAKER 8OHM 1W TOP PORT 88DB |
2,765 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.181" L x 0.512" W (30.00mm x 13.00mm) |
|
CMS-131304-SMT-TRSPEAKER, 13 MM SQUARE, 4 MM DEEP |
1,216 |
|
Datasheet | - | Tape & Reel (TR) | Active | Magnetic | General Purpose | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 87.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Square | Polyimide (PI) | SmCo | - | - | Solder Pads | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
