Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CI-28220-000SPEAKER 47OHM TOP PORT 131.5DB |
1,944 |
|
Datasheet | CI | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.5 kHz | - | 47 Ohms | 131.50 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.373" L x 0.283" W (9.47mm x 7.18mm) |
|
EF-23168-P109SPEAKER 160OHM 126DB |
2,852 |
|
- |
EF | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.3 kHz | - | 160 Ohms | 126.00 | - | Sensitivity | - | - | - | - | - | - | - | - | - | - |
|
|
EF-23168-P93SPEAKER 160OHM 126DB |
2,638 |
|
Datasheet | EF | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.3 kHz | - | 160 Ohms | 126.00 | - | Sensitivity | - | - | - | - | - | - | - | - | - | - |
|
|
EF-27428-116SPEAKER Z=92.5 OHMS PORT ON SIDE |
2,426 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EF-28395-055SPEAKER Z=74 OHMS PORT ON END |
3,331 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BK-21604-000SPEAKER 6 KOHM TOP PORT 126DB |
4,379 |
|
Datasheet | BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 3.8 kHz | - | 6 kOhms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|

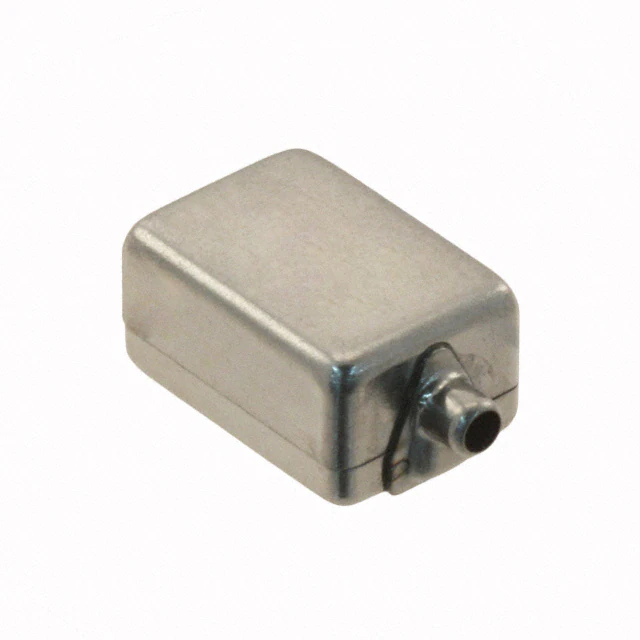

BK-28562-000SPEAKER 35OHM TOP PORT 123DB |
2,900 |
|
Datasheet | BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.5 kHz | - | 35 Ohms | 123.00 | - | - | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
BK-21600-000SPEAKER 730OHM TOP PORT 126DB |
4,365 |
|
Datasheet | BK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 3.8 kHz | - | 730 Ohms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|

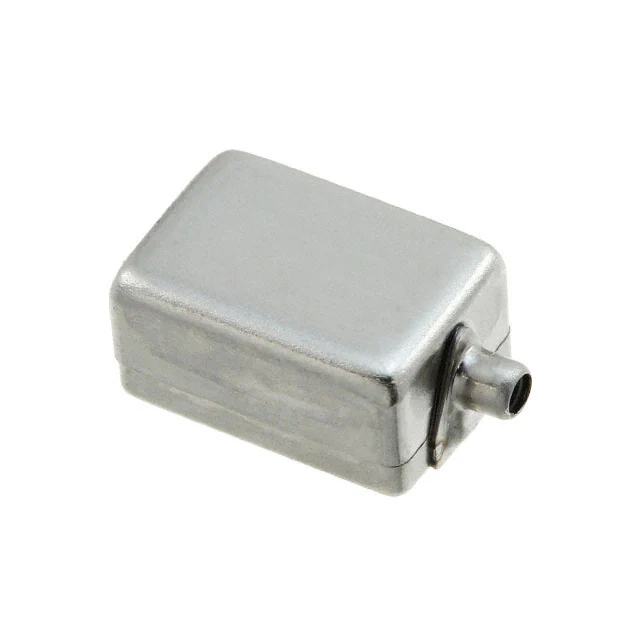

BK-21606-000SPEAKER 1.5 KOHM TOP PORT 126DB |
4,126 |
|
Datasheet | BK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 3.8 kHz | - | 1.5 kOhms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
|
BK-21613-000SPEAKER 1.2 KOHM TOP PORT 126DB |
2,537 |
|
Datasheet | BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 1.2 kOhms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
