Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D1D60SSR RELAY SPST-NO 60A 0-100V |
3,321 |
|
Datasheet | 1-DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 1 V ~ 100 V | 60 A | 10 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
MCPC2425CSSR RELAY SPST-NO 25A 180-280V |
3,850 |
|
Datasheet | MCPC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 0 ~ 10VDC | 180 V ~ 280 V | 25 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, UR | - | - |
|
10PCV2415SSR RELAY SPST-NO 15A 100-240V |
1,184 |
|
Datasheet | PCV | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 2 ~ 10VDC | 100 V ~ 240 V | 15 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, CSA, cURus | - | - |
|
|
D1D80SSR RELAY SPST-NO 80A 0-100V |
2,237 |
|
Datasheet | 1-DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 1 V ~ 100 V | 80 A | 8 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
|
MCPC4825CSSR RELAY SPST-NO 25A 300-530V |
1,300 |
|
Datasheet | MCPC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 0 ~ 10VDC | 300 V ~ 530 V | 25 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, UR | - | - |
|
CWD48125SSR RELAY SPST-NO 125A 48-660V |
3,391 |
|
Datasheet | CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 125 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
|
CWD48125-10SSR RELAY SPST-NO 125A 48-660V |
3,549 |
|
Datasheet | CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 660 V | 125 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
|
10PCV2425SSR RELAY SPST-NO 25A 100-240V |
1,680 |
|
Datasheet | PCV | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 2 ~ 10VDC | 100 V ~ 240 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, CSA, cURus | - | - |
|
|
D1D100SSR RELAY SPST-NO 100A 0-100V |
1,895 |
|
Datasheet | 1-DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 1 V ~ 100 V | 100 A | 5 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|

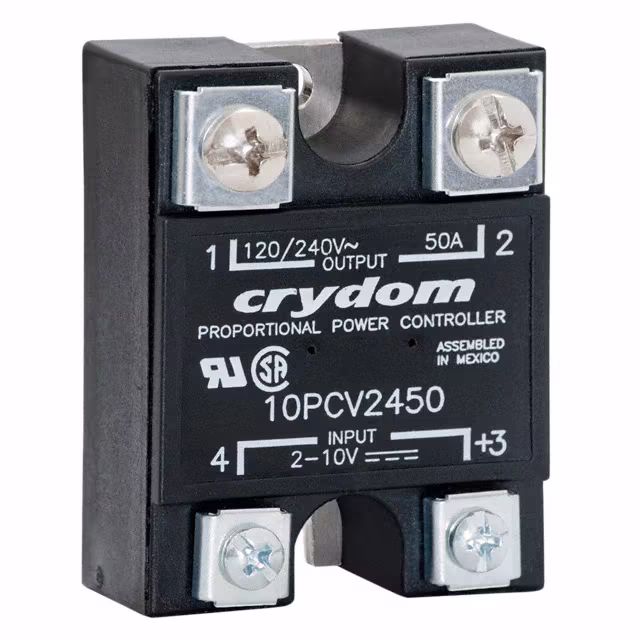

10PCV2450SSR RELAY SPST-NO 50A 100-240V |
1,393 |
|
Datasheet | PCV | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 2 ~ 10VDC | 100 V ~ 240 V | 50 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, CSA, cURus | - | - |
