Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

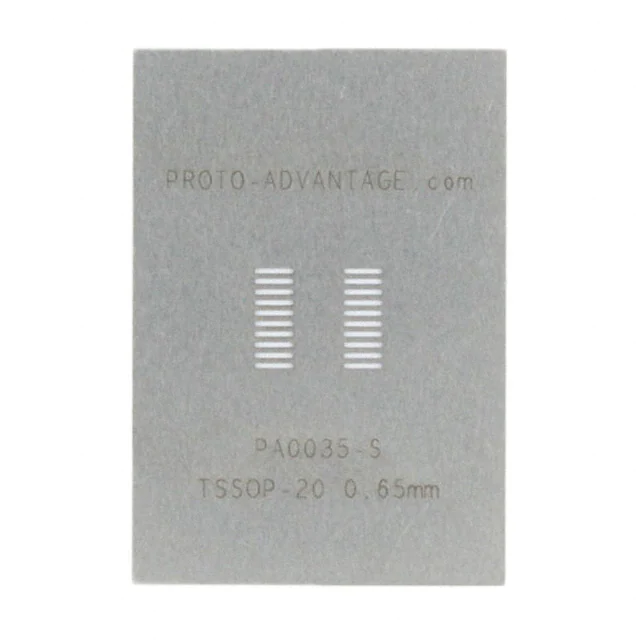

PA0035-STSSOP-20 STENCIL |
4,965 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | TSSOP | 20 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

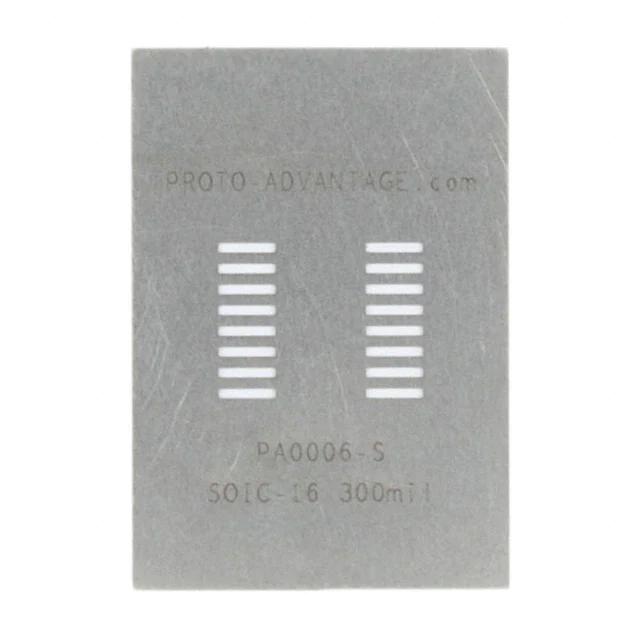

PA0006-SSOIC-16 STENCIL |
3,838 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | SOIC | 16 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

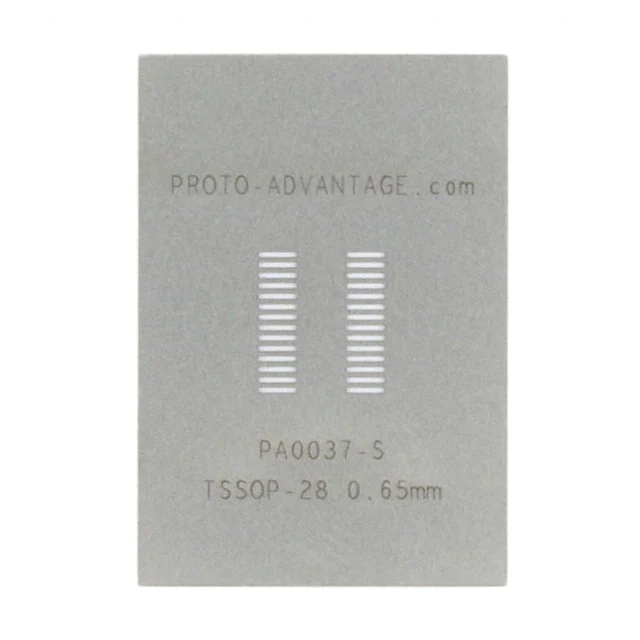

PA0037-STSSOP-28 STENCIL |
3,295 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | TSSOP | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0086-SSOT23-5/SC59-5/SC-74A STENCIL |
3,960 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | SOT/SC | 5 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

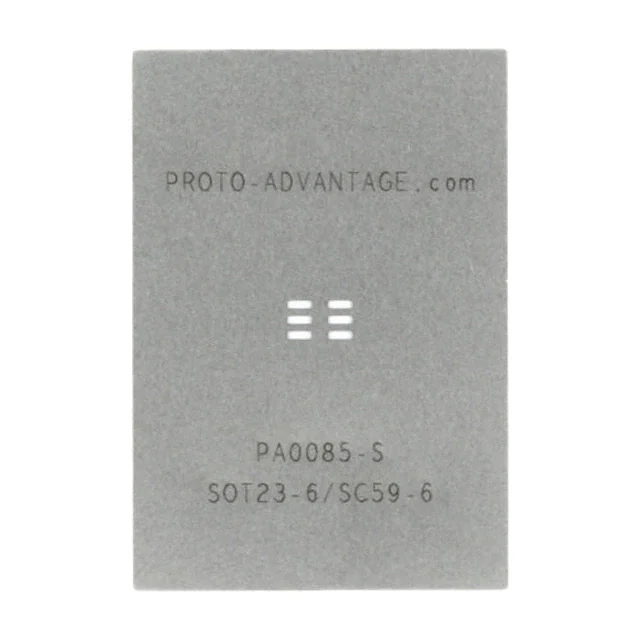

PA0085-SSOT23-6/SC59-6 STENCIL |
4,916 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | SOT/SC | 6 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0005-SSOIC-16 STENCIL |
3,699 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | SOIC | 16 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

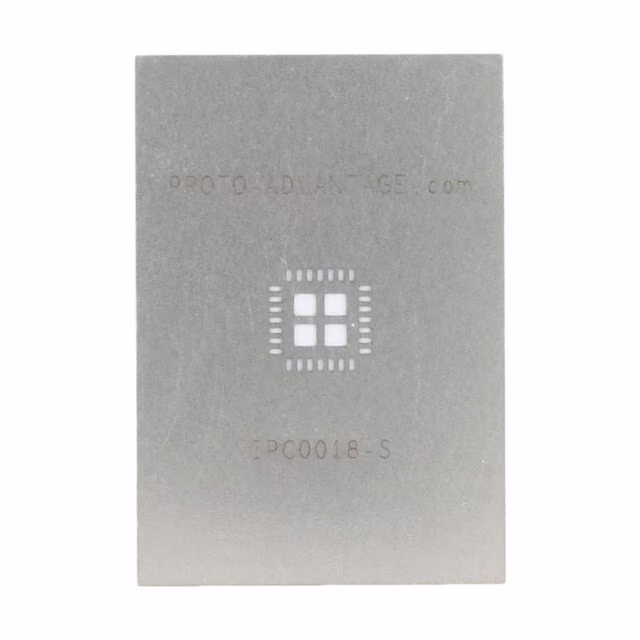

IPC0018-SQFN-28 STENCIL |
2,750 |
|
Datasheet | Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" L x 0.161" W (4.10mm x 4.10mm) | Stainless Steel |
|
PA0067-SQFN-32 STENCIL |
1,652 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|
PA0002-SSOIC-8 STENCIL |
3,010 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | SOIC | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0011-SSOIC-28 STENCIL |
1,093 |
|
Datasheet | Proto-Advantage PA | Bulk | Active | SOIC | 28 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
