Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

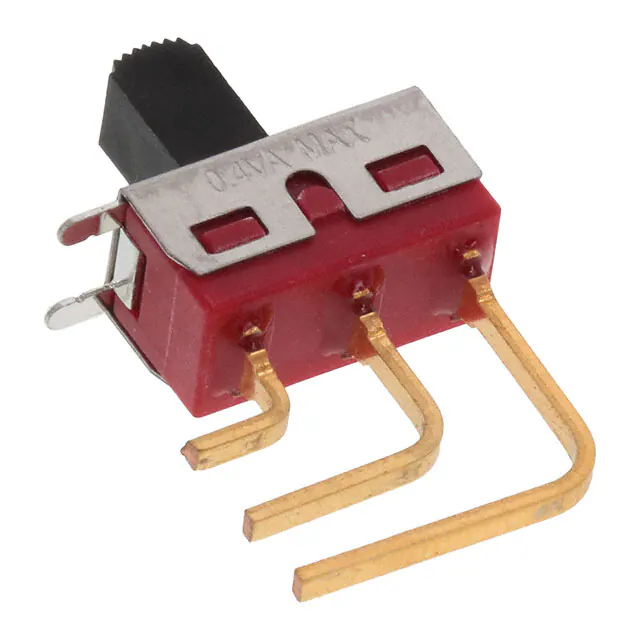

500SSP1S2M7REASWITCH SLIDE SPDT 0.4VA 20V |
2,408 |
|
Datasheet | 500 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 6.88mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

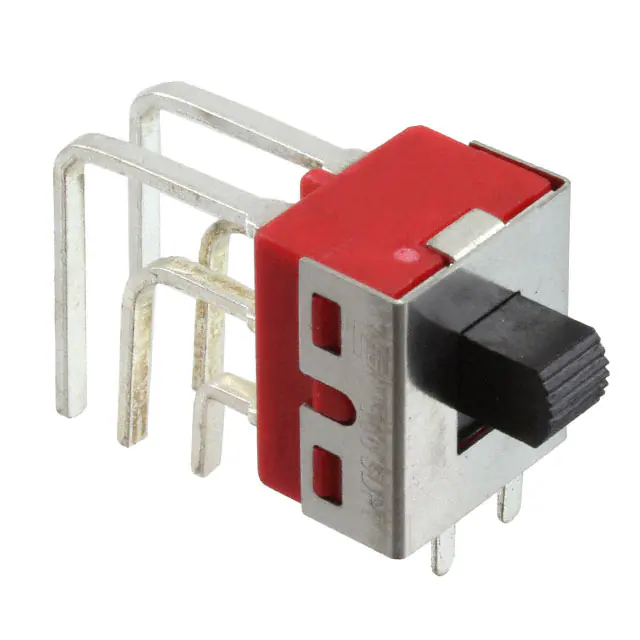

500SDP1S1M7QEASWITCH SLIDE DPDT 5A 120V |
1,239 |
|
Datasheet | 500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
500SDP1S4M1REBSWITCH SLIDE DPDT 0.4VA 20V |
2,479 |
|
Datasheet | 500 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.56mm | Copper Alloy | Gold | Panel Mount | Solder Lug | - |
|
500SSP3S1M2QEASWITCH SLIDE SPDT 5A 120V |
1,256 |
|
Datasheet | 500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
500SDP1S1M2QEASWITCH SLIDE DPDT 5A 120V |
2,002 |
|
Datasheet | 500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
500SSP1S1M1QEBSWITCH SLIDE SPDT 5A 120V |
4,905 |
|
Datasheet | 500 | Bulk | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
500SSP1S2M6QEASWITCH SLIDE SPDT 5A 120V |
4,297 |
|
Datasheet | 500 | Bulk | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 6.88mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
500SSP1S3M7REASWITCH SLIDE SPDT 0.4VA 20V |
2,079 |
|
Datasheet | 500 | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.04mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
500RSP1S1M6RESWITCH SLIDE SPDT 0.4VA 20V |
4,653 |
|
Datasheet | 500R | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | - | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
600DP1S1M4QSWITCH SLIDE DPDT 1A 30V |
1,265 |
|
Datasheet | 600 | Bulk | Active | DPDT | Not Specified | On-On | 1A (DC) | - | 30 V | Recessed | - | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals, IP67 |
