Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSN22BSW40SWITCH SLIDE |
2,408 |
|
Datasheet | M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
|
|
MSN23ASW30MINIATURE SLIDE |
2,693 |
|
Datasheet | M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
|
1825160-1SWITCH SLIDE SPDT 300MA 125V |
1,817 |
|
Datasheet | STS | Bulk | Obsolete | SPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825159-2SWITCH SLIDE SP3T 300MA 125V |
4,075 |
|
Datasheet | STS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825255-8SWITCH SLIDE SP3T 0.4VA 20V |
2,365 |
|
Datasheet | MHS | Bulk | Active | SP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825080-4SWITCH SLIDE DP5T 250MA 125V |
1,923 |
|
Datasheet | SLS | Bulk | Obsolete | DP5T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
25336NLDSWITCH SLIDE SPDT 100MA 30V |
4,393 |
|
Datasheet | 25000N | Bulk | Active | SPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 2.30mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
2-1825010-0SWITCH SLIDE 4PDT 300MA 115V |
3,194 |
|
Datasheet | ASE | Tube | Obsolete | 4PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Surface Mount | J Lead | - |
|
1101M2S3CQE1SWITCH SLIDE SPDT 6A 120V |
1,794 |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals, White Actuator |
|
|
48ASSP1S1M2QBTSWITCH SLIDE SPDT 5A 125V |
2,386 |
|
Datasheet | 48A | Bulk | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
SS22SDP4SWITCH SLIDE DPDT 0.4VA 28V |
1,551 |
|
Datasheet | SS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Through Hole | PC Pin | - |
|
|
SS22SBH4SWITCH SLIDE DPDT 0.4VA 28V |
3,596 |
|
Datasheet | SS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | - |
|
46203MRXSWITCH SLIDE SPDT 3A 125V |
4,731 |
|
Datasheet | 46200R | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Mom | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
|
ASE22RLSWITCH SLIDE DPDT 300MA 115V |
4,330 |
|
Datasheet | ASE | Bulk | Obsolete | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.67mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
|
SLS260PC04Slide Switches DP6T 0.25A 125VAC |
1,482 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AS11BVSWITCH SLIDE SPST 0.4VA 28V |
1,860 |
|
Datasheet | AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
1571985-1SWITCH SLIDE SPDT 0.4VA 20V |
3,313 |
|
Datasheet | TSS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

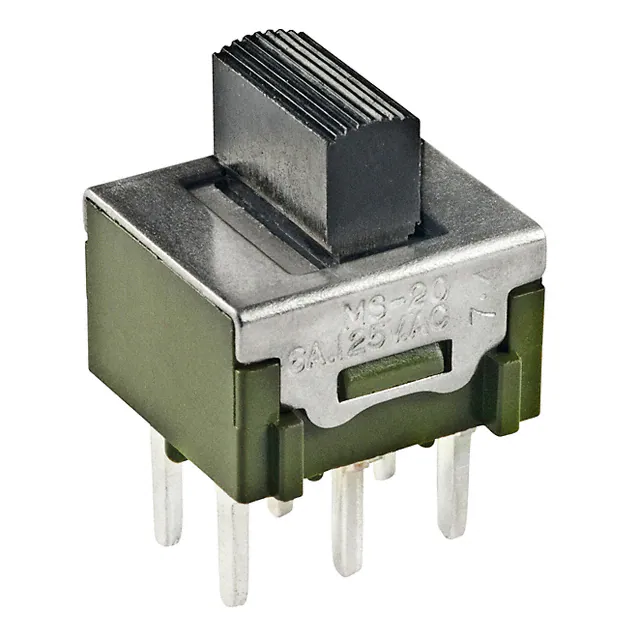

MS20BNW03SWITCH SLIDE SP3T 6A 125V |
1,985 |
|
Datasheet | MS | Tray | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|

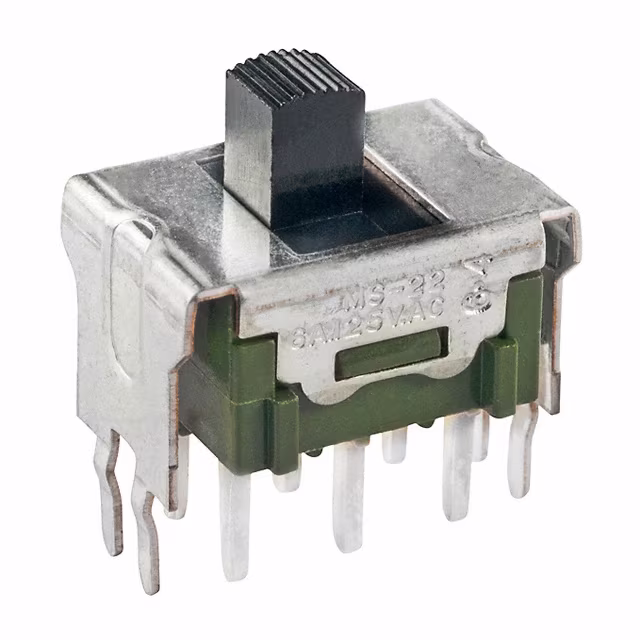

MS22ASW13SWITCH SLIDE DPDT 6A 125V |
1,969 |
|
Datasheet | MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
LP82C31T203DQSWITCH SLIDE DPDT 11A 125V |
1,596 |
|
Datasheet | LP | Bulk | Obsolete | DPDT | Not Specified | On-On | 11A (AC) | 125 V | - | Snap on Cap | 9.55mm | Copper | Silver | Panel Mount, Snap-In | Solder Lug | On-Off Marking on Housing |
