Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

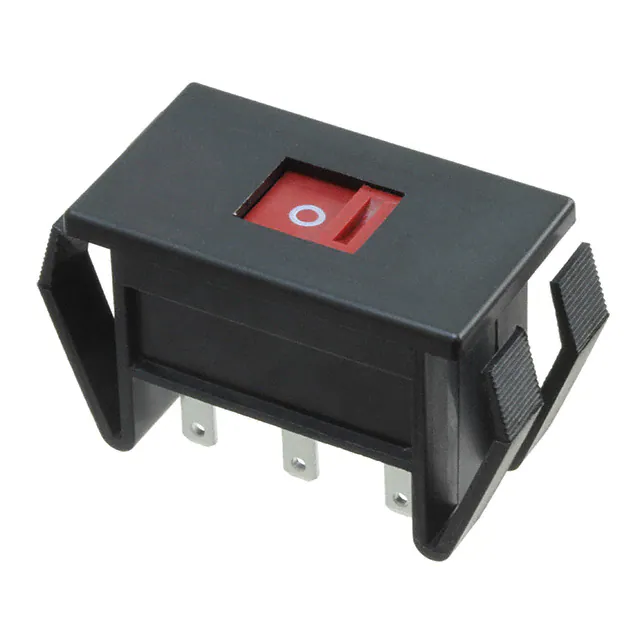

V70214S205QSWITCH SLIDE SPDT 10A 125V |
124 |
|
Datasheet | V | Tray | Active | SPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | O - Marking |
|
AS13AWSWITCH SLIDE SPDT 0.4VA 28V |
399 |
|
Datasheet | AS | Tube | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
AS12CVSWITCH SLIDE SPDT 0.4VA 28V |
566 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

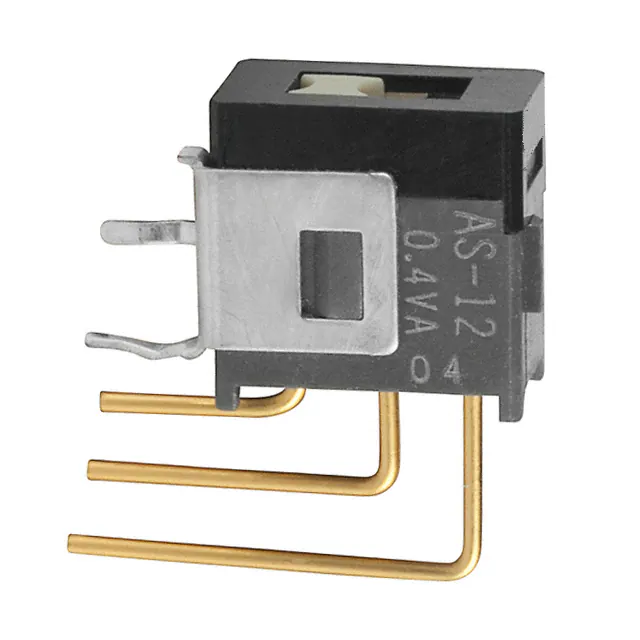

AS12BVSWITCH SLIDE SPDT 0.4VA 28V |
174 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

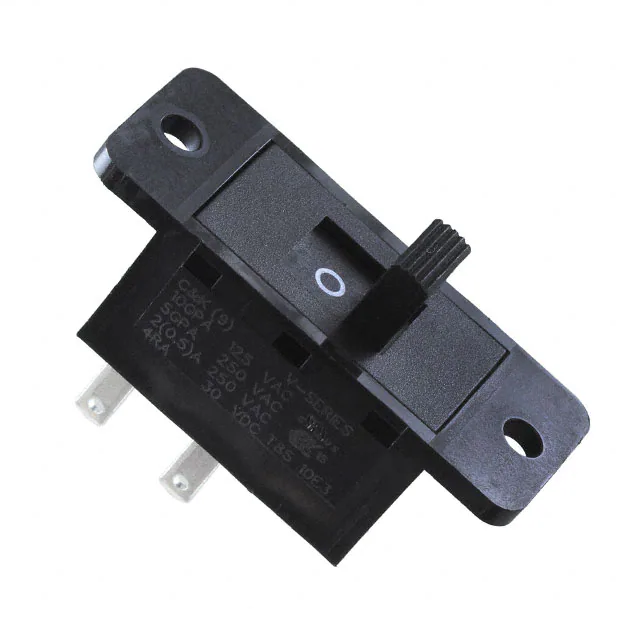

V80102SS05QSWITCH SLIDE DPST 10A 125V |
389 |
|
Datasheet | V | Bulk | Active | DPST | Not Specified | On-Off | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | O - Marking |
|
L103011TS03QSWITCH SLIDE SP3T 4A 125V |
101 |
|
Datasheet | L | Bulk | Active | SP3T | Not Specified | On-On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

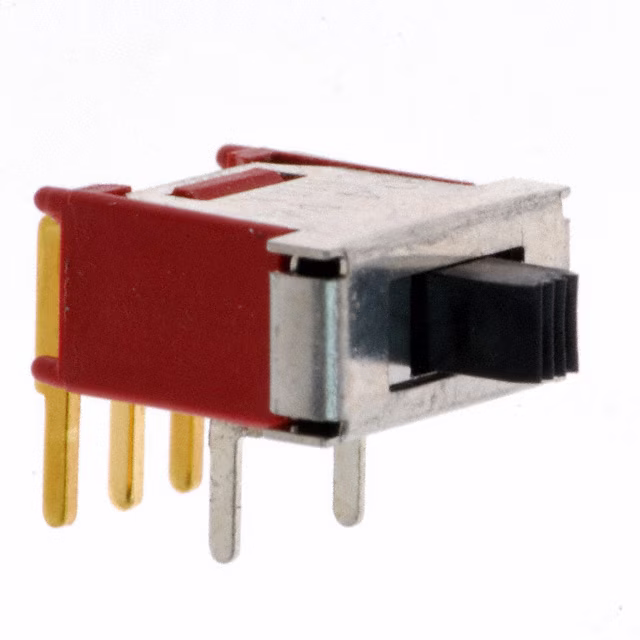

TS03ABESWITCH SLIDE SPDT 0.4VA 20V |
4,061 |
|
Datasheet | TS | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.10mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
46206MRXSWITCH SLIDE DPDT 3A 125V |
1,076 |
|
Datasheet | 46200R | Bulk | Active | DPDT | Non-Shorting (BBM) | On-Mom | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
AS13CVSWITCH SLIDE SPDT 0.4VA 28V |
154 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
AS13AVSWITCH SLIDE SPDT 0.4VA 28V |
1,048 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
1825265-1SWITCH SLIDE 4PDT 300MA 125V |
661 |
|
Datasheet | MSS | Bulk | Active | 4PDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 7.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
AS2N-5M-10-ZSWITCH SLIDE DPDT 50MA 48V |
118 |
|
Datasheet | AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
|
1103M1S3CQE2SWITCH SLIDE SPDT 6A 120V |
110 |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
GH36P000001SWITCH SLIDE SPDT 0.4VA 20V |
353 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1101M1S5ZQE2SWITCH SLIDE SPDT 6A 120V |
387 |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 9.40mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
V80213S205QSWITCH SLIDE DPDT 10A 125V |
259 |
|
Datasheet | V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | No Marking |
|
L203011MS02QESWITCH SLIDE DP3T 4A 125V |
130 |
|
Datasheet | L | Bulk | Active | DP3T | Not Specified | On-On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
L203011TS03QSWITCH SLIDE DP3T 4A 125V |
595 |
|
Datasheet | L | Bulk | Active | DP3T | Not Specified | On-On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
1825289-2SWITCH SLIDE DPDT 0.4VA 20V |
294 |
|
Datasheet | MHS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS23APSWITCH SLIDE DPDT 0.4VA 28V |
201 |
|
Datasheet | AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
