Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25136NABSWITCH SLIDE SPDT 4A 125V |
1,112 |
|
Datasheet | 25000N | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

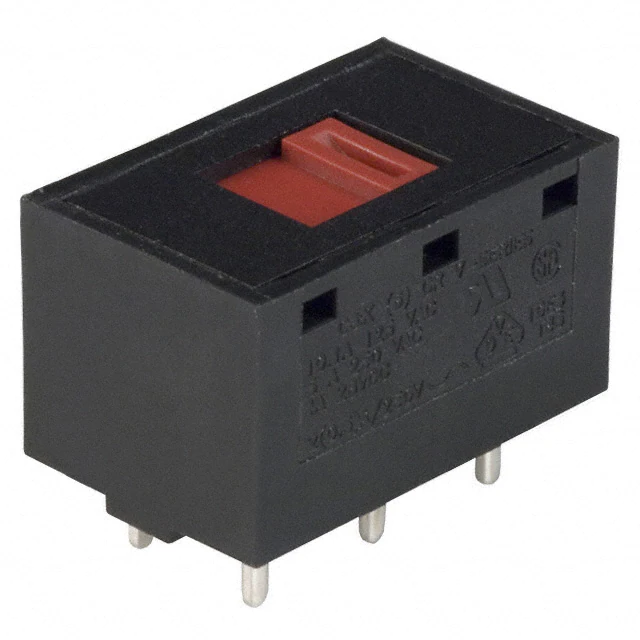

V80213MS02QSWITCH SLIDE DPDT 10A 125V |
4,325 |
|
Datasheet | V | Bulk | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Through Hole | PC Pin | No Marking |
|

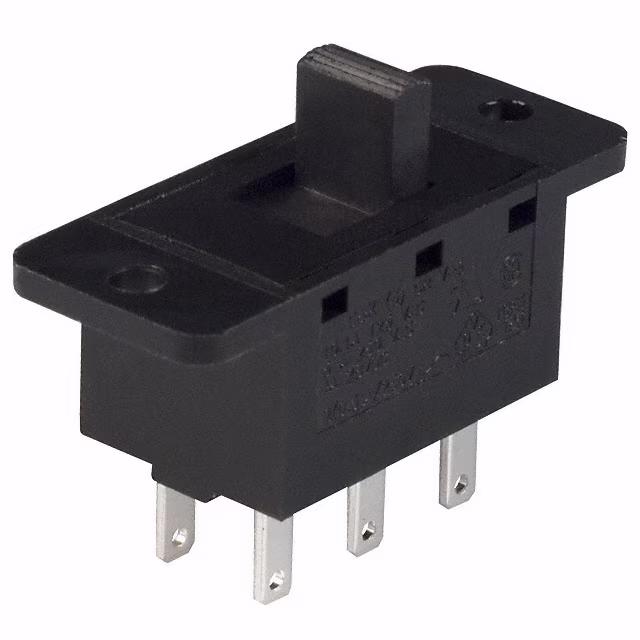

V80201SS05QSWITCH SLIDE DPDT 10A 125V |
1,576 |
|
Datasheet | V | Bulk | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | - |
|

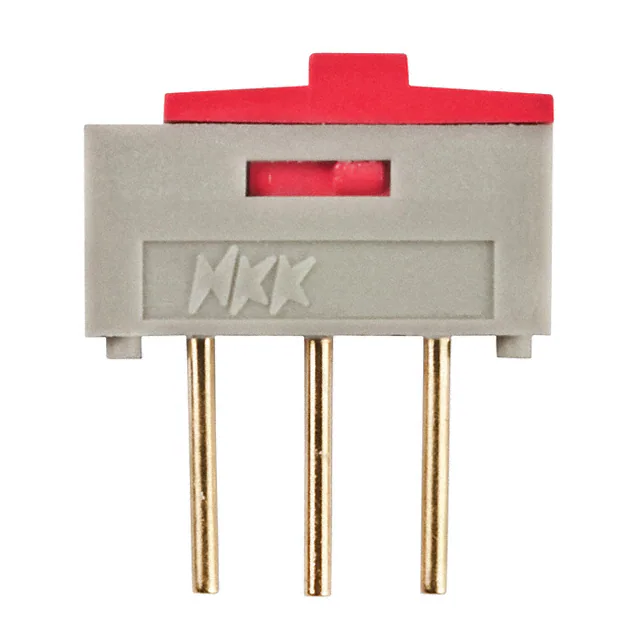

SM0320102SWITCH SLIDE SPDT 500MA 12V |
1,494 |
|
Datasheet | SM | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 500mA (DC) | - | 12 V | Standard | 1.40mm | Brass | Gold | Through Hole | PC Pin | - |
|
AS12CPSWITCH SLIDE SPDT 0.4VA 28V |
327 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

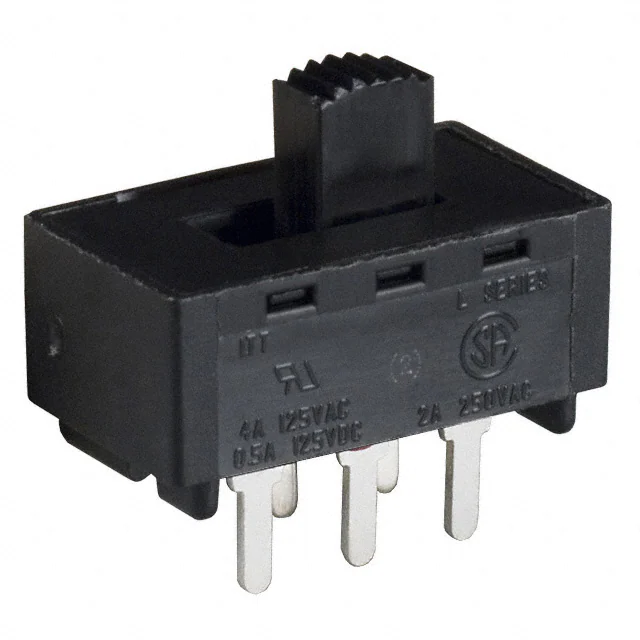

L202031MS02QSWITCH SLIDE DPDT 4A 125V |
1,097 |
|
Datasheet | L | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 9.53mm | Copper | Silver | Through Hole | PC Pin | - |
|
L204011MS02QSWITCH SLIDE DP4T 4A 125V |
1,722 |
|
Datasheet | L | Bulk | Active | DP4T | Not Specified | On-On-On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

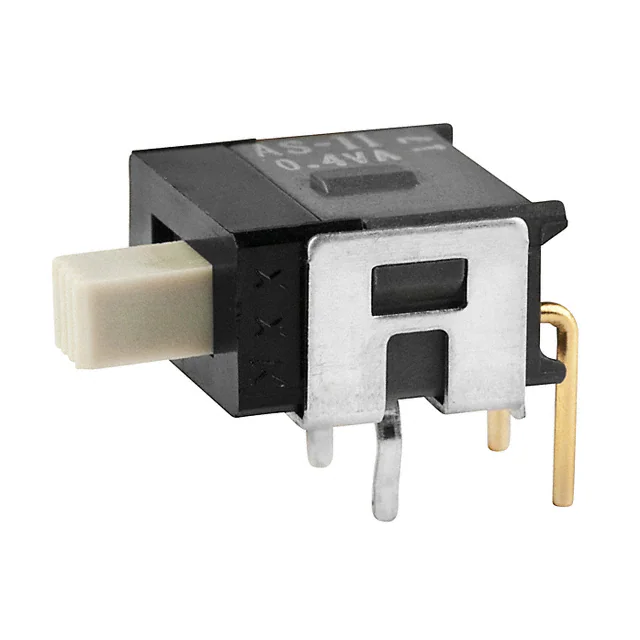

AS11CHSWITCH SLIDE SPST 0.4VA 28V |
394 |
|
Datasheet | AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

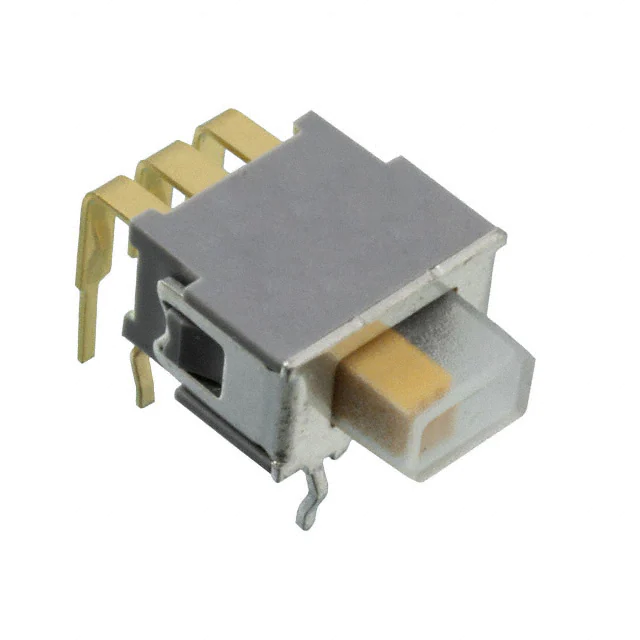

ASE2D-6M-10-ZSWITCH SLIDE DPDT 50MA 60V |
385 |
|
Datasheet | ASE | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 60 V | 60 V | Standard | 2.80mm | - | Gold | Through Hole, Right Angle | PC Pin | Washable |
|
8SS2012-ZSWITCH SLIDE DPDT 6A 125V |
777 |
|
Datasheet | 8SS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard | 5.00mm | - | Silver | Through Hole | PC Pin | - |
|

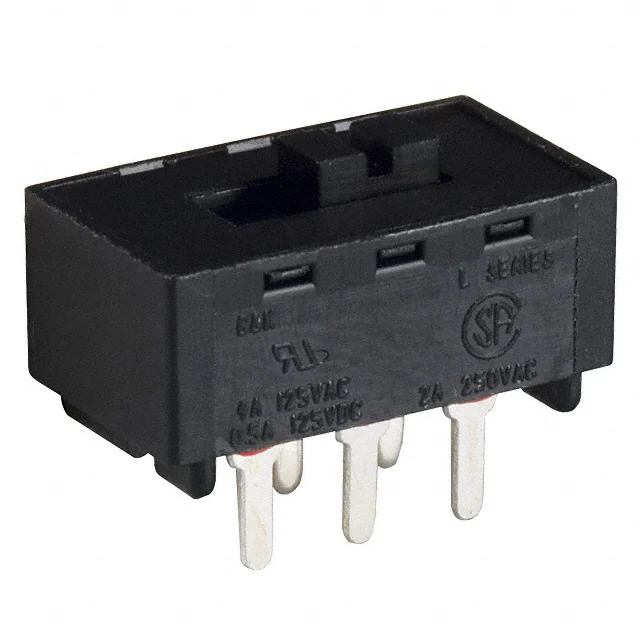

L202121MS02QESWITCH SLIDE DPDT 4A 125V |
1,110 |
|
Datasheet | L | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC/DC) | 125 V | 28 V | Screwdriver Slot | 1.65mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

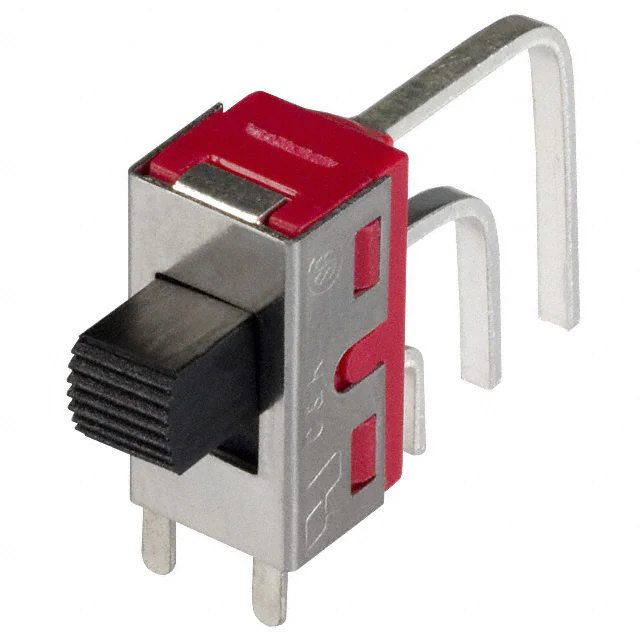

1101M2S3AV2QE2SWITCH SLIDE SPDT 6A 120V |
555 |
|
Datasheet | 1000 | Tray | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Silver | Through Hole, Right Angle, Vertical | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
GH36P010001SWITCH SLIDE SPDT 3A 30V |
712 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS13APSWITCH SLIDE SPDT 0.4VA 28V |
608 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

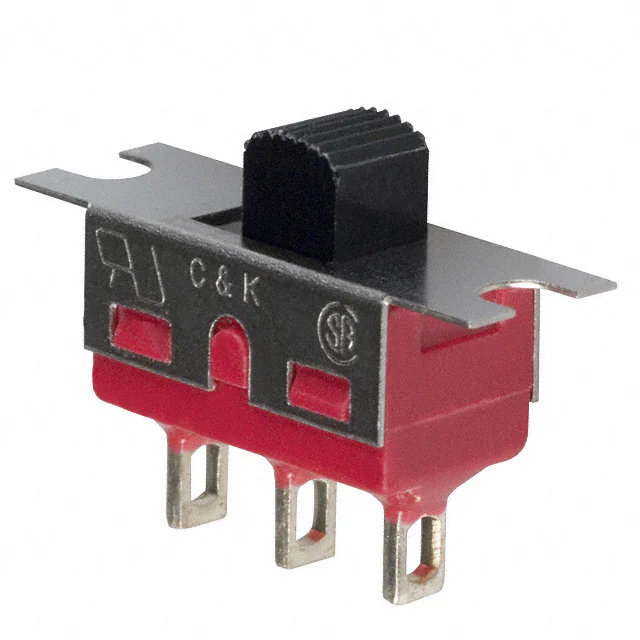

1101M1S2ZQE2SWITCH SLIDE SPDT 6A 120V |
1,006 |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 3.56mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|

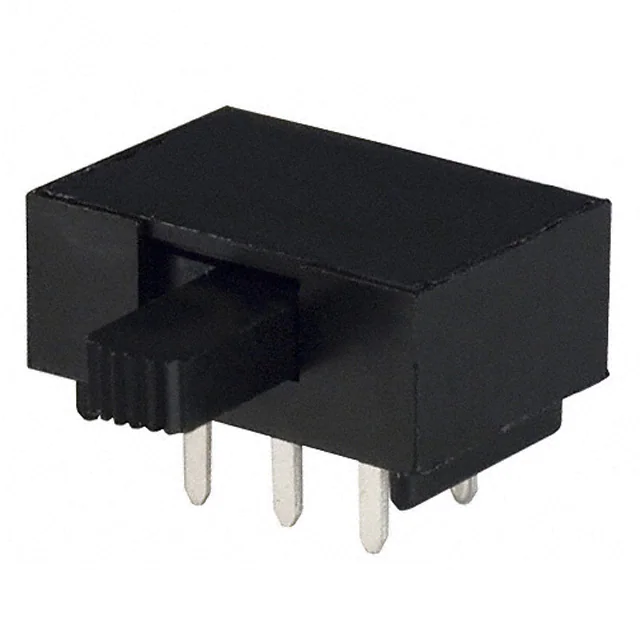

L202021MA04QSWITCH SLIDE DPDT 4A 125V |
178 |
|
Datasheet | L | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 8.51mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
S602031SS03QSWITCH SLIDE DPDT 12A 125V |
121 |
|
Datasheet | S | Bulk | Active | DPDT | Not Specified | On-On | 12A (AC), 1A (DC) | 125 V | 125 V | Standard | 8.51mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
1101M1S3ZQE2SWITCH SLIDE SPDT 6A 120V |
1,437 |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
X2320AASWITCH SLIDE DP3T 16A 250V |
1,679 |
|
Datasheet | 2000 | Bulk | Active | DP3T | Not Specified | On-On-On | 16A (AC) | 250 V | - | Standard | 9.50mm | - | - | Through Hole | PC Pin | - |
|
AS12AVSWITCH SLIDE SPDT 0.4VA 28V |
516 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
