Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1E-2M-10-ZSWITCH SLIDE SPDT 50MA 48V |
1,771 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole | PC Pin | - |
|
8SS1022-ZSWITCH SLIDE SPDT 6A 125V |
3,417 |
|
Datasheet | 8SS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard | 5.00mm | - | Silver | Through Hole | PC Pin | - |
|
CL-SB-13C-01SWITCH SLIDE SP3T 200MA 12V |
2,065 |
|
Datasheet | CL-SB | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Through Hole | PC Pin | - |
|
AS1E-5M-10-ZSWITCH SLIDE SPDT 50MA 48V |
2,812 |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
|

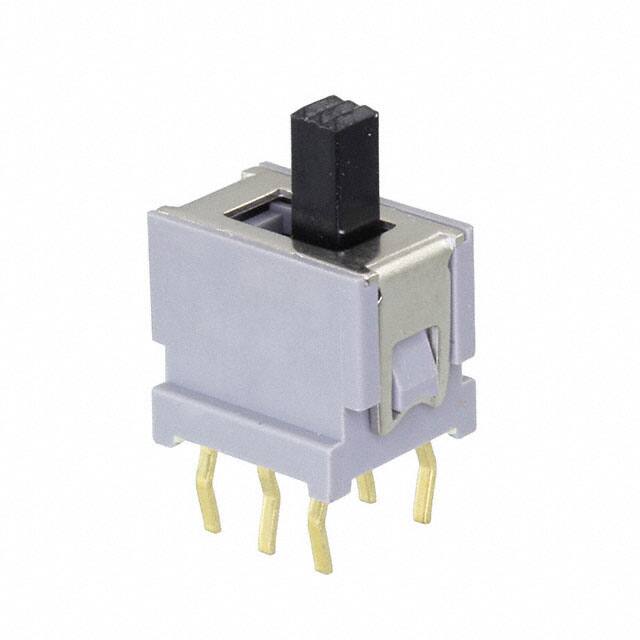

AS2N-2M-10-ZSWITCH SLIDE DPDT 50MA 48V |
3,207 |
|
Datasheet | AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole | PC Pin | - |
|
8SS2021-ZSWITCH SLIDE DPDT 6A 125V |
3,027 |
|
Datasheet | 8SS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard | 5.00mm | - | Silver | Panel Mount | Solder Lug | - |
|
8SS2022-ZSWITCH SLIDE DPDT 6A 125V |
1,058 |
|
Datasheet | 8SS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard | 5.00mm | - | Silver | Through Hole | PC Pin | - |
|

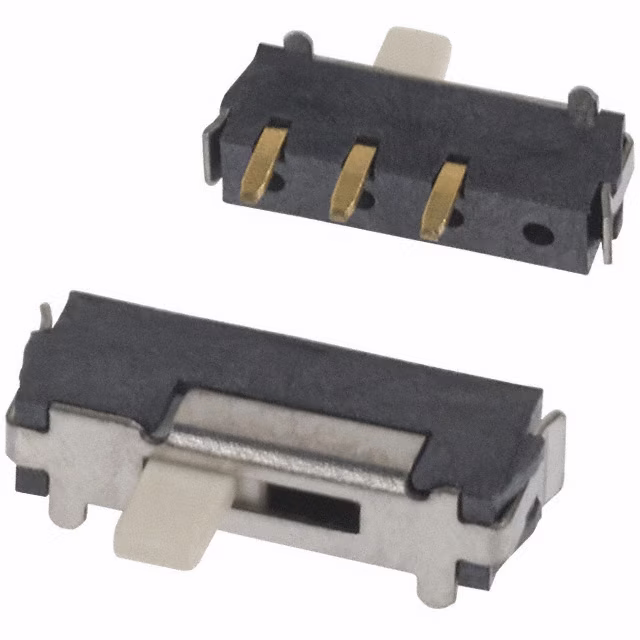

CSS-1211TBSWITCH SLIDE SPDT 100MA 12V |
1,070 |
|
Datasheet | CSS | Tape & Reel (TR) | Active | SPDT | Non-Shorting (BBM) | On-Mom | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|

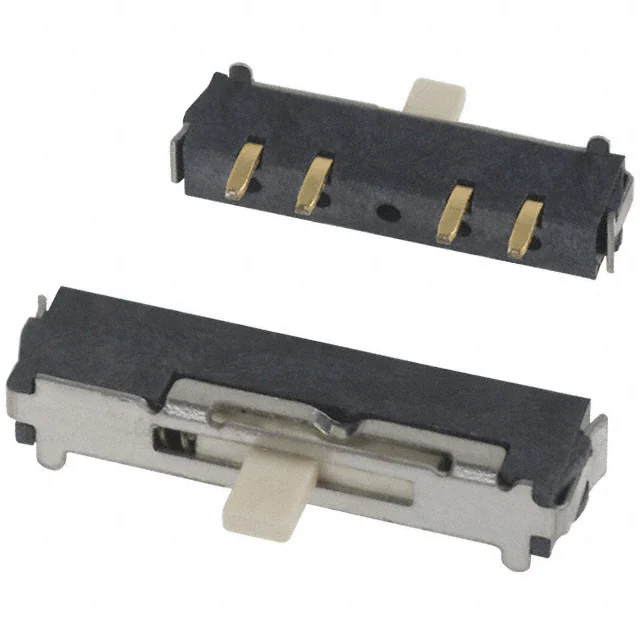

CSS-1311TBSWITCH SLIDE SP3T 100MA 12V |
4,731 |
|
Datasheet | CSS | Tape & Reel (TR) | Active | SP3T | Non-Shorting (BBM) | On-On-Mom | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|

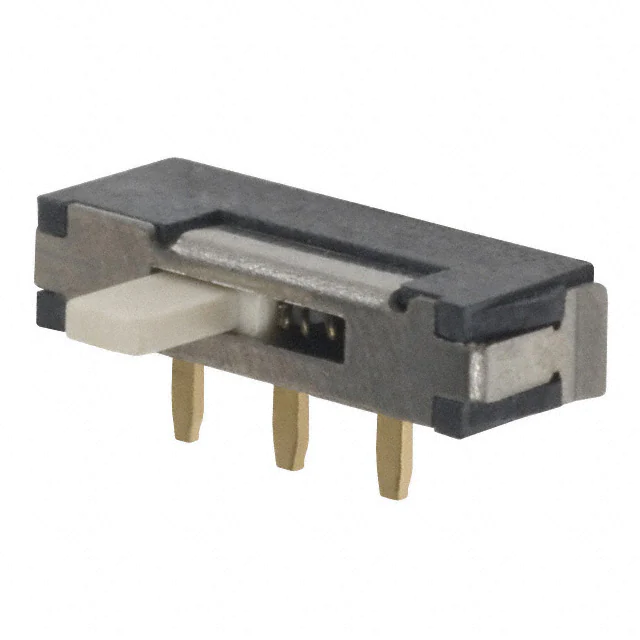

CSS-1211MCSWITCH SLIDE SPDT 100MA 12V |
2,690 |
|
Datasheet | CSS | Tube | Active | SPDT | Non-Shorting (BBM) | On-Mom | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
