Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V80202MS02QESWITCH SLIDE DPDT 10A 125V |
3,249 |
|
Datasheet | V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Through Hole | PC Pin | O - Marking, Epoxy Sealed Terminals |
|
1103M2S4V3QE2SWITCH SLIDE SPDT 6A 120V |
4,569 |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 6.88mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
TS03CRESWITCH SLIDE SPDT 0.4VA 20V |
4,098 |
|
Datasheet | TS | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.10mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
1103M2S5AV2BE2SLIDE SWITCHES .4A 20VAC/DC R.A. |
1,783 |
|
Datasheet | 1000 | Tray | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.04mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | - |
|
|
TG36P010050SWITCH SLIDE SPDT 500MA 48V |
3,624 |
|
Datasheet | TG | Tray | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 48 V | 48 V | Standard | 3.00mm | Brass | Silver | Through Hole | PC Pin | Washable |
|
|
TG39W010000SWITCH SLIDE SPDT 500MA 48V |
3,770 |
|
Datasheet | TG | Tray | Active | SPDT | Not Specified | On-Off-On | 500mA (AC/DC) | 48 V | 48 V | Standard | 3.00mm | Brass | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1108M2S3AV2BE2SWITCH SLIDE SPDT 0.4VA 20V |
2,979 |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
TG39W000050SWITCH SLIDE SPDT 0.4VA 20V |
2,583 |
|
Datasheet | TG | Tray | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Washable |
|
TS01ASESWITCH SLIDE SPDT 3A 120V |
2,982 |
|
Datasheet | TS | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC/DC) | 120 V | 28 V | Standard | 3.10mm | Silver (Ag) | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1201M2S5V4BE2SWITCH SLIDE DPDT 0.4VA 20V |
2,158 |
|
Datasheet | 1000 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.04mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
L102011ML04GESWITCH SLIDE SPDT 0.4VA 20V |
4,847 |
|
Datasheet | L | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|

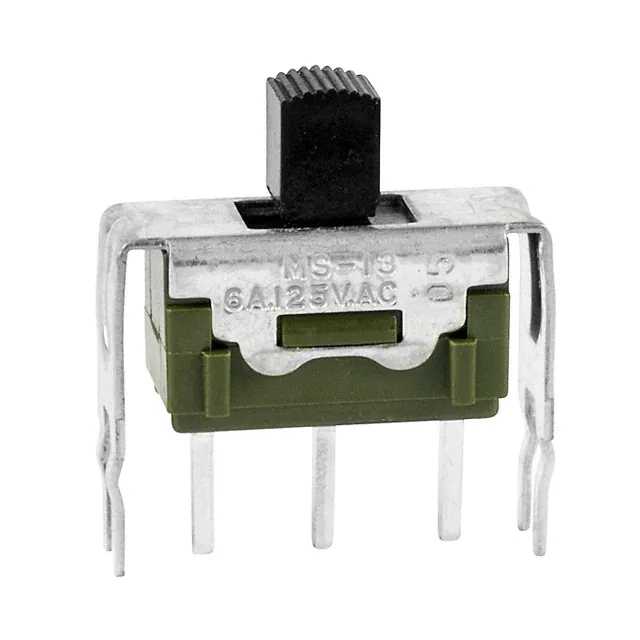

MS13ASW13SWITCH SLIDE SPDT 6A 125V |
4,760 |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1103M2S3AV2GE2SWITCH SLIDE SPDT 6A 120V |
4,262 |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Silver | Through Hole, Right Angle, Vertical | PC Pin | - |
|

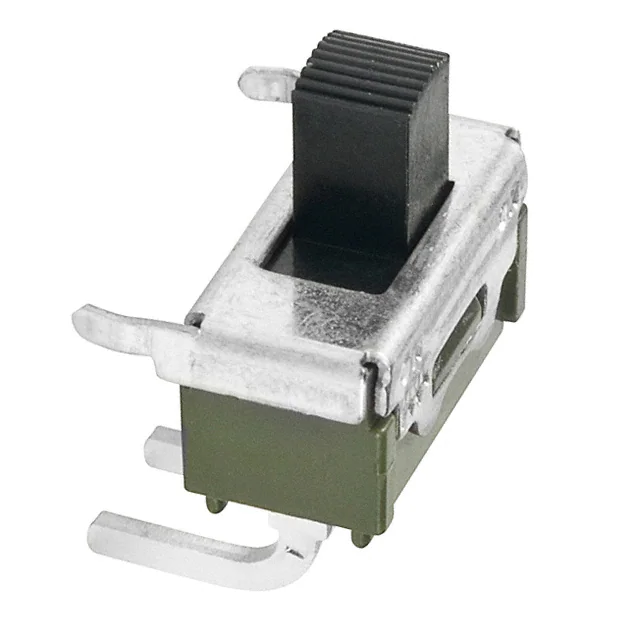

MS12ASW30SWITCH SLIDE SPDT 6A 125V |
2,028 |
|
Datasheet | MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
TG39P010050SWITCH SLIDE SPDT 500MA 48V |
4,354 |
|
Datasheet | TG | Tray | Active | SPDT | Not Specified | On-Off-On | 500mA (AC/DC) | 48 V | 48 V | Standard | 3.00mm | Brass | Silver | Through Hole | PC Pin | Washable |
|
|
1825011-6SWITCH SLIDE DPDT 0.4VA 20V |
2,689 |
|
Datasheet | ASF | Tape & Reel (TR) | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Surface Mount | Gull Wing | Tape Seal |
|
|
1201M2T3CQE2SWITCH SLIDE DPDT 6A 120V |
3,384 |
|
Datasheet | 1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
V80212S205QESWITCH SLIDE DPDT 10A 125V |
3,851 |
|
Datasheet | V | Tray | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | 115V-230V Marking, Epoxy Sealed Terminals |
|
|
V80214S205QESWITCH SLIDE DPDT 10A 125V |
4,103 |
|
Datasheet | V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | O - Marking, Epoxy Sealed Terminals |
|
|
1201M1S3ZBE2SWITCH SLIDE DPDT 0.4VA 20V |
3,965 |
|
Datasheet | 1000 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper | Gold | Panel Mount | Solder Lug | - |
