Single Conductor Cables (Hook-Up Wire)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Jacket (Insulation) Thickness | Length | Voltage | Operating Temperature | Jacket Color | Ratings | Features | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1653 RD001HOOK-UP STRND 10AWG RED 1000' |
1,974 |
|
Datasheet | - | Spool | Active | Hook-Up | 10 AWG | 105/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.210" (5.33mm) | 0.045" (1.14mm) | 1000.0' (304.8m) | 600V | -20°C ~ 80°C | Red | - | - | - | MIL-W-76B Type MW |
|
1653 WH001HOOK-UP STRND 10AWG WHITE 1000' |
4,086 |
|
Datasheet | - | Spool | Active | Hook-Up | 10 AWG | 105/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.210" (5.33mm) | 0.045" (1.14mm) | 1000.0' (304.8m) | 600V | -20°C ~ 80°C | White | - | - | - | MIL-W-76B Type MW |
|
|
391675 RD001HOOK-UP STRND 16AWG RED 1000' |
1,508 |
|
Datasheet | - | Spool | Active | Hook-Up | 16 AWG | 26/30 | Copper, Tinned | Silicone Rubber | 0.210" (5.33mm) | 0.075" (1.90mm) | 1000.0' (304.8m) | 30kV | -40°C ~ 150°C | Red | ISO 10993, UL Style 3239 | Biological Compatibility | - | - |
|
PBM0001 BK002HOOK-UP STRND 1/0AWG BLACK 500' |
3,922 |
|
Datasheet | - | Spool | Obsolete | Hook-Up | 1/0 AWG | 1045/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.592" (15.04mm) | 0.082" (2.08mm) | 500.0' (152.4m) | 600V | -40°C ~ 105°C | Black | UL Style 1283 | - | - | - |
|
|
758133 BK001HOOK-UP STRND 8AWG BLACK 1000' |
4,755 |
|
Datasheet | - | Spool | Obsolete | Hook-Up | 8 AWG | 133/29 | Copper, Tinned | Polyethylene (XLPE), Irradiated | 0.263" (6.68mm) | 0.047" (1.19mm) | 1000.0' (304.8m) | 600V | -40°C ~ 125°C | Black | UL Style 3195 | - | - | - |
|
|
392240 BK013HOOK-UP STRND 22AWG BLACK 5000' |
1,426 |
|
Datasheet | - | Spool | Obsolete | Hook-Up | 22 AWG | 7/30 | Copper, Tinned | Silicone Rubber | 0.110" (2.79mm) | 0.040" (1.02mm) | 5000' (1524.0m) | 10kV | -40°C ~ 150°C | Black | ISO 10993, UL Style 3239 | Biological Compatibility | - | - |
|

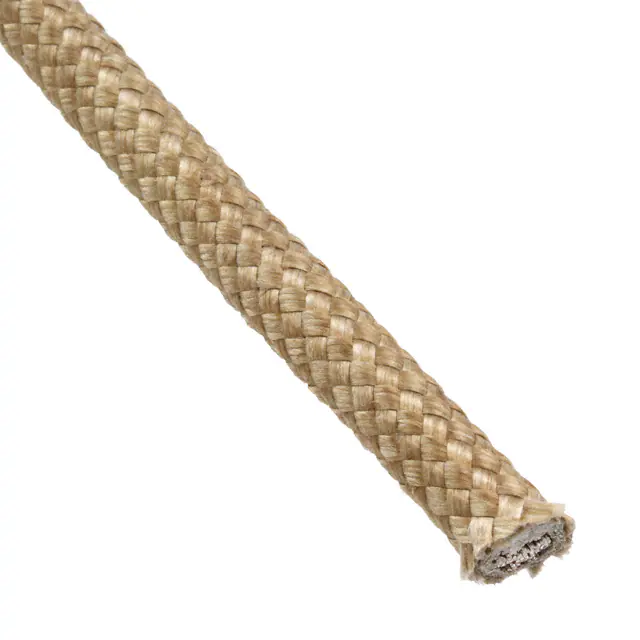

3116133 TN005HOOK-UP STRND 6AWG 600V TAN 100' |
2,285 |
|
Datasheet | - | Spool | Active | Hook-Up | 6 AWG | 133/27 | Copper, Nickel Coated | Polytetrafluoroethylene (PTFE) | 0.304" (7.72mm) | 0.015" (0.38mm) | 100.0' (30.5m) | 600V | -55°C ~ 538°C | Tan | UL Style 5107 | - | - | - |
|
AT121925 YL001HOOK-UP STRND 12AWG YELLOW 1000' |
2,515 |
|
Datasheet | - | Spool | Active | Hook-Up | 12 AWG | 19/25 | Copper, Silver Coated | Polytetrafluoroethylene (PTFE) | 0.111" (2.82mm) | 0.013" (0.33mm) | 1000.0' (304.8m) | 600V | -55°C ~ 200°C | Yellow | - | - | - | - |
|
|
PBM0230 YL001HOOK-UP STRND 2AWG YELLOW 1000' |
3,300 |
|
Datasheet | - | Spool | Obsolete | Hook-Up | 2 AWG | 665/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.459" (11.66mm) | 0.062" (1.57mm) | 1000.0' (304.8m) | 600V | -40°C ~ 105°C | Yellow | UL Style 1283 | Oil Resistant | - | - |
|
|
392097 RD001HOOK-UP STRND 20AWG RED 1000' |
3,954 |
|
Datasheet | - | Spool | Active | Hook-Up | 20 AWG | 10/30 | Copper, Tinned | Silicone Rubber | 0.231" (5.87mm) | 0.097" (2.46mm) | 1000.0' (304.8m) | 40kV | -40°C ~ 150°C | Red | ISO 10993, UL Style 3239 | Biological Compatibility | - | - |
