Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMB06IGRRELAY TELECOM SPST 2A 12V |
1,411 |
|
Datasheet | IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 400VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
V23101D1106B201RELAY GEN PURPOSE SPDT 1.25A 12V |
4,467 |
|
Datasheet | V23101, AXICOM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 17.2 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
R10-E1Z6-V430RELAY GEN PURPOSE 6PDT 2A 24V |
4,083 |
|
Datasheet | R10 | Bulk | Active | Socketable | 24VDC | 6PDT (6 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 55.8 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
6-1462037-4RELAY TELECOM DPDT 2A 9V |
2,005 |
|
Datasheet | IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Hermetically | - | 6.75 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
IM02TSRELAY TELECOM DPDT 2A 4.5V |
3,347 |
|
Datasheet | IM, AXICOM | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.38 VDC | 0.45 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|

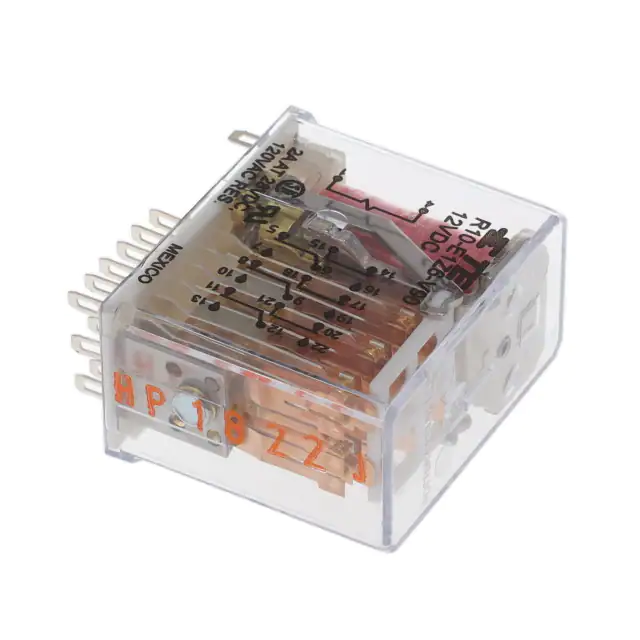

R10-E1Z6-V90RELAY GEN PURPOSE 6PDT 2A 12V |
3,396 |
|
Datasheet | R10 | Bulk | Active | Socketable | 12VDC | 6PDT (6 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | - | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
IMB06ITSRELAY TELECOM SPST 2A 12V |
1,668 |
|
Datasheet | IM, AXICOM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 400VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
V23111A1024B301RELAY GEN PURPOSE SPDT 1A 24V |
2,499 |
|
- |
V23111 | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 24VDC - Nom | - | 6.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | - | - | - | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
OUAZ-SH-109L,900RELAY TELECOM SPDT 1A 9V |
1,177 |
|
Datasheet | OUAZ, OEG | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
TSC-112L3,000RELAY TELECOM SPDT 1A 12V |
1,419 |
|
Datasheet | TSC, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 30VDC - Max | 120VA, 30W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 5 ms | 5 ms | -30°C ~ 80°C | Silver Nickel (AgNi) | Telecom | - | - |
