Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1617076-6RELAY GEN PURPOSE 4PDT 2A 12V |
4,410 |
|
Datasheet | 3SBH, CII | Box | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | - | 104 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1617076-9RELAY GENERAL PURPOSE 4PDT 2A 6V |
4,308 |
|
Datasheet | 3SBH | Bulk | Active | Through Hole | 6VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | - | 214.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
1617086-4RELAY GENERAL PURPOSE 4PDT 2A 6V |
1,517 |
|
Datasheet | 3SBM | Bulk | Active | Through Hole | 6VDC | 4PDT (4 Form C) | 2 A | 115VAC, 28VDC - Max | - | 162.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
HFW1201K45RELAY GEN PURPOSE DPDT 2A 26.5V |
2,111 |
|
Datasheet | HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
HFW1201G01MRELAY GEN PURPOSE DPDT 2A 12V |
1,319 |
|
Datasheet | HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
HFW1201K45MRELAY GEN PURPOSE DPDT 2A 26.5V |
3,265 |
|
Datasheet | HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
JMSWD-5XMRELAY GENERAL PURPOSE DPDT 1A 5V |
3,368 |
|
Datasheet | MSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
HFW1131K04RELAY GEN PURPOSE DPDT 2A 26.5V |
4,491 |
|
Datasheet | HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|

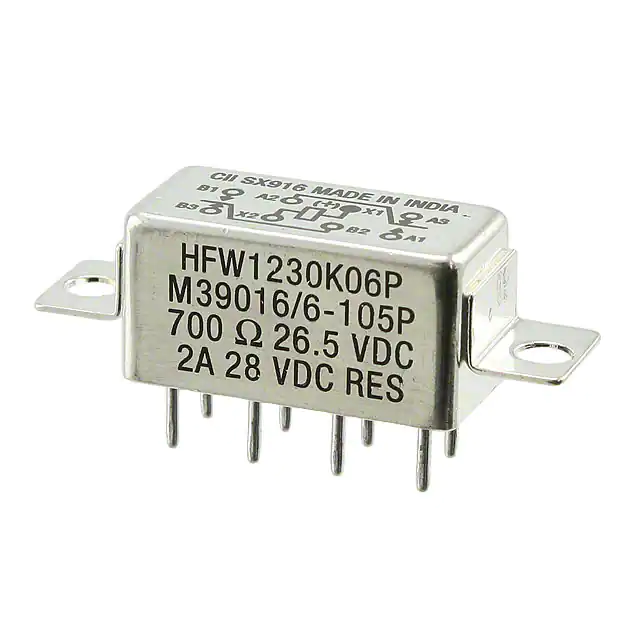

HFW1230K06PRELAY GEN PURPOSE DPDT 2A 26.5V |
2,911 |
|
Datasheet | HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
3SBC1518A2RELAY GEN PURPOSE DPDT 2A 26.5V |
2,681 |
|
Datasheet | 3SBC, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 8.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
