Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMS1201S111MRELAY GEN PURPOSE DPDT 2A 26.5V |
3,990 |
|
Datasheet | HMS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 25.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | Military | MIL-R-39016/44 |
|

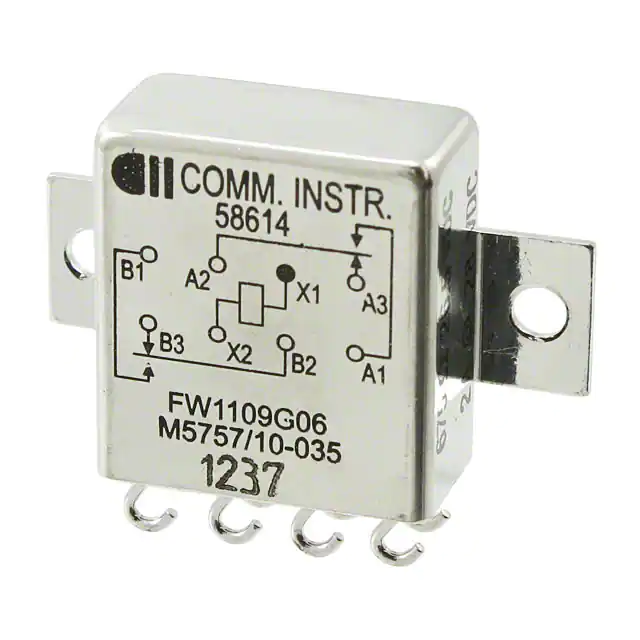

FW1109G06RELAY GEN PURPOSE DPDT 2A 26.5V |
2,443 |
|
Datasheet | FW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 39.3 mA | Non Latching | - | Solder Hook | - | - | 13.5 VDC | - | 5 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-5757/10 |
|
3SBC1537A2RELAY GEN PURPOSE DPDT 2A 26.5V |
1,370 |
|
Datasheet | 3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|

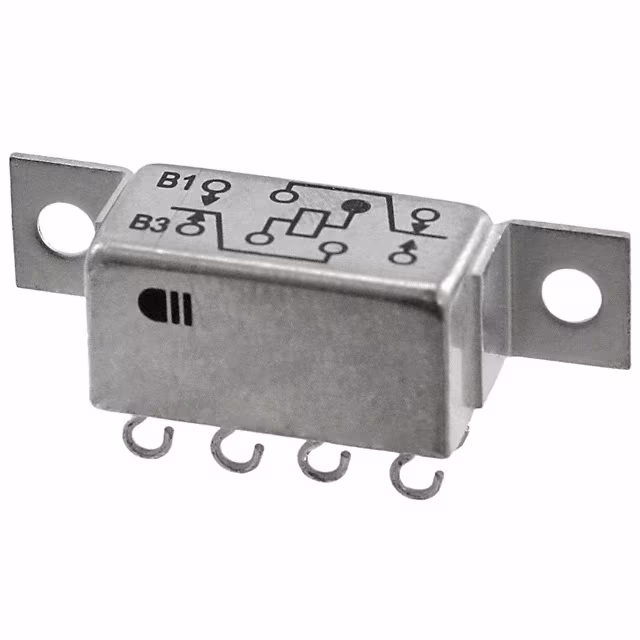

3SBC1521A2RELAY GEN PURPOSE DPDT 2A 26.5V |
4,086 |
|
Datasheet | 3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|

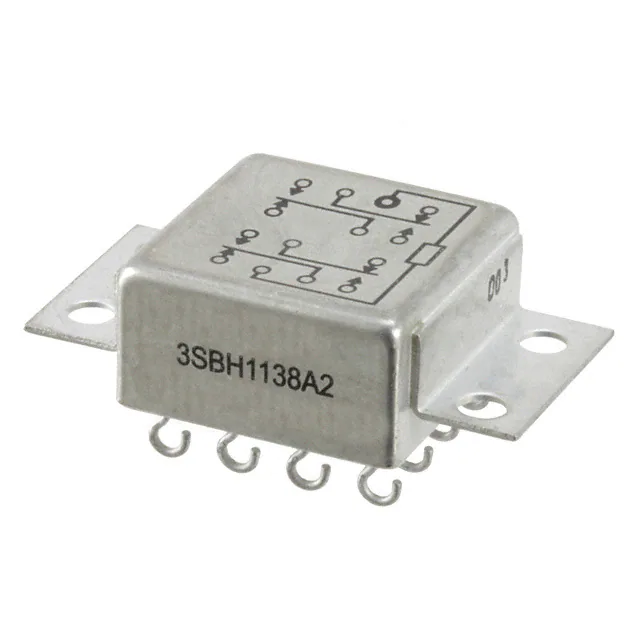

3SBH1138A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
1,240 |
|
Datasheet | 3SBH, CII | Bulk | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/14 |
|

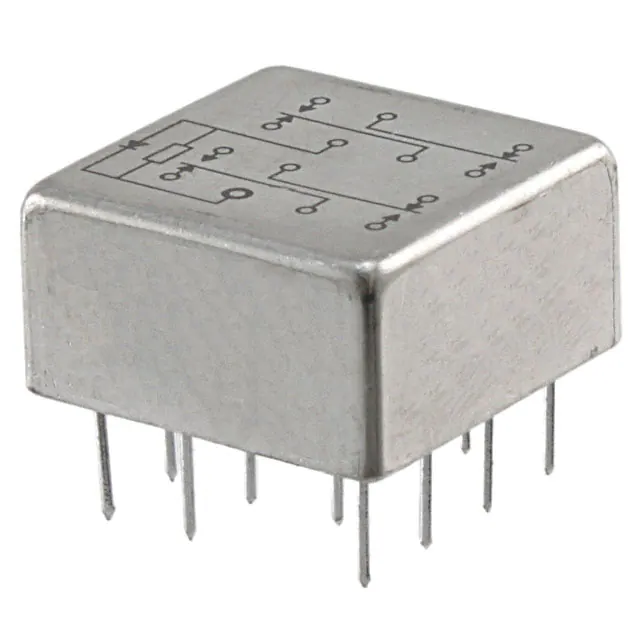

3SBH1231A2RELAY GEN PURPOSE 4PDT 2A 26.5V |
3,768 |
|
Datasheet | 3SBH, CII | Bulk | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/53 |
|
SSAW-6C-24BRELAY GEN PURPOSE 6PDT 2A 26.5V |
1,947 |
|
Datasheet | - | Bulk | Active | Through Hole | 26.5VDC | 6PDT (6 Form C) | 2 A | 28VDC - Nom | - | 68 mA | Non Latching | - | PC Pin | - | - | 15.5 VDC | 1.8 VDC | 5 ms | 5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|

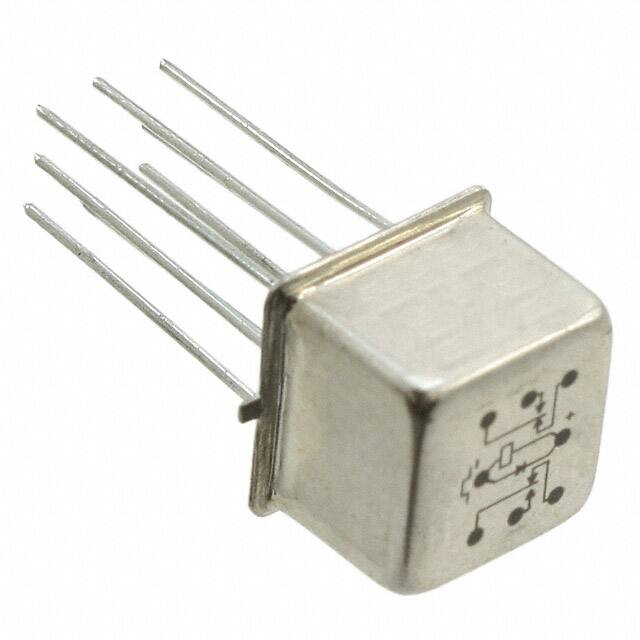

JMGACD-12MWRELAY GEN PURPOSE DPDT 1A 12V |
1,475 |
|
Datasheet | MGA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 30.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|

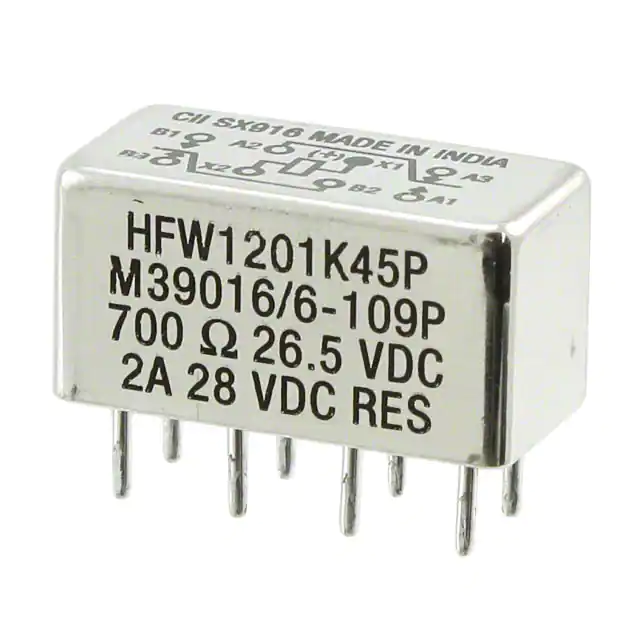

HFW1201K45PRELAY GEN PURPOSE DPDT 2A 26.5V |
4,160 |
|
Datasheet | HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
JMSWD-5XLRELAY GENERAL PURPOSE DPDT 1A 5V |
3,375 |
|
Datasheet | MSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
